Главная Каталог товаров HONDA EPC 125 cm³ - 349 cm³ HONDA NES @ 150 HONDA NES1503 @150 2003 HONDA (VIN: ZDCKF03A) F-2 METER

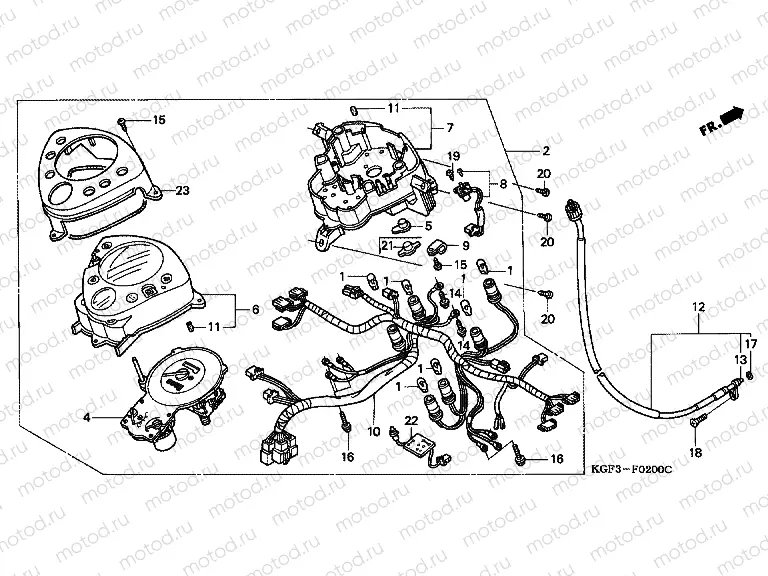

F-2 METER

F-2 METER
Например: 34908-MB9-871
1
34908-MB9-871
ULB, WEDGE BASE (T10) (1
228 ₽/шт
2
37100-KGF-901
METER ASSYCOMB*** NLA***
4
37110-KGF-901
METER COMPCOMB
5
37113-ML7-008
CAP
204 ₽/шт
6
37120-KGF-901
CASE ASSY., UPPER
7
37130-KGF-901
CASE ASSY., LOWER
8
37140-KGF-901
BRACKET ASSY(SW)
9
37121-ML7-671
Collier
244 ₽/шт
10
37223-KGF-901
SOCKET COMP
11
37304-198-901
RUBBER, CUSHION
244 ₽/шт
12
44830-KGF-900
Câble de compteur de vitesse
13
44831-KGF-900
CABLE COMPINNER
14
90035-166-008
Vis (spec)
236 ₽/шт
15
90109-MZ5-008
Vis
315 ₽/шт
16
90131-SF4-003
Vis
208 ₽/шт
17
91351-KEB-621
O-Ring
18
93700-050-180A
Screw, oval (5x18)
39 ₽/шт
19
93901-22320
Vis
39 ₽/шт
20
93903-35310
Vis
39 ₽/шт
23
37150-KGF-901
COVER ASSY., UPPER
