Главная Каталог товаров HONDA EPC 125 cm³ - 349 cm³ HONDA NES @ 150 HONDA NES1503 @150 2003 HONDA (VIN: ZDCKF03A) F-11 FRONT FORK

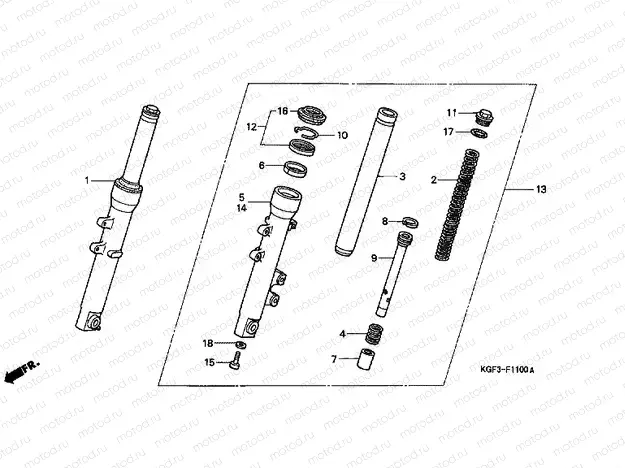

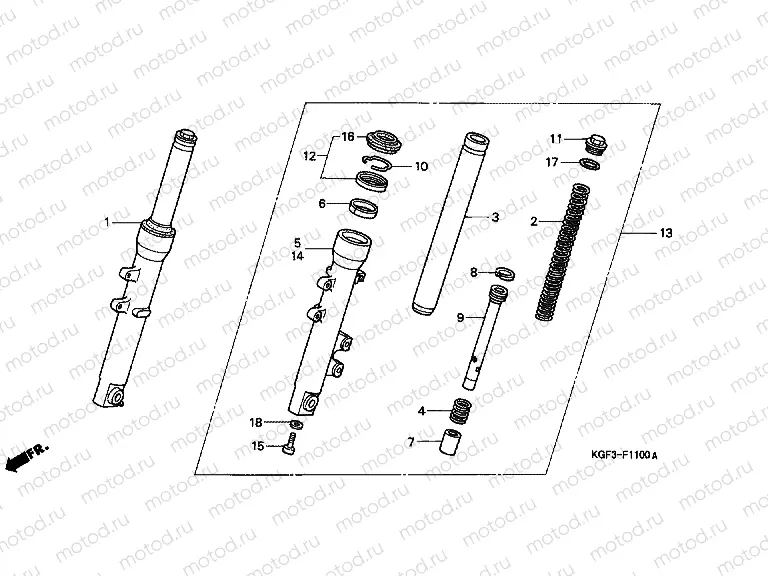

F-11 FRONT FORK

F-11 FRONT FORK
Например: 51400-KGF-893
1
51400-KGF-893
ORK ASSY., R. FR. (###)
46 529 ₽/шт
2
51401-KGF-892
SPRING, FR. CUSHION
3
51410-KGF-892
ork inner tube
4
51411-KGF-902
SPRING, FR. REBOUND
5
51420-KGF-903
CASE, R. BOTTOM
20 796 ₽/шт
6
51424-KGF-902
BUSH, GUIDE
7
51431-KGF-902
PIECE, OIL LOCK
1 310 ₽/шт
8
51437-KGF-902
RING, PISTON
676 ₽/шт
9
51440-KGF-892
PIPESEAT
10
51447-KGF-902
RING, SNAP
402 ₽/шт
11
51450-KGF-902
BOLT, FR. FORK
1 310 ₽/шт
12
51490-KGF-902
ork oil seal and dust seal kit for one tube
2 500 ₽/шт
13
51500-KGF-892
ORK ASSY., L. FR. (###)
40 316 ₽/шт
14
51520-KGF-902
CASE, L. BOTTOM
20 796 ₽/шт
15
90116-KGF-902
Vis
491 ₽/шт
16
91254-KGF-902
SEAL, DUST
1 436 ₽/шт
17
91356-KGF-902
O-Ring
18
51422-KGF-902
Rondelle
