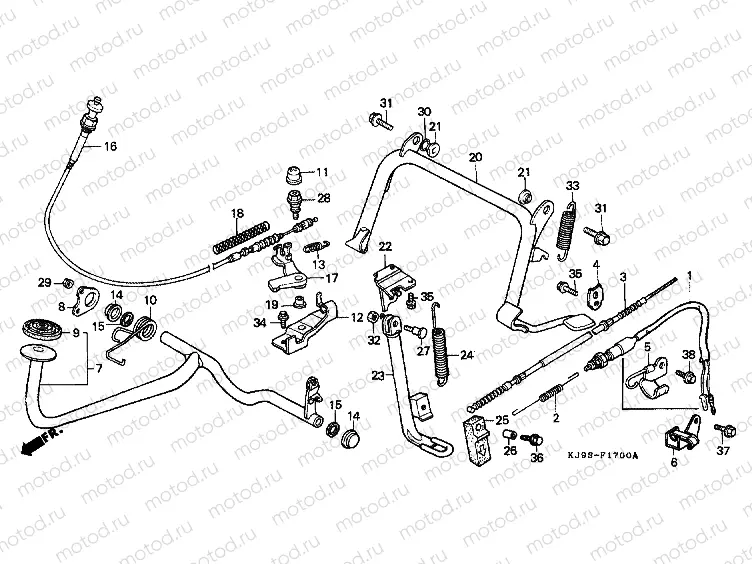

F-17 SUPPORT / BRAKE PEDAL (CH125E / G)

F-17 SUPPORT / BRAKE PEDAL (CH125E / G)
Например: 35350-KJ9-621
1
35350-KJ9-621
SW ASSY.REAR STO
2
35357-KJ9-000
SPRING, STOP SWITCH
3
43450-KN7-670
CABLE COMP.RR.BR
4
43451-KG8-000
STOPRR.BRK.CABLE
5
43453-KN7-670
CLAMPRR.BRAKE CA
7
46500-KJ9-670
Pédale de frein
9 127 ₽/шт
8
46503-KJ9-000
STAYPEDAL SHAFT
9
46505-KJ9-000
RUBBRAKE PEDAL
10
46507-KJ9-000
SPGBRAKE RETURN
11
46508-KG8-670
Cover dust
12
46508-KN7-670
PLATEBRAKE LOCK
13
46510-KJ9-000
SPRING B, BRAKE LOCK CABL
236 ₽/шт
14
46512-KJ9-000
BUSHBRAKE PEDAL
15
46513-KJ9-000
SEALBRAKE PEDAL
16
46620-KJ9-000
CABLEBRKE LOCK
17
46625-KJ9-000
PLPEDAL STOPPER
18
46627-KG8-670
SPG.BRK.RETURN
19
46633-KJ9-000
BUSHSTOPPER PL
370 ₽/шт
20
50500-KJ9-306
Béquille centrale
21
50504-KJ9-670
Béquille centrale
401 ₽/шт
22
50520-KJ9-700
STAYSIDE STAND
23
50530-KJ9-700
Béquille latérale
24
50532-KJ9-000
SPGSIDE STAND
25
50548-324-760
RUBBER, STAND
708 ₽/шт
26
50549-356-700
COLLAR, STAND RUBBER SETT
283 ₽/шт
27
90108-KJ9-700
SCREWSIDE STAND
28
90132-KJ9-000
Vis
29
90301-473-003
Nut
456 ₽/шт
30
91304-035-000
O-Ring
291 ₽/шт
31
93401-100-2007
Bolt-washer (10x20)
79 ₽/шт
32
94001-080-700S
Гайка
47 ₽/шт
33
95014-71402
SPRING D, MAIN STAND
165 ₽/шт
34
95701-060-1200
Bolt
58 ₽/шт
35
95701-060-1600
БОЛТ С ФЛАНЦЕМ
61 ₽/шт
36
95701-060-2507
БОЛТ
66 ₽/шт
38
96001-060-1200
БОЛТ
69 ₽/шт
