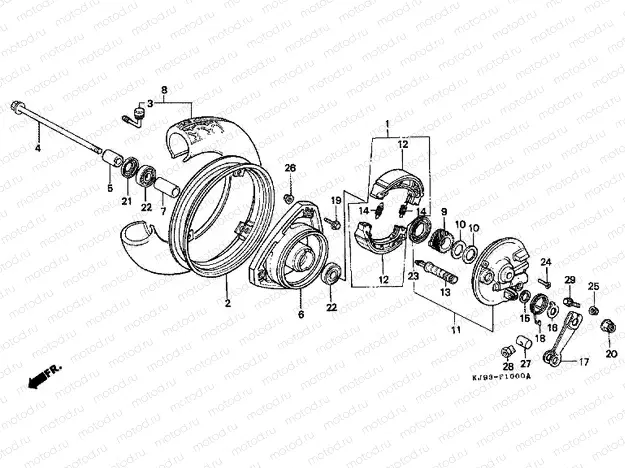

F-10 FRONT WHEEL (CH125E / G)

F-10 FRONT WHEEL (CH125E / G)
Например: 06430-GAG-505
1
06430-GAG-505
Brake shoe
3 793 ₽/шт
2
42701-KN7-670
RIMWHEEL
3
42753-KJ9-003
VALVE, RIM (BRIDGESTONE)
1 436 ₽/шт
4
44301-170-000
Front wheel axle (Front)
5
44311-GC8-000
Entretoise (Front wheel)
867 ₽/шт
6
44601-KG8-670
HUB COMP FR WHEEL
7
44620-GC8-000
Entretoise
450 ₽/шт
8
44710-KG8-671
No longer available
9
44806-GC8-003
EAR, SPEEDOMETER
10
44809-170-003
WASHER, SPEEDOMETER GEAR
269 ₽/шт
12
06430-GAG-505
Brake shoe
3 793 ₽/шт
13
45131-400-020
CAM, FR. BRAKE
1 415 ₽/шт
14
45133-028-000
SPRING, BRAKE SHOE
228 ₽/шт
15
45134-250-000
DUST SEAL, BRAKE CAM
204 ₽/шт
16
45145-121-710
INDICATOR, FR. BRAKE
354 ₽/шт
17
45410-121-710
ARMFR.BRAKE
975 ₽/шт
18
45435-121-010
SPRING, FR. BRAKE ARM RET
307 ₽/шт
19
90105-GM9-740
Vis
236 ₽/шт
20
90306-KF0-003
Nut (12 mm)
346 ₽/шт
21
90754-M9Q-000M2
Porvédő-tömítés 20x32x5
22
90912-GE1-003
Roulement
23
91251-GE1-003
Joint
24
93700-050-180A
Screw, oval (5x18)
39 ₽/шт
25
94050-06000
Nut
55 ₽/шт
26
90309-428-731
Nut
409 ₽/шт
27
95015-32001
JOINT B, BRAKE ARM
79 ₽/шт
28
95015-42000
NUT B, BRAKE ROD ADJUSTIN
157 ₽/шт
29
95701-060-2800
Bolt, flange, 6x28
63 ₽/шт
