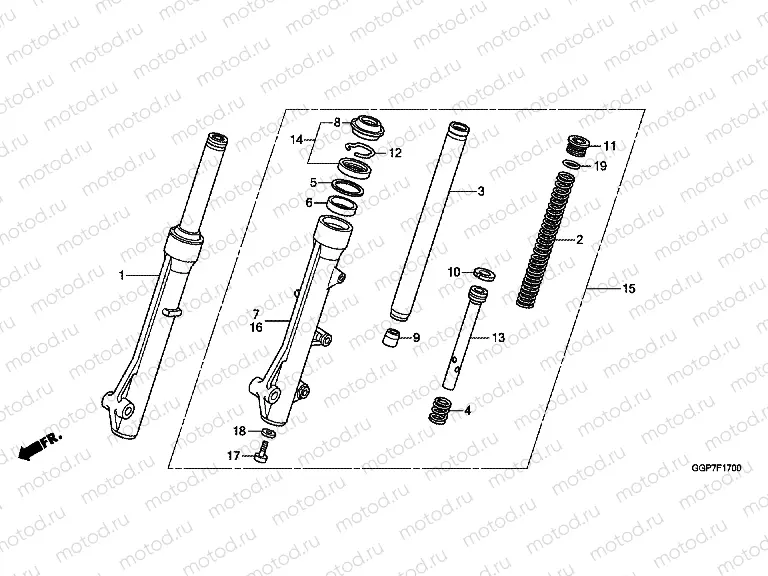

F-17 FRONT FORK

F-17 FRONT FORK
Например: 51400-KZL-951
1
51400-KZL-951
FORK ASSYR FR
2
51401-KZL-931
SPRING, FR. FORK
3
51410-KWW-662
PIPE COMP., FR. FORK (CHU
4
51412-KWW-662
SPRINGREBOUND
5
51413-KWW-662
RING, BACK UP (CHUANNAN A
6
51414-KWW-662
BUSH, GUIDE (CHUANNAN ABS
7
51420-KZL-951
CASE, R. BOTTOM
8
51425-KWW-662
Fork dust seal
10
51437-KWW-662
RING, PISTON (CHUANNAN AB
11
51454-KWW-662
SEAT BSPRING
12
51466-KWW-662
RING, OIL SEAL STOPPER (C
13
51470-KWW-662
PIPE, SEAT (CHUANNAN ABSO
14
51490-KWW-662
Fork oil seal and dust seal kit for one tube
15
51500-KZL-951
FORK ASSY., L. FR.
16
51520-KZL-951
CASE, L. BOTTOM
17
90116-KWW-662
Vis
18
90544-KRF-H71
WASHER, SPECIAL, 8MM (CHU
204 ₽/шт
19
91356-KWW-662
O-RING, 15.8X2.85 (CHUANN
