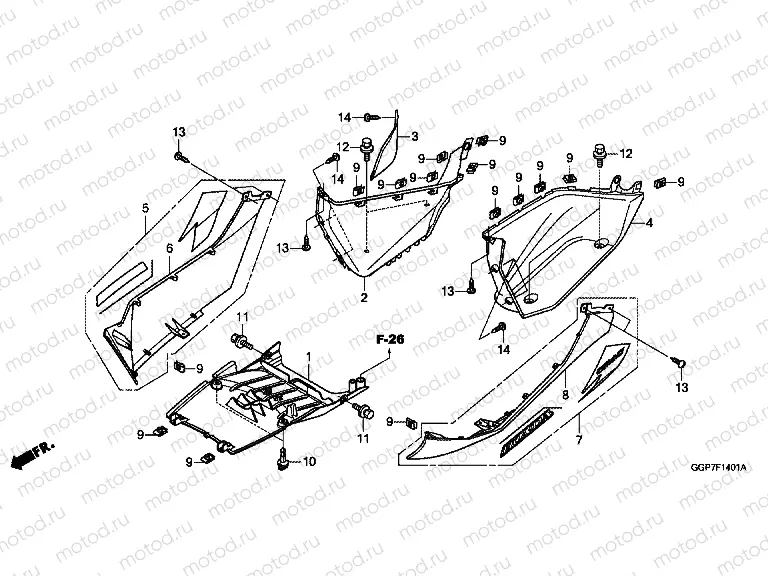

F-14-1 FLOOR FOOTREST (NSC502WH / T2)

F-14-1 FLOOR FOOTREST (NSC502WH / T2)
Например: 50611-KZL-930ZA
1
50611-KZL-930ZA
COVER, UNDER *NH1*
2
64480-KZL-950ZA
STEP, R. FLOOR *NH1*
3
64481-KZL-950ZA
ID, PLUG MAINTENANCE *NH
4
64580-KZL-950ZA
STEP, L. FLOOR *NH1*
5
84500-GGP-D40ZB
COVER SET, R. SIDE (WL) *
7
84600-GGP-D40ZB
COVER SET, L. SIDE (WL) *
9
90303-GGL-J01
Clip nuts (4 mm)
259 ₽/шт
10
90683-GAZ-003
Rivet - panel fixing
204 ₽/шт
11
93401-060-1208
Bolt-washer
55 ₽/шт
12
93404-060-2000
Bolt-washer, 6x20
55 ₽/шт
13
93903-34320
Vis
39 ₽/шт
14
93903-34380
Vis
44 ₽/шт
