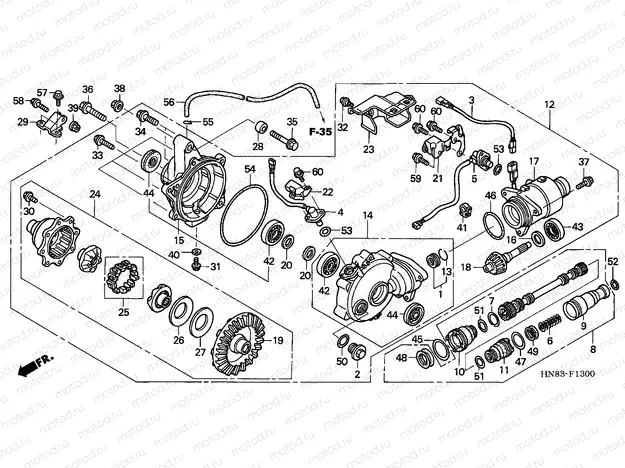

F-13 FRONT FINAL GEAR

F-13 FRONT FINAL GEAR
Например: 06910-HN8-000
1
06910-HN8-000
BEARING SET, NEEDLE
2
12361-035-000
Vis de vidange d'huile
3
32101-HN8-000
SUB HARNESS, FR. FINAL CL
4
37700-HN8-013
SENSOR ASSY., SPEED
5
37700-HN8-652
SENSOR ASSY., SPEED
6
40215-HM7-000
SPRING, SHAFT
7
40221-ME4-000
RING, STOPPER
348 ₽/шт
8
40400-HN8-000
SHAFT ASSY., FR. PROPELLE
9
40402-HN8-000
JOINT, FR. PROPELLER SHAF
10
40410-HN8-000
BOOT A, PROPELLER
11
40420-HM7-A00
BOOT B, PROPELLER
12
41400-HN8-A40
GEAR ASSYFR FINA
13
41405-HA7-670
RING, STOPPER
236 ₽/шт
14
41411-HN8-000
CASE SUB ASSYFR
15
41412-HN8-000
COVER SUB ASSYFR
16
41455-HM8-000
SHIM H, PINION GEAR (2.06
16
41461-HN0-670
SHIM M, PINION GEAR (2.36
16
41452-HM8-000
SHIM E, PINION GEAR (1.88
16
41458-HN0-670
SHIM K, PINION GEAR (2.24
16
41462-HN0-670
SHIM N, PINION GEAR (2.42
16
41451-HM8-000
SHIM D, PINION GEAR (1.82
16
41454-HM8-000
SHIM G, PINION GEAR (2.00
16
41456-HM8-000
SHIM I, PINION GEAR (2.12
16
41448-HM8-000
SHIM B, PINION GEAR (1.70
16
41457-HM8-000
SHIM J, PINION GEAR (2.18
16
41447-HM8-000
SHIM A, PINION GEAR (1.64
16
41453-HM8-000
SHIM F, PINION GEAR (1.94
16
41463-HN0-670
SHIM O, PINION GEAR (2.48
16
41459-HN0-670
SHIM L, PINION GEAR (2.30
16
41449-HM8-000
SHIM C, PINION GEAR (1.76
17
41500-HN8-003
CLUTCH ASSY., FR. FINAL
18
41520-HP0-A00
GEAR COMP., FR. PINION (1
19
41531-HN8-000
GEARFR RING
20
41649-HC5-000
SHIM S, DIFFERENTIAL CASE
20
41637-HC5-000
SHIM G, DIFFERENTIAL CASE
20
41632-HC5-000
SHIM B, DIFFERENTIAL CASE
20
41651-HC5-000
SHIM U, DIFFERENTIAL CASE
20
41642-HC5-000
SHIM L, DIFFERENTIAL CASE
20
41639-HC5-000
SHIM I, DIFFERENTIAL CASE
20
41644-HC5-000
SHIM N, DIFFERENTIAL CASE
20
41634-HC5-000
SHIM D, DIFFERENTIAL CASE
20
41641-HC5-000
SHIM K, DIFFERENTIAL CASE
771 ₽/шт
20
41646-HC5-000
SHIM P, DIFFERENTIAL CASE
20
41635-HC5-000
SHIM E, DIFFERENTIAL CASE
20
41652-HC5-000
SHIM V, DIFFERENTIAL CASE
20
41631-HC5-000
SHIM A, DIFFERENTIAL CASE
20
41647-HC5-000
SHIM Q, DIFFERENTIAL CASE
20
41653-HC5-000
SHIM W, DIFFERENTIAL CASE
20
41638-HC5-000
SHIM H, DIFFERENTIAL CASE
20
41640-HC5-000
SHIM J, DIFFERENTIAL CASE
20
41650-HC5-000
SHIM T, DIFFERENTIAL CASE
20
41648-HC5-000
SHIM R, DIFFERENTIAL CASE
20
41645-HC5-000
SHIM O, DIFFERENTIAL CASE
20
41636-HC5-000
SHIM F, DIFFERENTIAL CASE
20
41633-HC5-000
SHIM C, DIFFERENTIAL CASE
20
41643-HC5-000
SHIM M, DIFFERENTIAL CASE
21
41711-HN8-000
STAY COMPCLUTCH
22
41712-HN0-670
COVER, FR. SENSOR
23
41713-HN8-000
COVERFR FINAL CL
24
42400-HN8-003
DIFFERENTIAL ASSY.
25
42440-HN5-671
FOLLOWER SET, CAM
26
42453-HN7-003
SHIM C (1.5)
26
42457-HN7-003
SHIM G (1.9)
26
42456-HN7-003
SHIM F (1.8)
26
42452-HN7-003
SHIM B (1.4)
26
42455-HN7-003
SHIM E (1.7)
26
42451-HN7-003
SHIM A (1.3)
26
42454-HN7-003
SHIM D (1.6)
27
42461-HN5-671
SPRING, DIFFERENTIAL SIDE
28
50304-HN2-000
COLLAR, FR. GEAR CASE
29
50350-HN8-000
BRACKET, FR. GEAR CASE
30
90101-HN8-000
BOLT, 8X17
31
90109-371-000
BOLT, SEALING, 8MM
385 ₽/шт
32
90119-KCW-870
Vis
303 ₽/шт
33
90133-MB0-000
Vis
613 ₽/шт
34
90134-HA0-000
Vis
566 ₽/шт
35
90151-HC5-000
Vis
566 ₽/шт
36
90154-HC5-000
Vis
503 ₽/шт
37
90155-KY4-901
Vis
228 ₽/шт
38
90305-HC0-770
Nut (Lock, 10mm)
311 ₽/шт
39
90309-428-731
Nut
409 ₽/шт
40
90471-580-000
Gasket (8 mm)
157 ₽/шт
41
90690-GHB-641
CLIP, CABLE, 10MM
208 ₽/шт
42
91052-HC5-004
Roulement
42
91052-HC5-003
BEARING, RADIAL BALL, 29X
43
91062-HN8-013
BEARING, RADIAL BALL, 600
44
91252-HC5-003
Joint
45
91301-HM7-A00
BAND, BOOT (D32)
46
91301-MS9-003
O-Ring
346 ₽/шт
47
91302-HM7-A00
BAND, BOOT (D27)
675 ₽/шт
48
91302-HM7-003
SEAL A, RUBBER
49
91302-HN5-671
SEAL, PROPELLER
50
91302-001-020
O-Ring
381 ₽/шт
51
91303-HM7-A00
BAND, BOOT (D20)
52
91311-MB0-003
O-Ring
259 ₽/шт
53
91321-PF4-004
O-RING, 18.3X2.4 (NOK)
54
91353-HN8-003
O-RING, 139.5X2
55
95002-35000
CLIP, TUBE (C6.5)
39 ₽/шт
56
95005-356-3030
TUBE, 3.5X630 (95005-3500
57
95701-080-1607
Bolt (95701-08016-07)
63 ₽/шт
58
95801-080-3000
Болт
95 ₽/шт
59
96001-060-1200
БОЛТ
69 ₽/шт
60
96001-060-1607
Bolt, flange, 6x16
63 ₽/шт
