Главная Каталог товаров HONDA EPC 350 cm³ - 699 cm³ HONDA TRX 650 Fourtrax HONDA TRX650FA5 TRX650FA5 U 2005 HONDA (VIN: 1HFTE28U) F-11 FRONT ARM

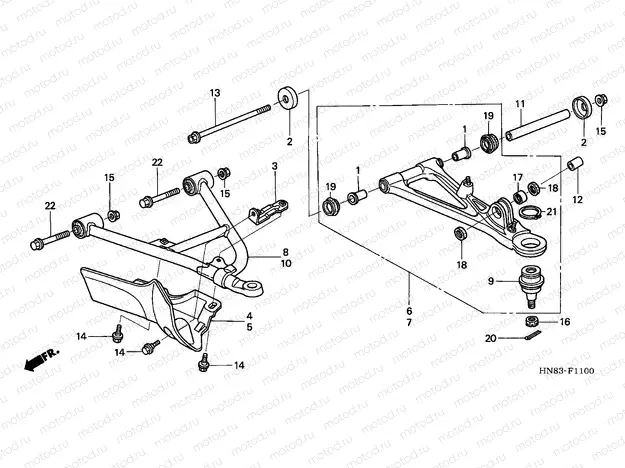

F-11 FRONT ARM

F-11 FRONT ARM
Например: 51108-HN2-000
1
51108-HN2-000
BUSH, UPPER ARM
2
51206-HN8-000
CAP, PIVOT, 10X32
3
51311-HN8-000
STAYFR GUARD
4
51315-HN2-000
GUARD, R. FR.
5
51316-HN2-000
GUARD LFRONT
6
51330-HN8-000
ARM SET, R. FR. UPPER
7
51340-HN8-000
ARM SET, L. FR. UPPER
8
51350-HN8-000
ARM ASSY RFR LOW
9
51375-HP5-601
JOINT A, ARM BALL
10
51360-HN8-000
ARM ASSY., L. FR. LOWER
11
51464-HN2-000
COLLAR, UPPER ARM
12
52486-HN2-000
COLLAR, RR. CUSHION
13
90106-HN8-000
Vis
802 ₽/шт
14
90111-KT1-780
Vis
404 ₽/шт
15
90305-HC0-770
Nut (Lock, 10mm)
311 ₽/шт
16
90310-HB9-000
NUT, CASTLE, 12MM
385 ₽/шт
17
91077-HN2-003
eedle bearing
18
91253-HN8-003
DUST SEAL, 16X24X4
19
91261-HN8-003
DUST SEAL, 24X32X7
20
94201-30180
PIN, SPLIT, 3.0X18
39 ₽/шт
21
94514-34000
CIRCLIP, EXTERNAL, 34MM
22
95817-100-6500
Болт
422 ₽/шт
