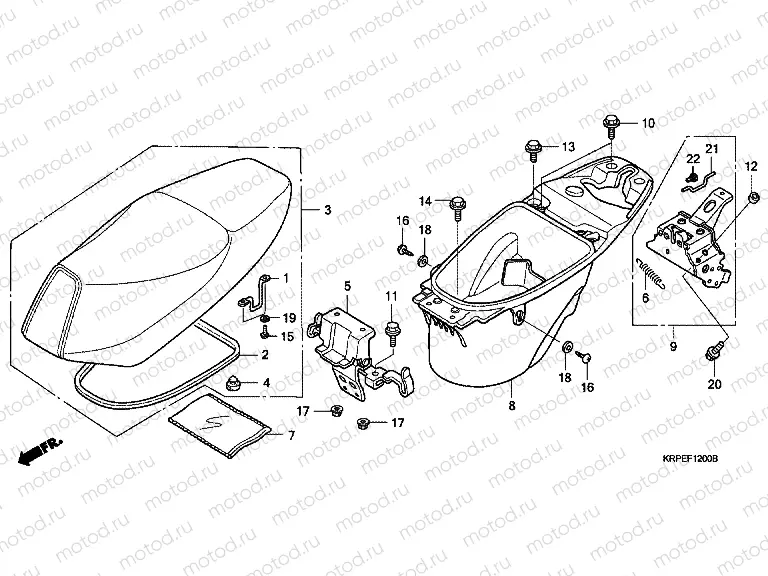

F-12 SEAT / LUGGAGE BOX

F-12 SEAT / LUGGAGE BOX
Например: 77102-KRP-900
1
77102-KRP-900
BAR, SEAT LOCK
2
77115-KRP-900
UBBERSEAL
3
77200-KRP-980ZA
SEAT COMP., DOUBLE *TYPE1
4
77206-KG8-900
RUBBER, SEAT SETTING
385 ₽/шт
5
77210-KRP-900
HINGE ASSYSEAT
6
77236-GBL-000
SPRING, SEAT CATCH
330 ₽/шт
7
77251-KPL-900
BAGSERVICE BOOK
8
81250-KRP-910
BOXLUGGAGE
9
83570-KRP-902
HINGE ASSY., BODY COVER
10
90111-KPL-900
BOLT, INNER COVER
267 ₽/шт
11
90112-KRP-900
Vis
12
90505-KRP-980
COLLAR10MM
13
93404-080-1607
Bolt-washer, 8x16
71 ₽/шт
14
93404-080-2007
Bolt-washer
71 ₽/шт
15
93500-040-100H
Болт
39 ₽/шт
16
93903-25380
Vis (5x16)
44 ₽/шт
17
94050-06000
Nut
55 ₽/шт
18
94103-05700
Rondelle
39 ₽/шт
19
94111-04800
WASHER, SPRING, 4MM
39 ₽/шт
20
95701-100-3000
Bolt
86 ₽/шт
21
77234-KRP-900
OD, SEAT CATCH
22
83566-KRP-900
COLLAR, SEAT CATCH
