Главная Каталог товаров HONDA EPC < 124 cm³ HONDA SCV 100 Lead HONDA SCV100F5 Lead 2005 HONDA (VIN: ME4JF11A) E-13 DRIVED PAGE

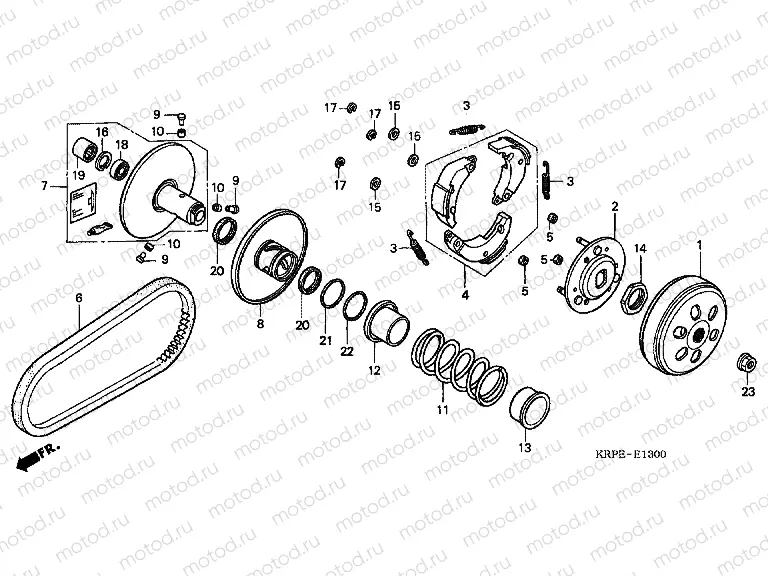

E-13 DRIVED PAGE

E-13 DRIVED PAGE
Например: 22100-KPL-900
1
22100-KPL-900
OUTER COMP., CLUTCH
2
22350-KPL-900
ATE COMP., DRIVE
3
22401-KPL-900
SPRING, CLUTCH
4
22535-KPL-902
WEIGHT SET, CLUTCH
5
22804-148-000
RUBBER, CLUTCH DAMPER
239 ₽/шт
6
23100-GCC-771
ourroie
5 852 ₽/шт
7
23205-KRP-982
FACE SET, DRIVEN
9 351 ₽/шт
8
23220-KRP-980
FACE COMP., MOVABLE DRIVE
9
23225-KPL-900
IN, GUIDE ROLLER
10
23226-KPL-900
ROLLER, GUIDE
11
23233-KRP-980
Spring
12
23237-KPL-900
COLLARSEAL
13
23238-KPL-900
COLLAR, SPRING
14
90202-KPL-900
Nut (spec. 28mm)
15
90442-KPL-900
Rondelle (6mm)
16
90601-KPL-900
CIRCLIPIN 24
17
90603-KPL-900
CIRCLIP, 5MM
18
91001-GA7-701
Roulement
925 ₽/шт
19
91103-GAZ-980
Needle bearing (17x25x18)
739 ₽/шт
20
91211-GK8-013
Joint
388 ₽/шт
21
91351-GR1-000
O-RING, 38.5X2
404 ₽/шт
22
91351-GR1-000
O-RING, 38.5X2
404 ₽/шт
23
94050-10000
Nut
79 ₽/шт
