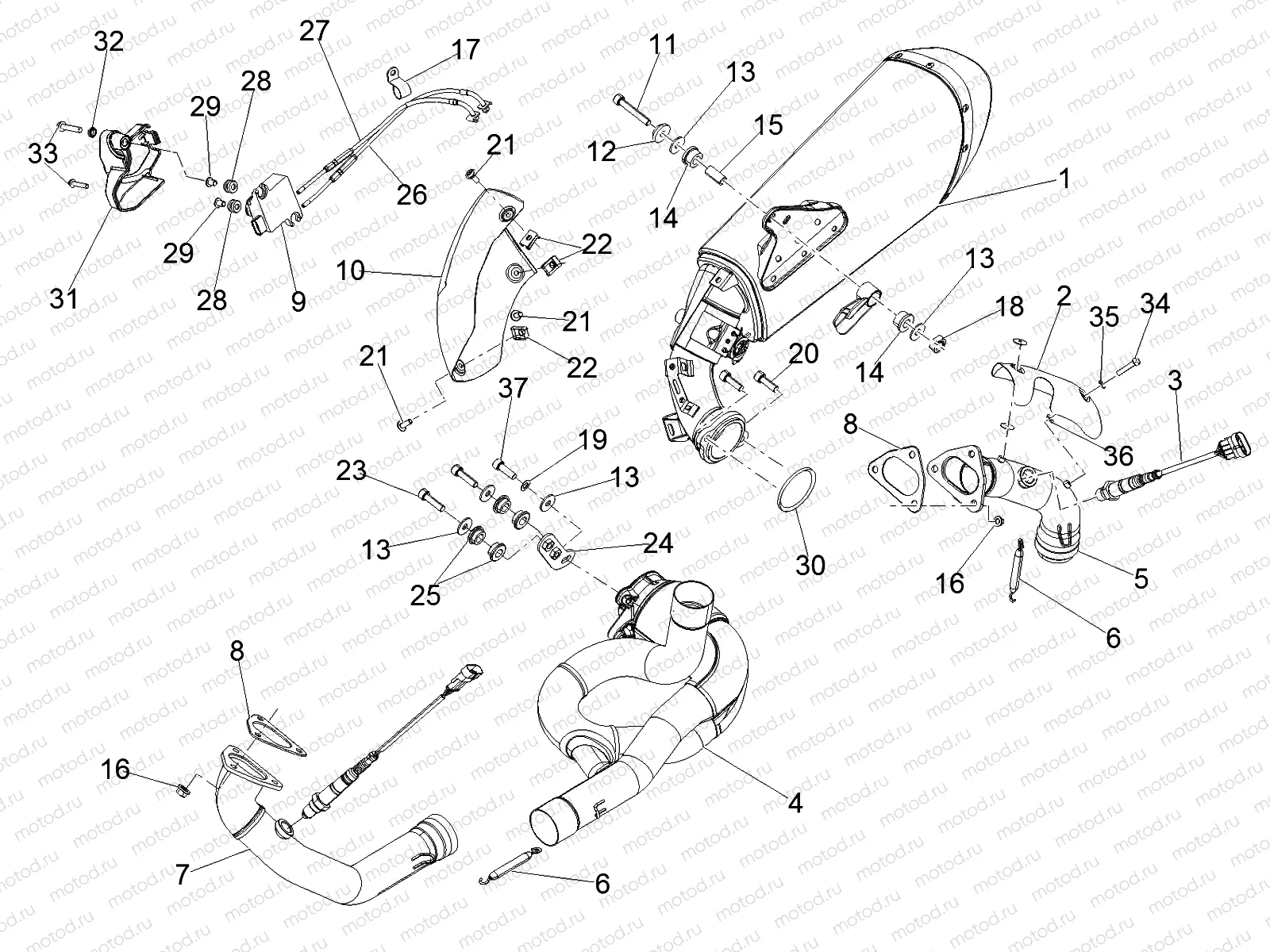

Exhaust pipe

Exhaust pipe
1
2B001782
Exhaust
1
2B001782
Exhaust
2
B045479
Exhaust pipe heat prot.
3
896110
Sonde lambda
4
B045247
Exhaust manifold
4
2B000653
Central exhaust manifold
5
B045248
rear exhaust manifold
5
2B000245
rear exhaust manifold
6
AP8121170
Spring
7
B045246
front exhaust manifold
8
895836
Exhaust gasket
9
2D000064
Exhaust valve actuator
10
B045215
Exhaust pipe protection
11
AP8150277
Vis
12
AP8134378
Silencer fixing bush
13
AP8150018
pc - Rondelle
14
AP8144071
Rubber exhaust
15
AP8121773
0 pc - Spacer *
16
GU92660021
Flanged nut M8
17
894704
Fairlead
18
AP8152300
Nut
19
AP8150376
pc - Rondelle (spring)
20
AP8150520
pc - Vis (M8x25)
21
AP8152246
Vis
22
254485
Clip nuts (M6)
23
AP8150107
pc - Vis (Right thread)
24
B045513
Manifold fixing bracket
25
AP8144558
Rubber spacer
26
B045249
Câble de gaz (closing)
27
B045250
Câble de gaz (opening)
28
AP8120223
pc - Damper
29
AP8121725
0 pc - Entretoise
30
B045427
Exhaust gasket
31
899524
exhaust valve actuator cover
32
AP8120253
pc - Entretoise
33
AP8152282
6 pc - Vis
34
AP8150505
Vis
35
AP8150535
pc - Rondelle (Safety)
36
AP8150158
pc - Rondelle (4,3x9x0,8)
37
2B002514
Pre-coated M8X25 SHC screw

Узлы для Caponord 1200 APRILIA CAPONORD (VIN: ZD4VK000, ZD4VKA, ZD4VK001, ZD4VKA01)
