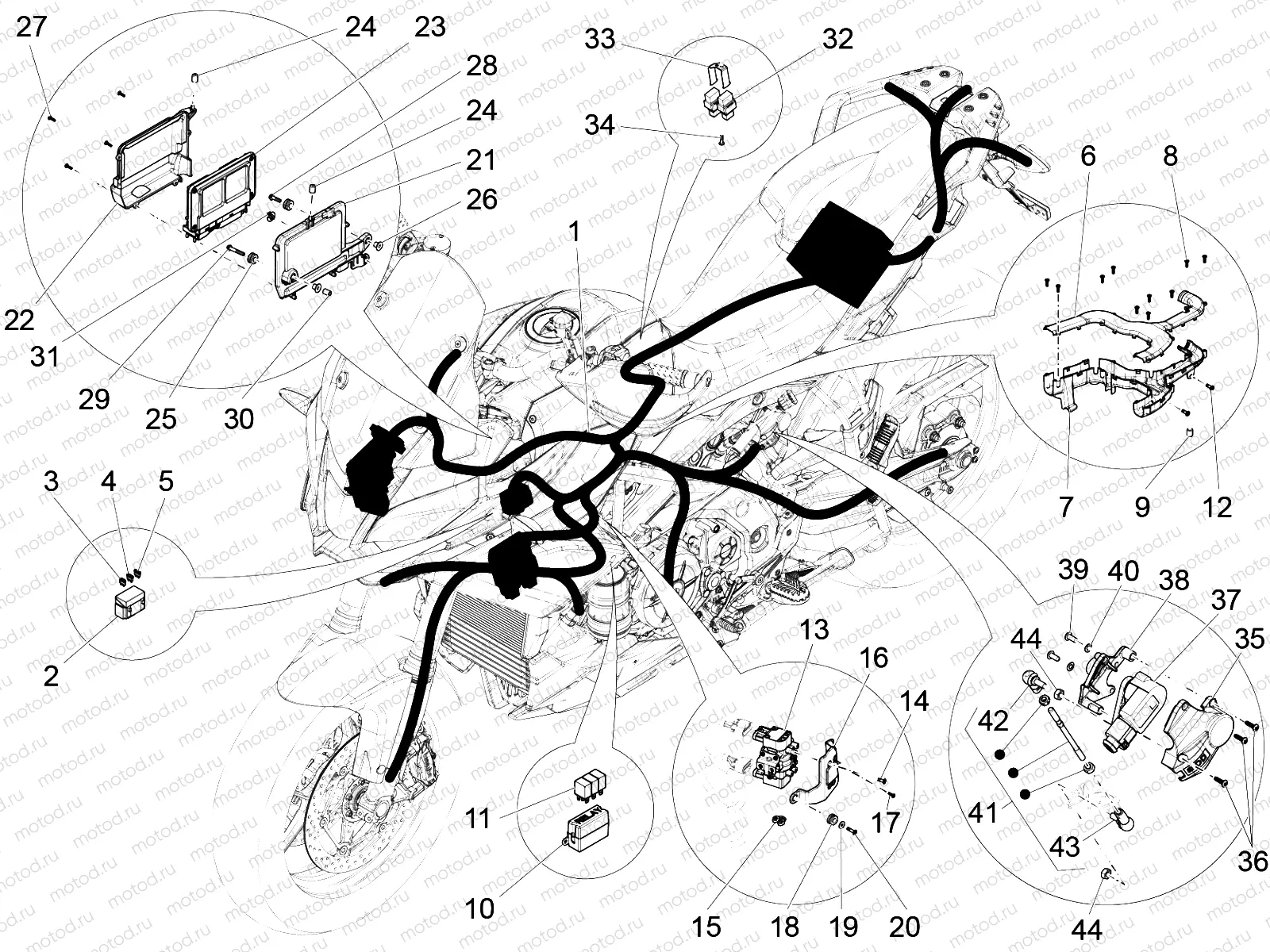

Central electrical system

Central electrical system
Например: 2D000001
1
2D000001
Harness wire
1
2D000002
Harness wire
2
894603
Fuse holder box
3
CM225610
Fusible (10A)
4
CM225607
Fusible (7,5A)
5
CM225615
Fusible (15A)
6
B046225
Cable duct cover
7
B046226
Cable duct base
10
AP8124293
Relais support
11
895907
Relay 20A
12
AP8150509
pc - Vis
13
B044414
Demand Sensor
15
854811
Rubber spacer
16
2B000128
Support bracket
19
AP8150382
pc - Rondelle
21
2B000149
Holder
22
2B000148
Control unit cover
23
CM228226
Electronic control unit ECU for injection
23
CM228228
Electronic control unit 78 KW
24
AP8120712
pc - Rubber spacer
25
AP8120030
Rubber spacer
26
AP8221023
5 pc - Entretoise
27
AP8150413
Vis
28
AP8152279
0 pc - Vis
29
AP8152282
6 pc - Vis
30
AP8221017
pc - Entretoise
31
890760
Instrument support
32
AP8224462
Relais - démarreur
33
2B000115
Relais support
34
AP8152329
0 pc - Vis
35
B046008
Rotating sensor cover
37
B045399
Rotary sensor
38
B046007
Sensor support
39
AP8152267
0 pc - Vis
40
AP8150272
pc - Curved spring washer 5,3x10x0,5
41
B046023
Reaction rod assy.
42
898397
Left ball joint M6
43
898396
RH ball joint M6
44
AP8150430
pc - Nut
