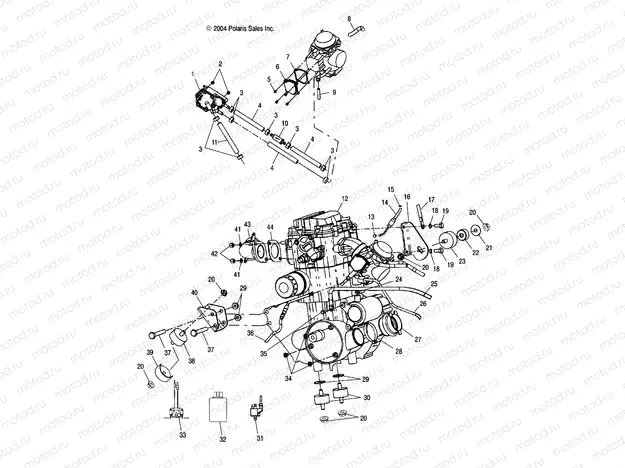

ENGINE MOUNTING - A05JD50AA/AB/AC (4995189518B01) | ENGINE MOUNTING - A05JD50AA/AB/AC (4995189518B01)

ENGINE MOUNTING - A05JD50AA/AB/AC (4995189518B01) | ENGINE MOUNTING - A05JD50AA/AB/AC (4995189518B01)

Например: 2520227

1

2520227

ASM-PUMP FUEL

2

7546601

NUT NYLOK

3

7080003

CLAMP HOSE

4

8450117-250

FUEL HOSE-250 CM

5

3130535

Vis

6

3130511

Couvrir

7

3130512

O-Ring

8

8450003-1525

LINE FUEL 1/4 ID(1525 CM.)

9

8360009-600

LINE FUEL 1/8 ID 600 CM.

10

2530009

Filtre à carburant (IN-LINE)

11

8450040-600

LINE FUEL 1/4 ID(600 CM.)

12

3089548

Engine, Short Block NOTE: The Short Block assembly contains a crankcase assembly, cylinder & cylinder head assembly and a piston & crankshaft assembly. Prior authorization is required for warranty

13

3130543

GUIDE CABLE

14

7080967

CABLE-THROTTLE 1/4 TURN 4 STK

15

5410193

O-Ring

16

5242936-067

MOUNT,ENGINE,TOP,BLK

17

4010132

CABLE GND-ENGINE

18

7552901

Rondelle (Lock)

19

7512315

Vis

20

7547108

Nut

21

7555823

Rondelle

22

5132007

SPACER-MOTOR MNT TOP

23

3022075

ISOLATOR-3/8-24M/M 60DURO

24

3083649

NUT FLANGE

25

4010095

CABLE BATT/ENG. BLK.

26

4010093

CABLE SOL/STARTER

27

5412487

BOOT-CLUTCH INTAKE

28

7080511

CLAMP NARROW BAND

29

7555815

WASHER FLAT

30

3022076

ISOLATOR-3/8-24M 3/8-16M 60DUR

31

3089260

ASM-IGNITION COIL

32

3089238

CDI SYSTEM

33

4011335

SWITCH-MAGNETIC

34

3084205

ASM. SCREW & WASHER

35

3082038

BOLT&WASHER ASM.

36

7081008

CABLE-CHOKE FRICTION 40

36

7081008

CABLE-CHOKE FRICTION 40

37

7515417

Vis

38

3024012

ISOLATOR-3/8-24M/M 60DURO

39

5245043

BRKT-TORQUE STOP PLTD

40

5242818-067

MOUNT,LOW.FR.ENGINE,BLK.

41

3080530

Rondelle (Lock)

42

3087199

Nut

43

1260978-489

WELD-MANIFOLD BLK

44

3085075

Exhaust gasket
