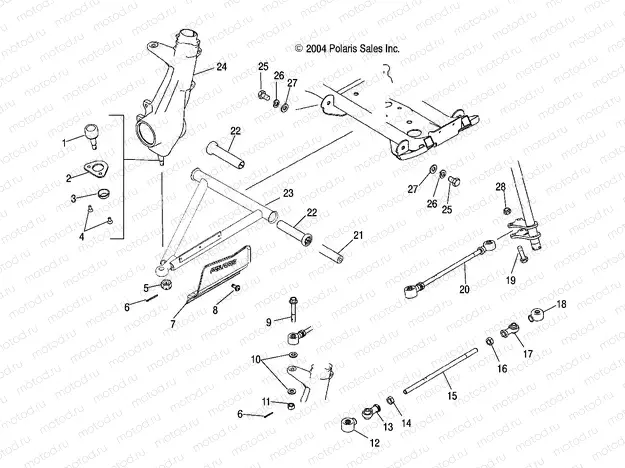

A-ARM/STRUT MOUNTING - A05JD50AA/AB/AC (4995189518B10) | A-ARM/STRUT MOUNTING - A05JD50AA/AB/AC (4995189518B10)

A-ARM/STRUT MOUNTING - A05JD50AA/AB/AC (4995189518B10) | A-ARM/STRUT MOUNTING - A05JD50AA/AB/AC (4995189518B10)

Например: 7061158

1

7061158

BALL-JOINT GREASELESS STRUT

2

5211121

BRKT BALL JOINT

3

5412658

BOOT-BALLJOINT GREASELESS STRT

4

7512284

BOLT SOCKET

5

7542438

NUT CASTLE

6

7661203

PIN COTTER

7

5435028-070

SHIELD-CV FRONT BASIC LH BLK

7

5435029-070

SHIELD-CV FRONT BASIC RH BLK

8

7512084

Vis

9

7517909

BOLT-M10X1.25X65 HX WASH HD

10

7556099

WASHER

11

7547177

NUT-M10X1.25-HX-LOCK-Y

12

5412929

BOOT-SEAL ROD END 10MM

13

7061138

ROD-END 10MM 1/2-20LH 42 DEG

14

7547028

NUT JAM LH

15

5020926

ROD TIE

16

7542711

NUT-JAM

17

7061139

ROD-END 3/8 1/2-20RH 44DEG

18

5412928

BOOT-SEAL ROD END 1/2 IN

19

7515415

Vis

20

1822852

ASM-TIE ROD 1/2-20X13.4

21

5133806

SHAFT-A-ARM

22

5436973

BUSHING-A-ARM LONG 102.36MM(10

23

2202280

KIT-A-FRAME LH(1541868)

23

2202281

KIT-A-FRAME RH(1541869)

24

LR--

CALIPER, BRAKE, RH

25

7512492

Vis

26

7552603

Rondelle (Lock)

27

7555832

Rondelle

28

7542439

Nut (SELF-LOCKING)
