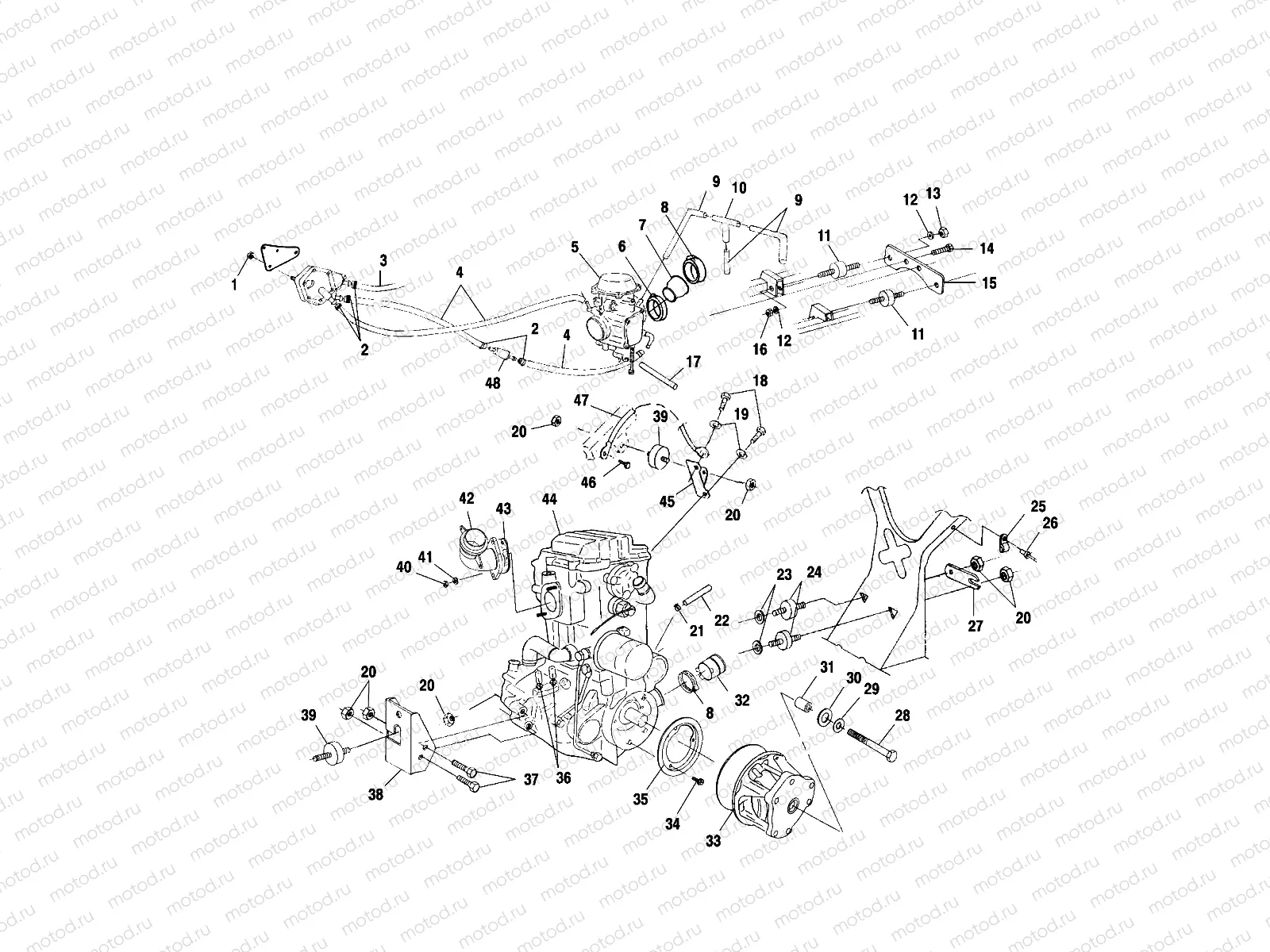

Главная Каталог товаров Polaris EPC 2001 Polaris ATV Polaris 2001 SPORTSMAN 400 (A01CH42AC) Polaris 2001 ATV ENGINE MOUNTING - A01CH42AA (4964436443A013) | ENGINE MOUNTING - A01CH42AA (4964436443A013)

ENGINE MOUNTING - A01CH42AA (4964436443A013) | ENGINE MOUNTING - A01CH42AA (4964436443A013)

ENGINE MOUNTING - A01CH42AA (4964436443A013) | ENGINE MOUNTING - A01CH42AA (4964436443A013)

Например: 7546601

1

7546601

NUT NYLOK

2

7080003

CLAMP HOSE

3

5811490

HOSE,(.25 IDX1.75"LG.)

4

8450040-600

LINE FUEL 1/4 ID(600 CM.)

6

7080413

CLAMP BAND NARROW

7

5410995

BOOT,CARB

8

7080511

CLAMP NARROW BAND

9

8450003-1525

LINE FUEL 1/4 ID(1525 CM.)

10

7052075

FITTING TEE

11

3110032

MOUNT RUBBER

12

7552605

Rondelle

13

7542105

NUT HEX

15

5211626-067

STRAP CARB.MT BLK.

16

7547069

NUTSERT HEX

17

8360009-600

LINE FUEL 1/8 ID 600 CM.

18

7512315

Vis

19

7552901

Rondelle (Lock)

20

7547108

Nut

21

7080694

CLAMP HOSE SPRING

23

7555815

WASHER FLAT

24

3022072

ISOLATOR-3/8-24M 3/8-16M 60DUR

25

7080539

CLAMP NYLON CABLE

26

7621462

RIVET

27

5224658-067

STRAP FRAME SUPPORT BLK

28

7512566

Vis

29

7575202

Rondelle (Lock)

30

5210748

Rondelle

31

5430261

BUSHING

32

5410421

BOOT CLUTCH INTAKE

34

LR--

CALIPER, BRAKE, RH

36

7080474

CLAMP HOSE

37

7515417

Vis

38

5241150-067

MOUNT,FR.ENGINE,BLK.

39

3024012

ISOLATOR-3/8-24M/M 60DURO

42

1261688-489

WELD-MANIFOLD 1.625 BLK

44

3087023

ENGINE-EH42PLE05-SB (EH42PLE05) NOTE: The Short Block assembly contains a crankcase assembly, cylinder & cylinder head assembly and a piston & crankshaft assembly. Prior authorization is required f

45

5241453

MOUNT-ENGINE TOP PLTD

46

7512232

Vis

47

4010132

CABLE GND-ENGINE

48

2530009

Filtre à carburant (IN-LINE)
