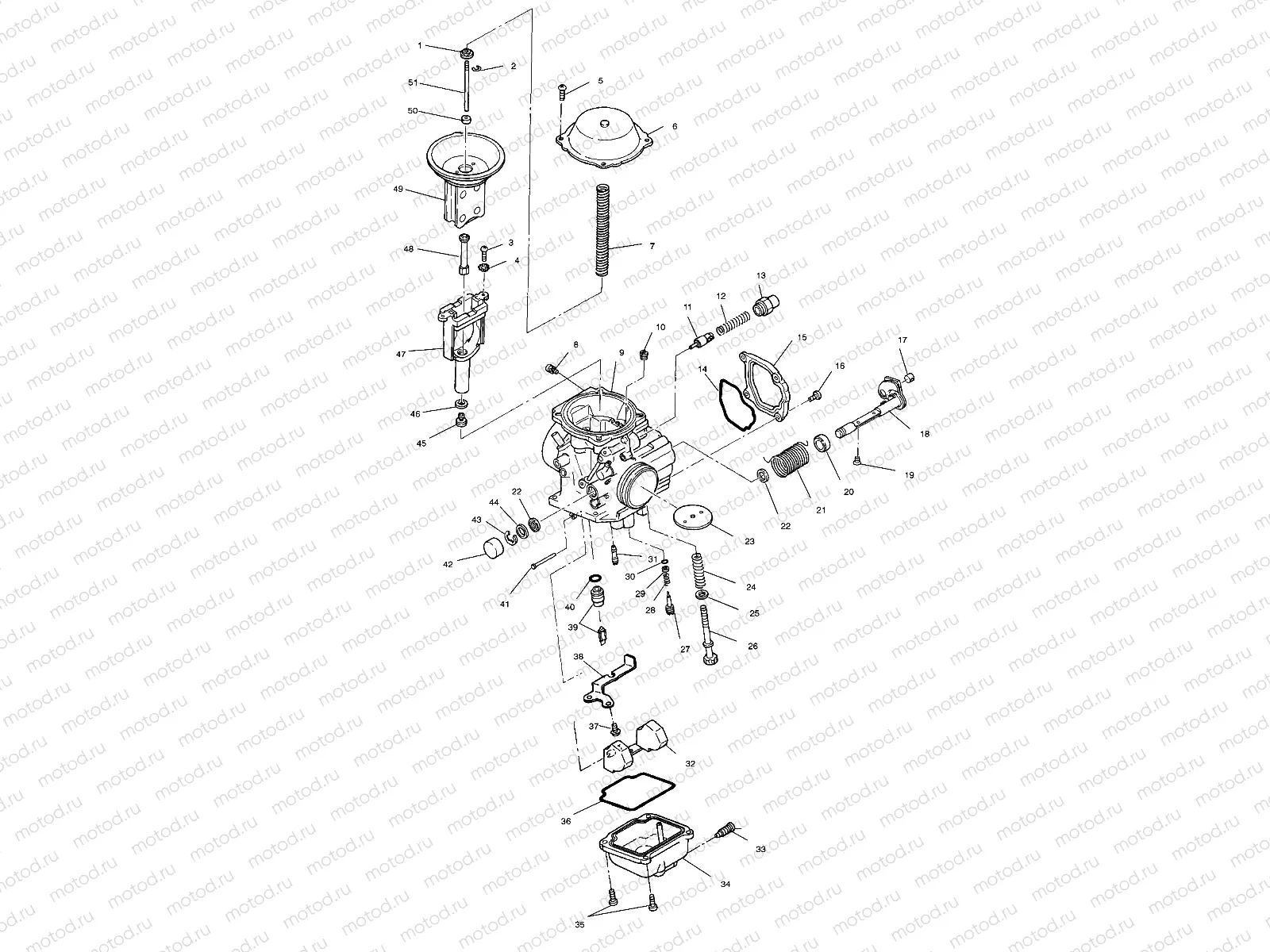

Главная Каталог товаров Polaris EPC 2001 Polaris ATV Polaris 2001 SPORTSMAN 400 (A01CH42AC) Polaris 2001 ATV CARBURETOR - A01CH42AA (4964436443D007) | CARBURETOR - A01CH42AA (4964436443D007)

CARBURETOR - A01CH42AA (4964436443D007) | CARBURETOR - A01CH42AA (4964436443D007)

CARBURETOR - A01CH42AA (4964436443D007) | CARBURETOR - A01CH42AA (4964436443D007)

Например: 3130507

1

3130507

RING

2

3130508

E-RING

3

3130541

Vis

4

3130540

WASHER SPRING

5

3130924

Vis

6

3130503

ASM. COVER

7

3130505

Spring

8

3084205

ASM. SCREW & WASHER

9

3131310

ASM-CARBURETOR (Incl. 1-13,18-51)

10

3130625

JET AIR PILOT #160

11

3130539

PLUNGER ASM.

12

3130538

Spring

13

3130199

HOLDER GUIDE

14

3130512

O-Ring

15

3130511

Couvrir

16

3130535

Vis

17

3130543

GUIDE CABLE

18

3130513

SHAFT ASM THROTTLE

19

3130501

Vis

20

3130514

RING

21

3130589

Spring

22

3130515

SEAL

23

3130502

VALVE THROTTLE 100

24

3130544

Spring

25

3130545

RING

26

3130546

SCREW ADJ

27

3130524

ADJUSTER

28

3130525

Spring

29

3130523

Rondelle

30

3130522

O-Ring

31

3130624

JET PILOT #40

32

3130529

FLOAT ASM.

33

3130521

Vis

34

3130590

FLOATBODY ASM.

35

3130520

Vis

36

3130532

Gasket - float chamber

37

3130591

Vis

38

3130594

PLATE

39

3131360

VALVE-NEEDLE 1.5(PUSH IN)

40

3130533

O-Ring

41

3130361

PIN FLOAT

42

3130519

CAP

43

3130518

E-RING

44

LR--

CALIPER, BRAKE, RH

45

3131144

JET MAIN #167.5

46

3130014

WASHER

47

3130504

JETBLOCK ASM.

48

3131311

JET-NEEDLE (Q-0)

49

3130732

DIAPHRAGM ASM.

50

3130752

RING

51

3131312

NEEDLE-JET 5F14
