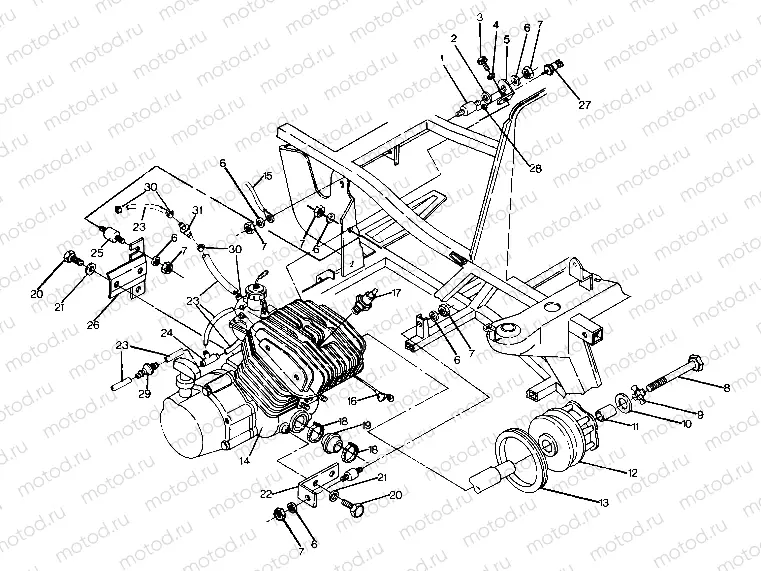

Главная Каталог товаров Polaris EPC 1989 Polaris ATV Polaris 1989 BIG BOSS (W899627) Polaris 1989 ATV Engine Mounting (4916361636006A) | Engine Mounting (4916361636006A)

Engine Mounting (4916361636006A) | Engine Mounting (4916361636006A)

Engine Mounting (4916361636006A) | Engine Mounting (4916361636006A)

Например: 3022067

1

3022067

MOUNT MOTOR

2

5430802

INSULATOR MOTOR MT.

3

7515321

Vis

4

7552901

Rondelle (Lock)

5

5220471

MOUNT,ENG.,TOP Substituted by 5220471-067

6

7555801

Rondelle

7

7542403

NUT LOCK

8

7512566

Vis

9

7575202

Rondelle (Lock)

10

5210748

Rondelle

11

5430261

BUSHING

12

1321976

ASM-DRIVE CLUTCH WIDE

13

5410411

SEAL,ENG./CLUTCH

14

1211460

ENG.EC25PF-05(ATV) [No Longer Available]

15

4010067

CABLE,GROUND/ENG.

16

5410346

INSUL.CABLE SOL.

17

3070156

Bougie d'allumage

18

7080346

CABLE, TIE

19

5410421

BOOT CLUTCH INTAKE

20

7512490

Vis

21

7552603

Rondelle (Lock)

22

5220881

"""PLATE FR.MTR.MT."""

23

8360009-600

LINE FUEL 1/8 ID 600 CM.

24

7052005

FITTING TEE

25

3022068

ISOLATOR-3/8-24M/M 60DURO

26

5241056-067

MT R.A/C(ATV) BLK.

27

4110092

THERMOSTAT Substituted by 4010211

28

7541602

NUT, NYLOCK(10)

29

7051011

VALVE CHECK

30

7080236

CLAMP-HOSE

31

2530009

Filtre à carburant (IN-LINE)
