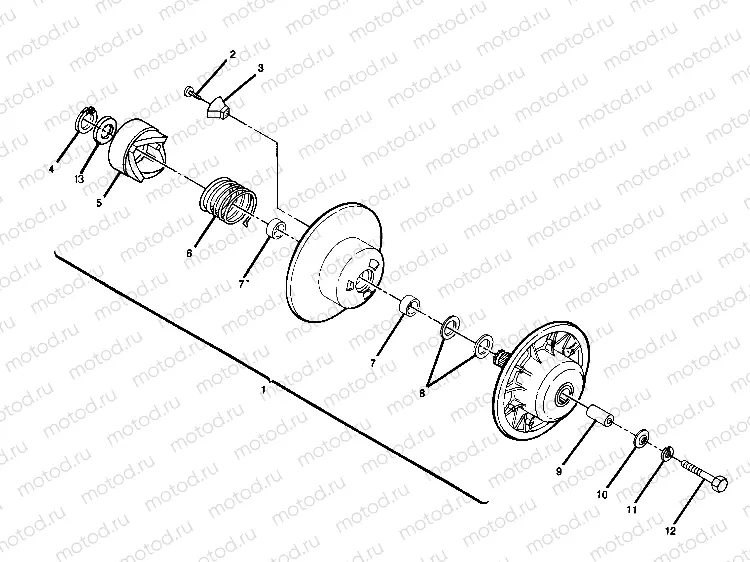

Driven Clutch Assembly (4916361636031A) | Driven Clutch Assembly (4916361636031A)

Driven Clutch Assembly (4916361636031A) | Driven Clutch Assembly (4916361636031A)
Например: 1322180
1
1322180
ASM. CLUTCH DRIVEN HVY RET
2
7511854
Vis
3
5450873
BUTTON (3)
4
7714401
RETAINING RING
5
5630355
RAMP,STATIONARY [No Longer Available]
6
7041198
SPRING CLUTCH (RED)
7
3576504
BUSHING MOVEABLE 1/2 INCH
8
7556804
WSHR-1.505X2.00X.030-Y
9
5211041
SPACER, DRIVEN
10
5220646
WASHER DOMED
11
7552901
Rondelle (Lock)
12
7515327
Vis
13
7555782
Rondelle
