Главная Каталог товаров KTM EPC 1994 KTM Offroad KTM 1994 MX KTM 1994 Offroad 250 SX M/Ö (630240) [EU] KTM ENGINE CASE

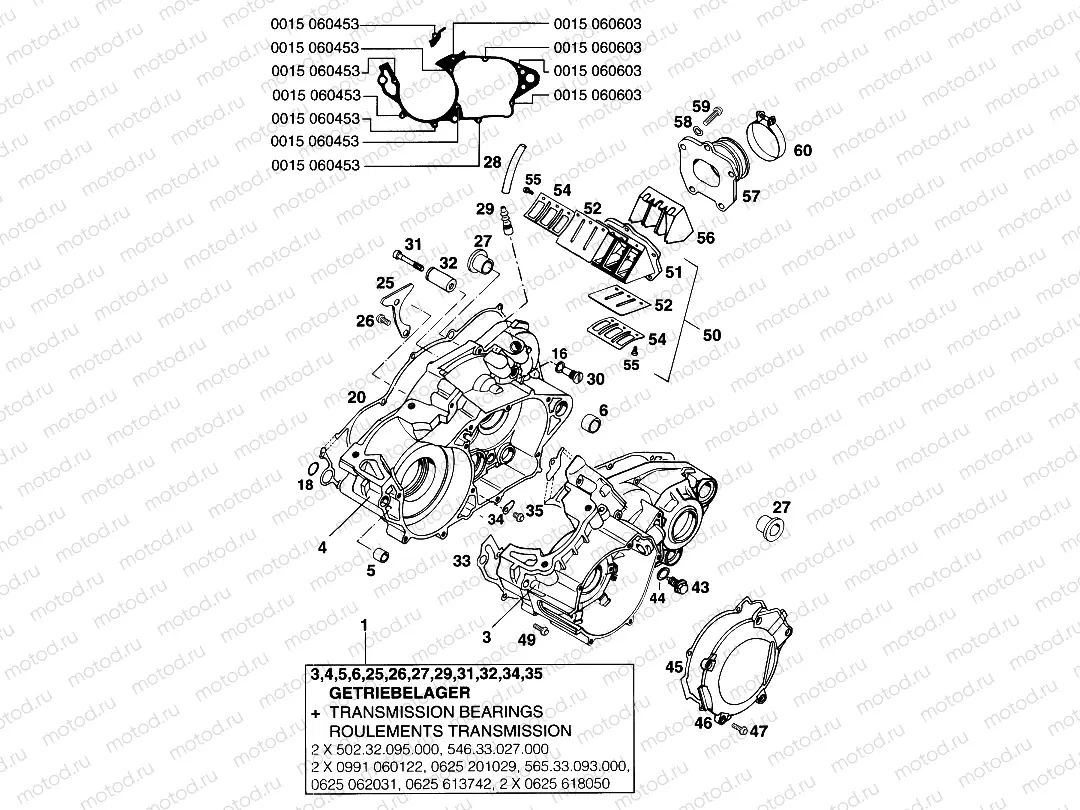

ENGINE CASE

ENGINE CASE
Например: 54630100000
0
54630100000
Pochette de joints moteur
1
54630000644
% ENGINE CASE CPL.'94
5
54630027000
DOWEL BUSHING 13,8X11X12
6
50130027000
DOWEL 19 X15,1X12
16
58038032110
CU-SEAL RING 9 X 13 X1
18
0770140200
O-RING 14,00X2,00
20
54630025100
Gasket - clutch cover
25
54630017000
RETAINING PLATE
26
0912060123
AH SCREW DIN0912-M 6X12
27
50130010000
CRANK CASE BUSH
28
55007016001
PVC-HOSE 7X10 PER METER
29
54630022000
BLEEDER FLANGE '94
30
54530001150
FLAT HEAD SCREW WITH PIN
31
50030079000
CYL. HEAD BOLT M 7X40 WS=10
32
54633018400
BUSHING PIN
33
54630039200
CASE GASKET 0,5MM 250-380'98
34
54634049000
RETAINING PLATE
35
0912060103
AH SCREW DIN0912-M 6X10
43
58030021100
Vis de vidange d'huile
44
58038022000
Rondelle
45
54630040300
IGNITION COVER GASKET '92
46
54630002200
IGNITION COVER '95
47
0912050123
AH SCREW DIN0912-M 5X12
49
0025060456
Vis
49
0025060606
Vis
50
54630051044
% REED VALVE HOUSING 250'93
50
54630351044
REED VALVE HOUSING 300CC CPL
51
54430051000
* REED VALVE CASE LOOSE
52
50230052000
REED VALVE CARBON 125
52
54630052000
* REED VALVE 250 '93
54
54630053000
STOP PLATE TOP
55
0084040083
Vis
56
54630054000
VELOCITY INSERT
57
54630050000
Pipe d’admission
58
0137060000
SPRING WASHER DIN0137-B 6
59
0025060256
Vis
59
0912060253
AH SCREW DIN0912-M 6X25
60
54330061000
CLAMP 52/12 GEMI
