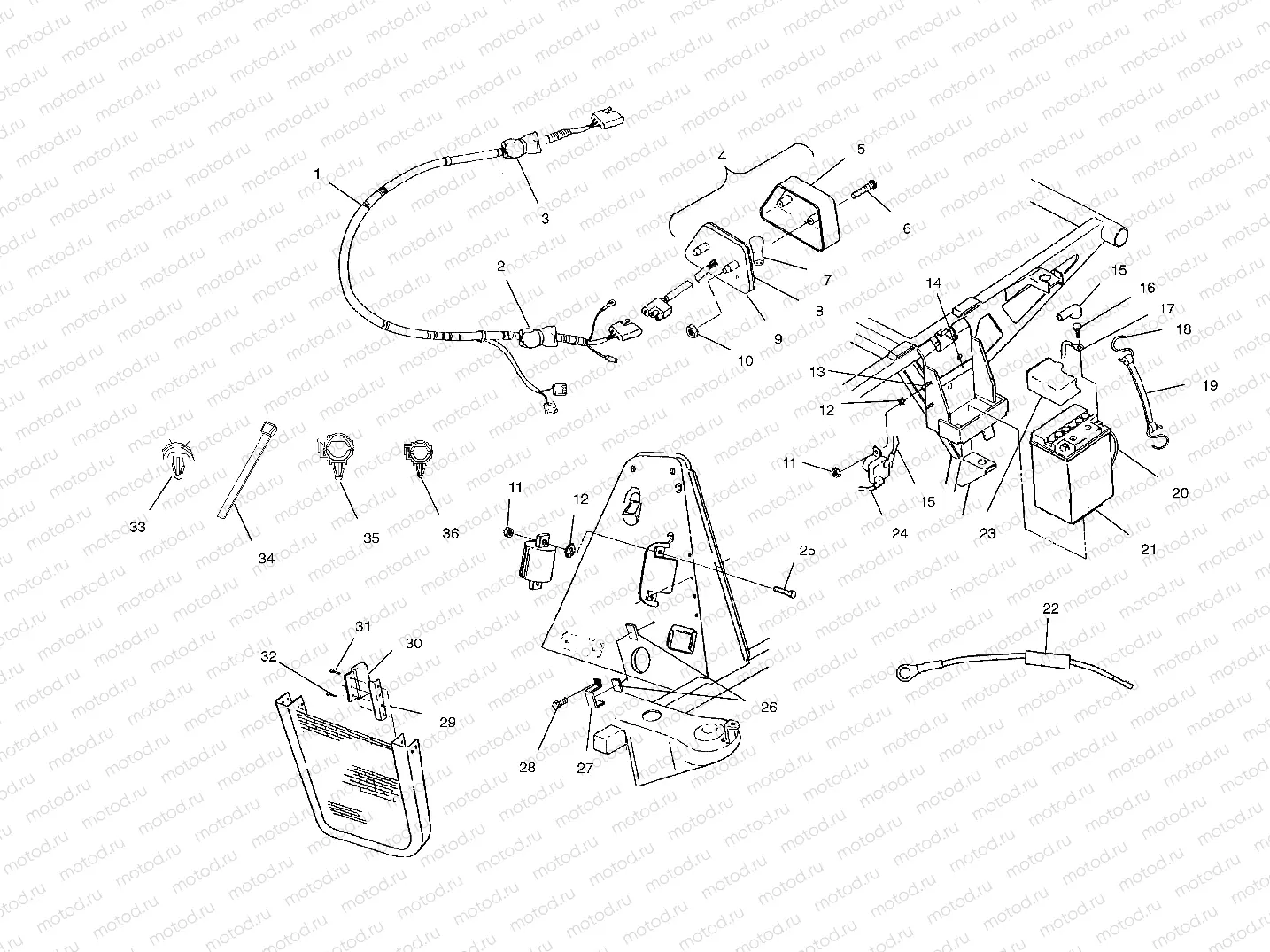

Главная Каталог товаров Polaris EPC 2002 Polaris ATV Polaris 2002 SPORTSMAN 400 (A02CH42AC) Polaris 2002 ATV ELECTRICAL/TAILLIGHT - A02CH42AA (4968536853C06) | ELECTRICAL/TAILLIGHT - A02CH42AA (4968536853C06)

ELECTRICAL/TAILLIGHT - A02CH42AA (4968536853C06) | ELECTRICAL/TAILLIGHT - A02CH42AA (4968536853C06)

ELECTRICAL/TAILLIGHT - A02CH42AA (4968536853C06) | ELECTRICAL/TAILLIGHT - A02CH42AA (4968536853C06)

Например: 2460944

1

2460944

Harness, Main

2

2200593

KIT CKT.BRKR 20 AMP

3

2201795

KIT-CIRCUT BREAKER FAN

4

2432034

TAIL LIGHT ASM.

4

2410320

ASM-TAILLIGHT 12V SERIES FIL

5

4032046

Taillight lens

6

4032029

Vis

7

4030043

BULB

8

4032045

Gasket

9

4032064

BACKING TAILLIGHT

10

7670054

NUT PUSH-ON

11

7541925

NUT NYLOK 10-24 Y

12

7571602

Rondelle

13

7512027

Vis

14

5810290

PAD BATTERY

15

4010094

CABLE BATT/SOLENOID RED

16

2200361

KIT-BATTERY BOLT (SHORT)

17

4010095

CABLE BATT/ENG. BLK.

18

7010032

HOOK-BATTERY STRAP

19

5418182

STRAP-BATTERY HOLD DOWN-C

20

5432077

TUBE VENT

21

4140006

La batterie

22

2202147

KIT-FUSIBLE LINK

23

5431769

COVER BATTERY

24

4010093

CABLE SOL/STARTER

25

7512007

Vis

26

5810455

PAD

27

5241416

BRACKET-CDI

28

7512024

Vis

29

5131818

HEATSINK RECT.

30

2205046

KIT-REGULATOR RECTIFIER LR-35

31

7512018

Vis

32

7512017

Vis

33

7080965

MOUNT-CABLE TIE .25

34

7080138

CABLE TIE

35

4020149

CLIP ROSEBUD

36

4020139

CLIP ROSEBUD
