Главная Каталог товаров Polaris EPC 2002 Polaris ATV Polaris 2002 SPORTSMAN 400 (A02CH42AC) Polaris 2002 ATV DRIVEN CLUTCH - A02CH42AA (4968536853C04) | DRIVEN CLUTCH - A02CH42AA (4968536853C04)

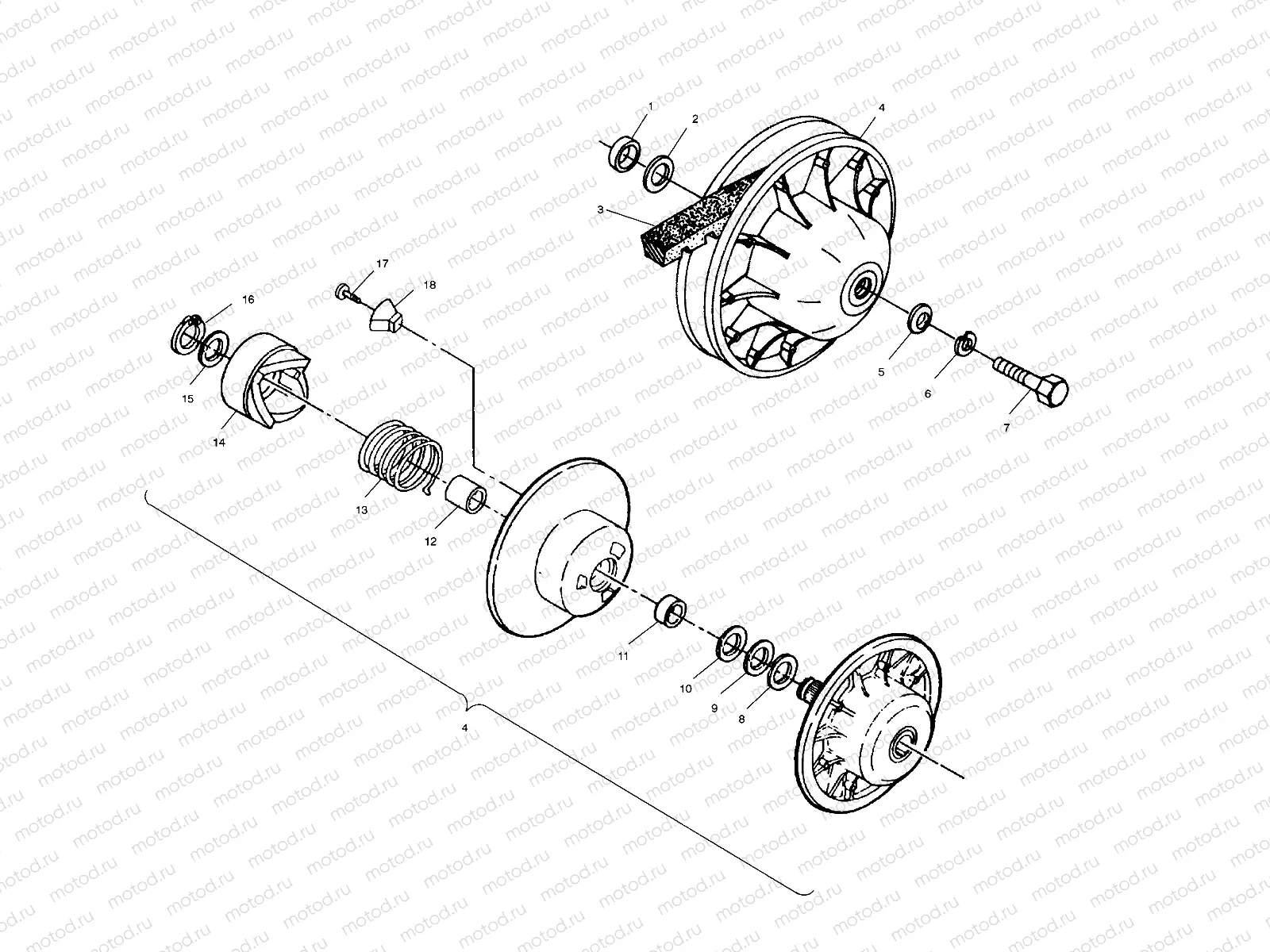

DRIVEN CLUTCH - A02CH42AA (4968536853C04) | DRIVEN CLUTCH - A02CH42AA (4968536853C04)

DRIVEN CLUTCH - A02CH42AA (4968536853C04) | DRIVEN CLUTCH - A02CH42AA (4968536853C04)

Например: 5010409

1

5010409

SPACER DRIVEN ATV

2

7556120

WASHER-.906 X 1.38 X .060

3

3211113

Courroie

4

1321874

CLUTCH DRVN ASM

5

5220646

WASHER DOMED

6

7552901

Rondelle (Lock)

7

7515382

Vis

8

7555898

WASHER-1.5X2.0X.020-Y

9

7556076

WASHER-1.50X2.00X.025-Y

10

7556804

WSHR-1.505X2.00X.030-Y

11

3576504

BUSHING MOVEABLE 1/2 INCH

12

3576511

BUSHING MOVEABLE 1 INCH

13

7041782

SPRING-CLTCH CHRM SLCN BLK DRI

14

5132344

RAMP STA COMP (MACH)

15

5244116

SPACER-1.350X1.750X.020-YW/TAB

16

7710448

RING RETAINING

17

7511854

Vis

18

5450873

BUTTON (3)
