Главная Каталог товаров Triumph EPC 2015 Triumph SPEED TRIPLE R > 735336 Triumph 2015 Electrical Equipment

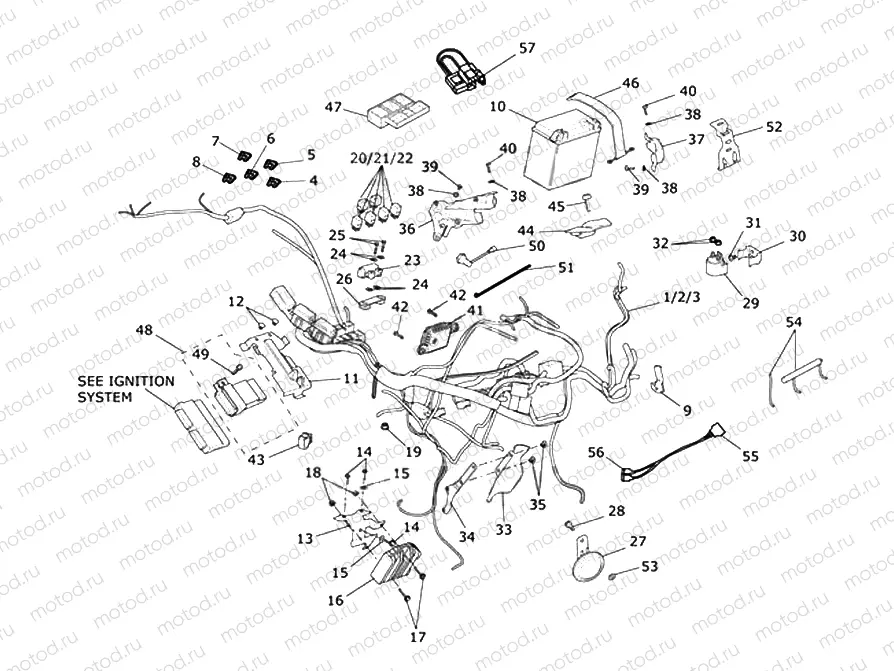

Electrical Equipment

Electrical Equipment

Например: T2504502

1

T2504502

Main Harness

2

T2504508

Lead, Battery Possitive

3

T2504506

Lead, Earth

4

T2501305

Fuse, Mini, 5A

5

T2501310

Fuse, Mini, 10A

3 шт. в узле

6

T2501315

Fuse, Mini, 15A

3 шт. в узле

7

T2501320

Fuse, Mini, 20A

4 шт. в узле

8

T2501160

Clip, Harness, Firtree

2 шт. в узле

9

T3700206

Wire Clamp, Headstock

10

T2502513

Battery Multipack (10)

10

T2500182

La batterie

11

T2504510

Moulding, ECU Bracket

12

T3450299

Firtree, M6

2 шт. в узле

13

T2504652

Regulator Bracket

14

T3205063

Bolt, HHF, Lghtd, M6 x 16, Slv

3 шт. в узле

15

T3555004

Washer, 6.4 x 14 x 1.6

2 шт. в узле

16

T1300675

Regulator Rectifier, 50A

17

T3205067

Vis

2 шт. в узле

19

T3350003

Locknut, Flanged, M6 x 1.0

20

T2500531

Relay, Indicator, 2 (4) x 10W

21

T2506035

Relay, Changeover

22

T2506040

Relay, Normally Open, Diode

4 шт. в узле

23

T2502405

Switch, Fall Detection

24

T3551066

Washer, 4.3 x 12.0 x 1.0

4 шт. в узле

25

T3330390

Screw, H/Hd, M4 x 25, Slv, Enc

2 шт. в узле

26

T2502429

Bracket, Fall Detect Mount

27

T2500113

Horn Assembly, Hi Tone

28

T3331625

Screw, Btn Hd, M8 x 12, Slv

29

T1310008

Starter Solenoid Assy

30

T1310038

Starter Solenoid, Bracket

31

T3331191

Screw, Pan/Hd Tx, M6 x 20, Enc

33

T2501080

Moulding, Harness Cover

34

T2102365

Bracket, Harness Cover

35

T3701170

Plastic Rivet, Screw Type

2 шт. в узле

36

T2507210

Panel, Front Infill, RH

37

T2507220

Panel, Front Infill, LH

38

T3555017

Washer, 6.5 x 12.5 x 0.8

4 шт. в узле

39

T3331234

Screw, Torx, P/H, M6 x 20, Slv

2 шт. в узле

40

T3331043

Screw, Pan/Hd, Tx, M6 x 12, Sl

2 шт. в узле

41

T2504071

Immobiliser ECU, with RF 315

41

T2504061

Immobiliser ECU, with RF 434

42

T3332464

Screw, S/Tap, THF, 5 x 25

2 шт. в узле

43

T2504512

S Clip, 3.5 - 4.5

44

T2507290

Infill, Headstock

45

T3331043

Screw, Pan/Hd, Tx, M6 x 12, Sl

2 шт. в узле

46

T2501785

Battery Strap

47

T2501025

Brace, Relay, Mouldling

48

T2504541

Bracket, Security, ECU, Kit

49

T3330327

Bolt, Shear, M6 x 22, Enc

50

T2501615

Flylead, Oil Pressure Switch

51

T3700015

Cable Tie, 185.7 Long

52

T2502002

Battery Brace Steel

53

T3551128

Rondelle (Lock)

54

T2504504

Subharness, Engine

55

T2500953

Link Lead, Alternator

56

T2500954

Link Lead, Regulator

57

T2509876

Flylead, ETC, JP
