Главная Каталог товаров Triumph EPC 2015 Triumph SPEED TRIPLE R > 735336 Triumph 2015 Cooling system

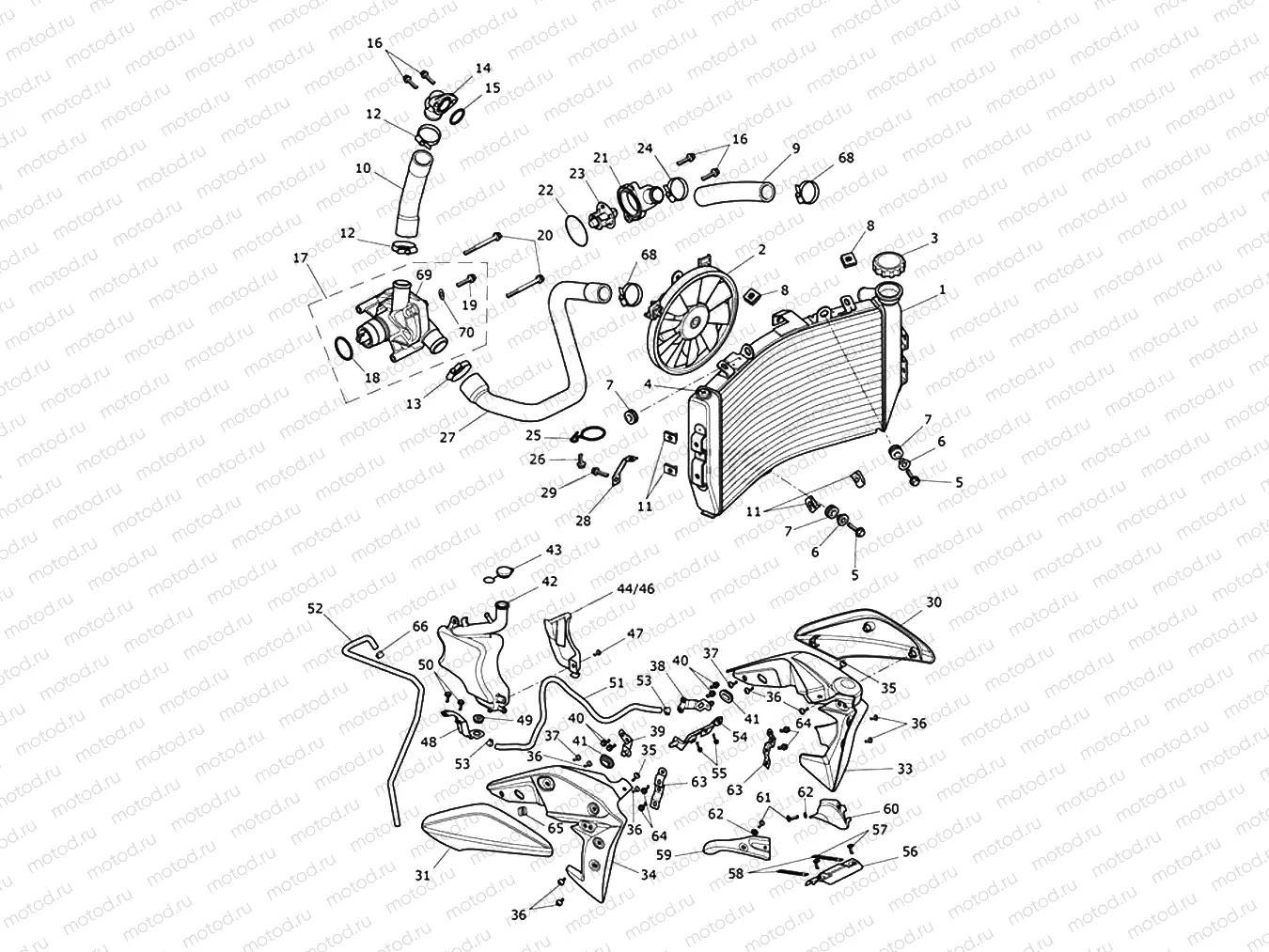

Cooling system

Cooling system

Например: T2100481

1

T2100481

Radiator, Curved

2

T2100482

Fan, Cooling

3

T2100164

Cap Assy, Radiator

4

T2100084

Bleed Screw, Nylon

6

T3010702

Flanged Sleeve, 6.4 x 10 x 8.5

2 шт. в узле

8

T3350123

Nut, Captive, M5, Non-Secured

2 шт. в узле

9

T2100485

Hose, Cyl Head to Radiator

10

T2107006

Hose, Coolant, Pump to Block

11

T3350111

Nut, Captive, M6

5 шт. в узле

12

T3707585

Clip, Hose, Dia 27-35

2 шт. в узле

12

T3706216

Clamp, Constant Tension, Dia 3

2 шт. в узле

13

T3706217

Clamp, Constant Tension, Dia 3

13

T3707590

Hose Clip, 30-38

14

T2107005

Elbow, Water, Cast, Black

15

T3600190

O Ring, 24 x 2.5

16

T3205066

Bolt, HHF, Lghtd, M6 x 20, Slv

4 шт. в узле

17

T2100680

Pompe à eau

18

3600160-T0301

O-Ring (Water Pump)

19

T3330804

Bolt, HHF, M6 x 25

20

T3205075

Bolt, HHF, Lghtd, M6 x 65, Slv

2 шт. в узле

21

T2100825

Elbow, Coolant, Bypass

22

T2100713

O-Ring (Water Elbow)

23

T2100889

hermostat, Bypass, M/CD

24

T3707580

Hose Clip, Dia 20-32

2 шт. в узле

24

T3706215

Clamp, Constant Tension, Dia 3

25

T2101655

Hose Guide

26

T3202304

Bolt, RHHF, M6 x 20, Slv

27

T2100484

Durite radiateur (Radiator to Pump)

28

T2100403

Bracket, Radiator Shield

29

T3203222

Bolt, HHF, M6 x 12, Slv

4 шт. в узле

30

T2100536-PR

ad Cowl, Outer, LH

30

T2100536-CW

Rad Cowl, Outer, LH

30

T2103117-PG

Rad Cowl, Outer, LH

30

T2100536-NW

Rad Cowl, Outer, LH

30

T2103103-CW

Rad Cowl Kit, LH

30

T2109536-CW

Rad Cowl, Outer, LH

30

T2103118-PG

Rad Cowl, Outer, LH

30

T2103105-CW

Rad Cowl Kit, LH

31

T2103106-CW

Rad Cowl Kit, RH

31

T2103128-PG

Rad Cowl, Outer, RH

31

T2100538-PR

ad Cowl, Outer, RH

31

T2103127-PG

Rad Cowl, Outer, RH

31

T2103104-CW

Rad Cowl Kit, RH

31

T2100538-CW

Rad Cowl, Outer, RH

31

T2100538-NW

Rad Cowl, Outer, RH

31

T2109538-CW

Rad Cowl, Outer, RH

33

T2103016-PS

Rad Cowl, Inner, LH

33

T2103023

Radiator Cowl, Inner, Carbon,

34

T2103017-PS

Rad Cowl, Inner, RH

34

T2103024

Radiator Cowl, Inner, Carbon,

35

T3330955

Screw, But/Hd, M5 x 14, Slv, E

2 шт. в узле

36

T3331075

Bolt, But/Hd, M5 x 14, Slv

8 шт. в узле

37

T3701121

Rivet, Plastic, Screw Type

2 шт. в узле

38

T2103132

Bracket, Radiator Cowl, Rear,

39

T2103131

Bracket, Radiator Cowl, Rear,

40

T3203222

Bolt, HHF, M6 x 12, Slv

4 шт. в узле

41

T3020059

Grommet, Bodywork

2 шт. в узле

42

T2105000

Expansion Tank

43

T2101015

Cap, Expansion Tank

44

T2306564

Spares Kit, Expansion Cover

46

T2306564

Spares Kit, Expansion Cover

47

T3701098

Firtree, Dia 5 x 18

48

T2105001

Bracket, Expansion Tank

49

T3020135

Rubber Grommet

50

T3203222

Bolt, HHF, M6 x 12, Slv

4 шт. в узле

51

T2105002

Pipe, Coolant, Expansion Tank

52

T2105003

Pipe, Overflow, Expansion Tank

53

T3700077

Clip, 10.5 Rer Oetiker

54

T2100483

Bracket, Radiator

55

T3330334

Screw, Tx, Pan/HD, M6 x 16, Sl

2 шт. в узле

56

T2100399

Shield, Cam Cover

57

T3331517

Screw, P/HD Tx, Shld, M6 x 16,

2 шт. в узле

58

T3700405

Clip, Harness

2 шт. в узле

59

T2100397

Shield, Frame, RH

60

T2100398

Shield, Frame, LH

61

T3331234

Screw, Torx, P/H, M6 x 20, Slv

2 шт. в узле

62

T3555017

Washer, 6.5 x 12.5 x 0.8

63

T2100493

Bracket, Radiator Cowl

2 шт. в узле

64

T3203222

Bolt, HHF, M6 x 12, Slv

4 шт. в узле

65

T3700196

Wire Clip, 4mm

66

T3700440

Clip, Hose, 11-12.5mm

2 шт. в узле

67

A9610046

Coolant, Hybrid Oat, 12 x 1L

68

T3706214

Clamp, Constant Tension, Dia 2

2 шт. в узле

68

T3707580

Hose Clip, Dia 20-32

2 шт. в узле

69

T3600230

Seal

70

T3550542

Washer, Cu, Od12.5 x Id6.4
