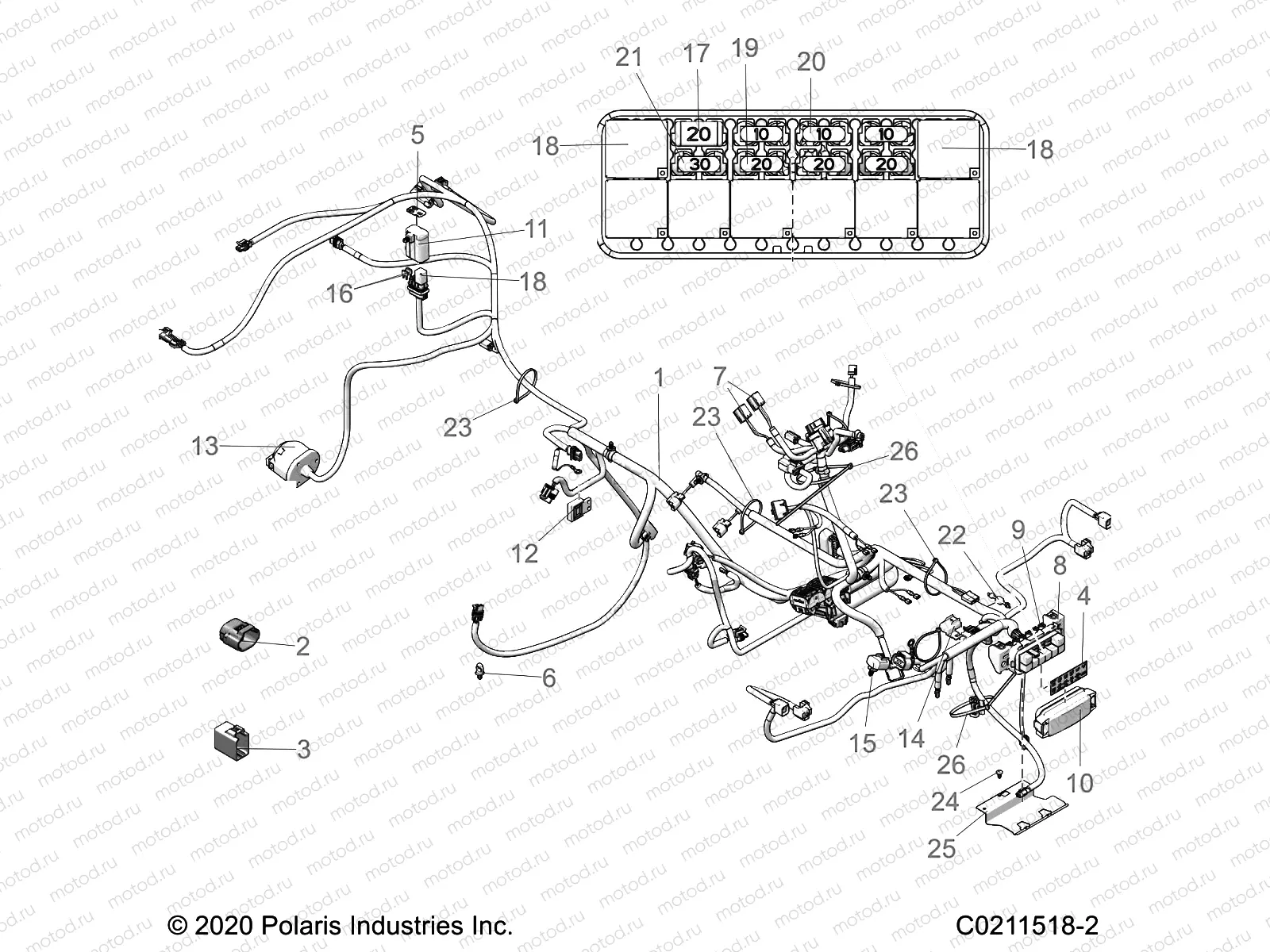

ELECTRICAL | ELECTRICAL, HARNESS - A22SVE95KK (C0211518-2)

ELECTRICAL | ELECTRICAL, HARNESS - A22SVE95KK (C0211518-2)

Например: 2414050

1

2414050

HARN-MAIN MY18 SCRM ETC TRC/EU

2

4014891

CONNECTOR-CAP WINCH CONTACTOR

3

4014890

CONNECTOR-CAP WINCH SWITCH

4

7188114

LABEL-FUSE BOX

5

7182813

LABEL-FUSE BOX

6

7081496

CLIP-ROUTING

7

4016237

SWITCH-K1 OTTO 4 WIRES

8

4015457

FUSEBOX-BASE 48 WAY

9

4015056

FUSEBOX-TPA 48 WAY

10

4015011

COVER-FUSEBOX 48WAY

11

4014381

ACCESSORY RELAY CAP W/CLIP

12

4014055

MODULE-RESISTOR

13

4012558

CONNECTOR-7-WAY EURO TRAILER

14

4012260

COVER-FUSEHOLDER

15

4012170

COVER-DIAGNOSTIC W/CLIP

16

4011652

FUSE-5A MINI BLADE

17

4011372

BREAKER-CIRCUIT 20 AMP

18

4016819

RELAY-SPST 12V 20A EPXY HFA

19

4010859

FUSE-15AMP MINI BLADE

20

2434016

FUSE IGN.10 AMP

21

2434015

FUSE MAIN 30 AMP

22

2411035

DIODE-6AMP 1/4 3/16 TERM

23

7080138

CABLE TIE

24

7670125

FASTNER-PUSH-ON CLIP .250

25

LR--

CALIPER, BRAKE, RH

26

7080492

CABLE TIE 11 INCH
