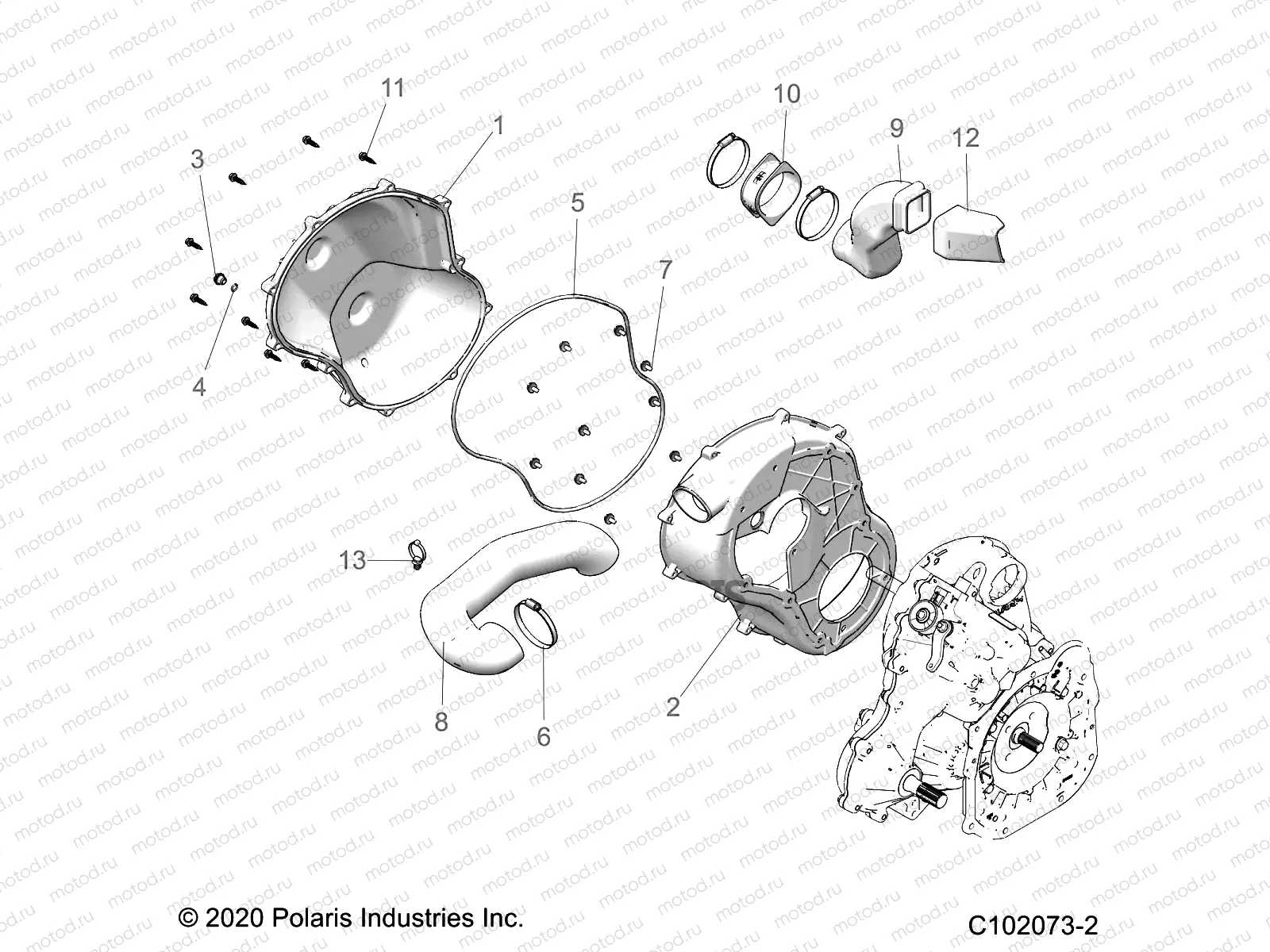

BODY | BODY, CLUTCH COVER - A22SVE95KK (C102073-2)

BODY | BODY, CLUTCH COVER - A22SVE95KK (C102073-2)

Например: 2209389

1

2209389

K-ASM-COVER CLUTCH OUTER

2

2209390

K-COVER-CLUTCH INNER

3

5434264

PLUG-DRAIN

4

5411432

O RING

5

5526454

SEAL-COVER CLUTCH

6

7081279

CLAMP-BAND NARROW 70-90MM

7

7518914

SCR-M6X1X14 PN/TX TRI-LOB

8

5415566

DUCT-OUTLET CLUTCH

9

5452432

DUCT-AIR INLET CLUTCH ETC

10

5413177

BOOT-CLUTCH INLET

11

7519849

SCR-#14X1-1/4 HI/LO/TAPER-Y

12

5413516

BOOT-INLET DUCT

13

7082264

CLIP-DUCT OUTLET
