Главная Каталог товаров HONDA EPC 125 cm³ - 349 cm³ HONDA CGX 125 HONDA CGX125SHD CGX125SH 2013 HONDA E-8 CLUTCH

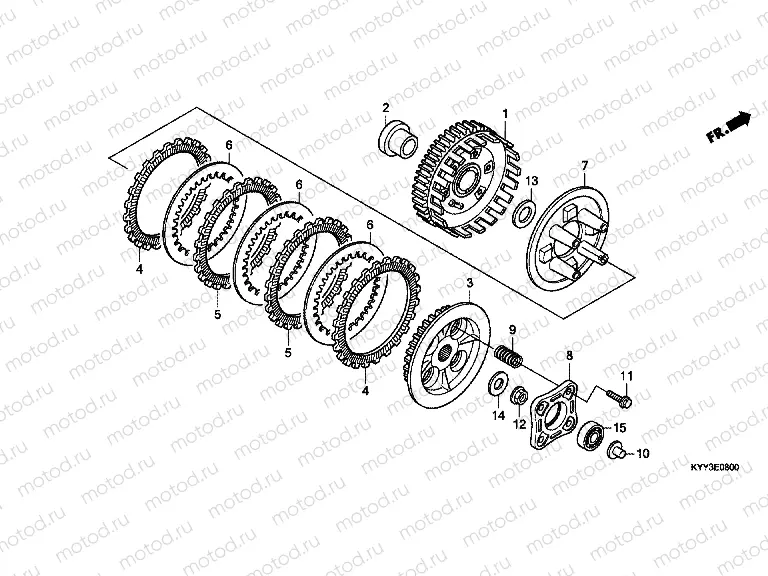

E-8 CLUTCH

E-8 CLUTCH
Например: 22100-KYY-901
1
22100-KYY-901
OUTER COMP., CLUTCH
29 189 ₽/шт
2
22115-KWS-900
GUIDE, CLUTCH OUTER
1 517 ₽/шт
3
22120-KWS-901
CENTER, CLUTCH
5 000 ₽/шт
4
22201-KWS-901
DISK, CLUTCH FRICTION
1 132 ₽/шт
5
22204-KWS-901
DISK B, CLUTCH FRICTION (B)
1 274 ₽/шт
6
22321-KWB-601
PLATE, CLUTCH (F.C.C.)
771 ₽/шт
7
22355-KWS-901
PLATE, CLUTCH PRESSURE
2 933 ₽/шт
8
22361-KFM-900
PLATE, CLUTCH LIFTER (F.C
1 006 ₽/шт
9
22401-KYY-901
SPRING, CLUTCH
456 ₽/шт
10
22847-KCC-900
ROD, CLUTCH LIFTER
432 ₽/шт
11
90050-KFL-850
Vis
283 ₽/шт
12
90202-KRM-840
Vis (spec)
149 ₽/шт
13
90403-KPH-900
WASHER, THRUST, 17MM
275 ₽/шт
14
90432-KPT-A00
WASHER, 14.2X26X3
456 ₽/шт
15
96100-620-0000
Bearing, radial ball, 6200
464 ₽/шт
