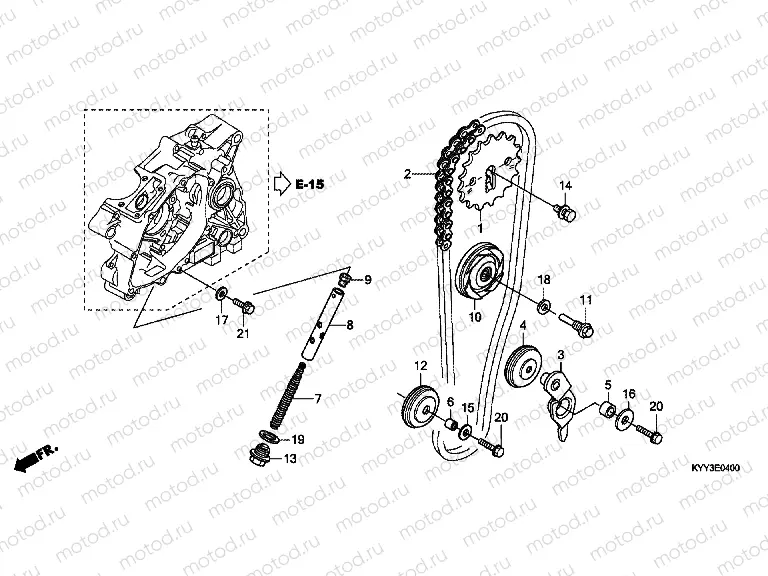

E-4 TIMING CHAIN ​​/ TENSIONER

E-4 TIMING CHAIN ​​/ TENSIONER
Например: 14321-KYY-900
1
14321-KYY-900
SPROCKET, CAM (32T)
1 965 ₽/шт
2
14401-KYY-901
Chaîne distribution (90L)
3
14500-KYY-900
ARM COMP., CAM CHAIN TENS
1 327 ₽/шт
4
14502-KYY-901
ROLLER,CAM CHAIN
5
14531-KYY-900
COLLAR, CAM CHAIN TENSION
204 ₽/шт
6
14532-KWS-900
COLLAR, CAM CHAIN ROLLER
189 ₽/шт
7
14541-GB4-681
SPRING, CAM CHAIN TENSION
407 ₽/шт
8
14550-KYY-900
ROD COMP., TENSIONER PUSH
1 661 ₽/шт
9
14566-086-030
HEAD, CAM CHAIN TENSIONER
252 ₽/шт
10
14610-KWB-600
ROLLER COMP., CAM CHAIN G
11
14615-KFL-850
PIN, GUIDE ROLLER
330 ₽/шт
12
14670-KYY-901
ROLLER COMP., CAM CHAIN G
1 337 ₽/шт
13
90081-035-000
BOLT, SEALING, 14MM
503 ₽/шт
14
90082-KYY-900
BOLT-WASHER, 8X22
165 ₽/шт
15
90401-KYY-900
WASHER, PLAIN, 6.5X15
16
90404-KYY-900
WASHER6.5X26X2.3
244 ₽/шт
17
90463-KRM-840
WASHER, SEALING, 6.2X12X1
195 ₽/шт
18
90475-KWB-600
ASHER, 8MM
244 ₽/шт
19
90544-KF0-000
Rondelle (SEALING, 14mm)
248 ₽/шт
20
95701-060-2500
Bolt
69 ₽/шт
21
96001-060-1400
Bolt
63 ₽/шт
