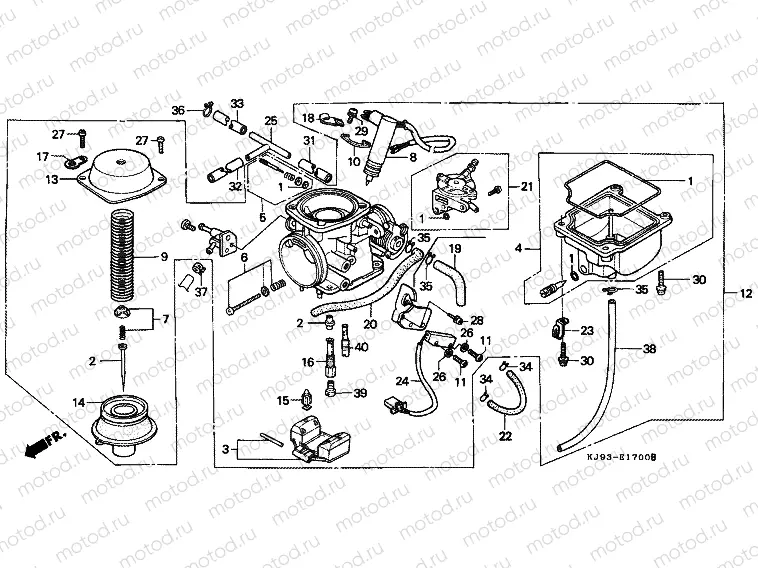

E-17 CARBURETOR

E-17 CARBURETOR
Например: 16010-KS4-305
1
16010-KS4-305
GASKET SET
2 514 ₽/шт
2
16012-KV8-680
NEEDLE SETJET
3
16013-KR3-980
FLOAT SET
4 581 ₽/шт
4
16015-KJ9-013
CHAMBER SETFLOAT
5
16016-MZ8-A70
SCREW SET
1 691 ₽/шт
6
16028-KCW-850
SCREW SETB
7
16037-KN7-671
PLATE SETVALVE
8
16046-KV8-681
BYSTARTER ASSY.A
9
16050-KV8-680
Spring
12
16100-KV8-682
Carburettor (VE46B A)
13
16107-KJ9-003
TOP COMP.
14
16111-KV8-680
Diaphragme de carburateur
15
16155-KFR-701
VALVE COMP., FLOAT
2 254 ₽/шт
16
16165-KV8-680
HOLDERNEEDLE JET
17
16179-HA0-003
BINDER
1 024 ₽/шт
18
16179-KM1-003
CLIP, PLATE
867 ₽/шт
20
16199-KV7-900
TUBE
21
16510-KJ9-751
CUT VALVE ASSY.,A
10 174 ₽/шт
22
16521-KN7-670
TUBEA.C.V.
27
93500-040-080H
Болт
44 ₽/шт
28
16080-KJ9-003
Vis
212 ₽/шт
29
93892-040-0808
Screw-washer
52 ₽/шт
30
93500-040-140H
Болт
39 ₽/шт
34
95002-02070
Collier
47 ₽/шт
35
95002-02080
Collier
47 ₽/шт
37
95002-406-8008
Clip, tube (d12.5)
79 ₽/шт
38
95003-090-3031S
Tube,v 4.5x8x300
86 ₽/шт
39
99101-GHB-0950
Jet, main (#95)
566 ₽/шт
40
99103-KBH-0350
Jet,slow
708 ₽/шт
