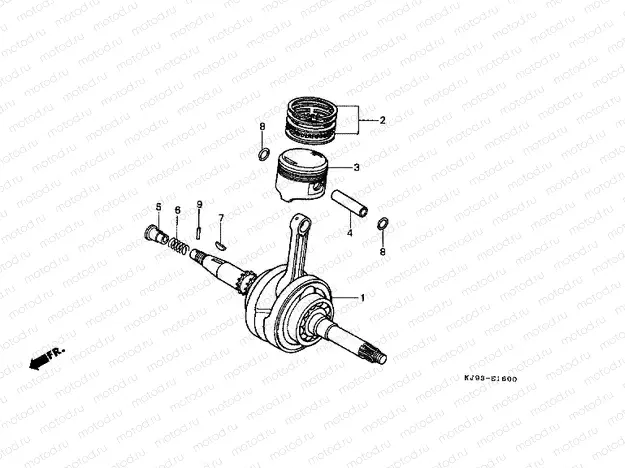

E-16 CRANKSHAFT / PISTON

E-16 CRANKSHAFT / PISTON
Например: 13000-KV8-040
1
13000-KV8-040
ilebrequin
2
13015-KV8-680
RING SETPISTON (
3
13105-KV8-680
Piston (std. 1.00)
4
13111-384-000
Piston pin
1 227 ₽/шт
5
15441-149-000
THROUGH, OIL
613 ₽/шт
6
15447-149-000
SPRING, OIL THROUGH
289 ₽/шт
7
90701-HB6-010
Woodruff key (25 x 14 x 4)
305 ₽/шт
8
94601-15000
CLIP, PISTON PIN, 15MM
50 ₽/шт
9
96220-20118
ROLLER, 2X11.8
24 ₽/шт
