Главная Каталог товаров HONDA EPC 125 cm³ - 349 cm³ HONDA FES 150 Pantheon HONDA FES150W Pantheon 1998 HONDA (VIN: ZDCKF02A) E-10 DRIVED PAGE

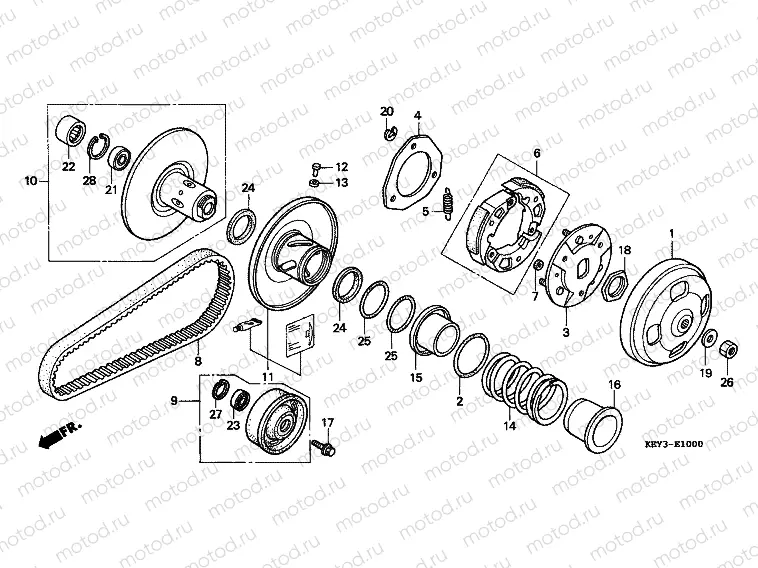

E-10 DRIVED PAGE

E-10 DRIVED PAGE
Например: 22100-KFG-000
1
22100-KFG-000
Clutch bell
8 453 ₽/шт
2
22109-KFG-000
SEAT, DRIVEN SPRING
346 ₽/шт
3
22350-KFG-000
PLATE COMP., DRIVE
3 613 ₽/шт
4
22361-KFG-000
PLATE, CLUTCH SIDE
1 195 ₽/шт
5
22401-KFF-900
Clutch spring
502 ₽/шт
6
22535-KFF-900
WEIGHT SET, CLUTCH
7
22804-GB2-000
RUBBER, CLUTCH DAMPER
407 ₽/шт
8
23100-KFF-901
Courroie
9
23110-KEY-900
ROLLER COMP., BELT
10
23205-KFG-000
ACE SET, DRIVEN
14 161 ₽/шт
11
23224-KFG-000
ACE SET, MOVABLE DRIVEN
12
23225-KM1-010
PIN, ROLLER GUIDE
244 ₽/шт
13
23226-KM1-010
ROLLER, GUIDE
212 ₽/шт
14
23233-KFF-900
Spring
15
23237-KFG-000
COLLAR, SEAL
1 069 ₽/шт
16
23238-KFF-901
COLLARSPG
17
90003-KEY-900
Vis (spec)
18
90202-KM1-000
Nut (spec. 30mm)
425 ₽/шт
19
90473-KG8-000
Rondelle (12 mm)
283 ₽/шт
20
90605-166-720
CIRCLIP, 7MM
204 ₽/шт
21
91002-GA7-701
Roulement
1 074 ₽/шт
22
91002-KFG-003
Needle bearing
1 101 ₽/шт
23
91009-KEY-901
Roulement
1 378 ₽/шт
24
91211-KM1-005
SEAL, DRIVEN FACE, 40X47X
708 ₽/шт
25
91352-KM1-005
O-Ring
289 ₽/шт
26
94030-12200
Nut (12 mm)
63 ₽/шт
27
94520-28000
Seeger (28mm)
86 ₽/шт
28
94520-35000
Seeger (35mm)
96 ₽/шт
