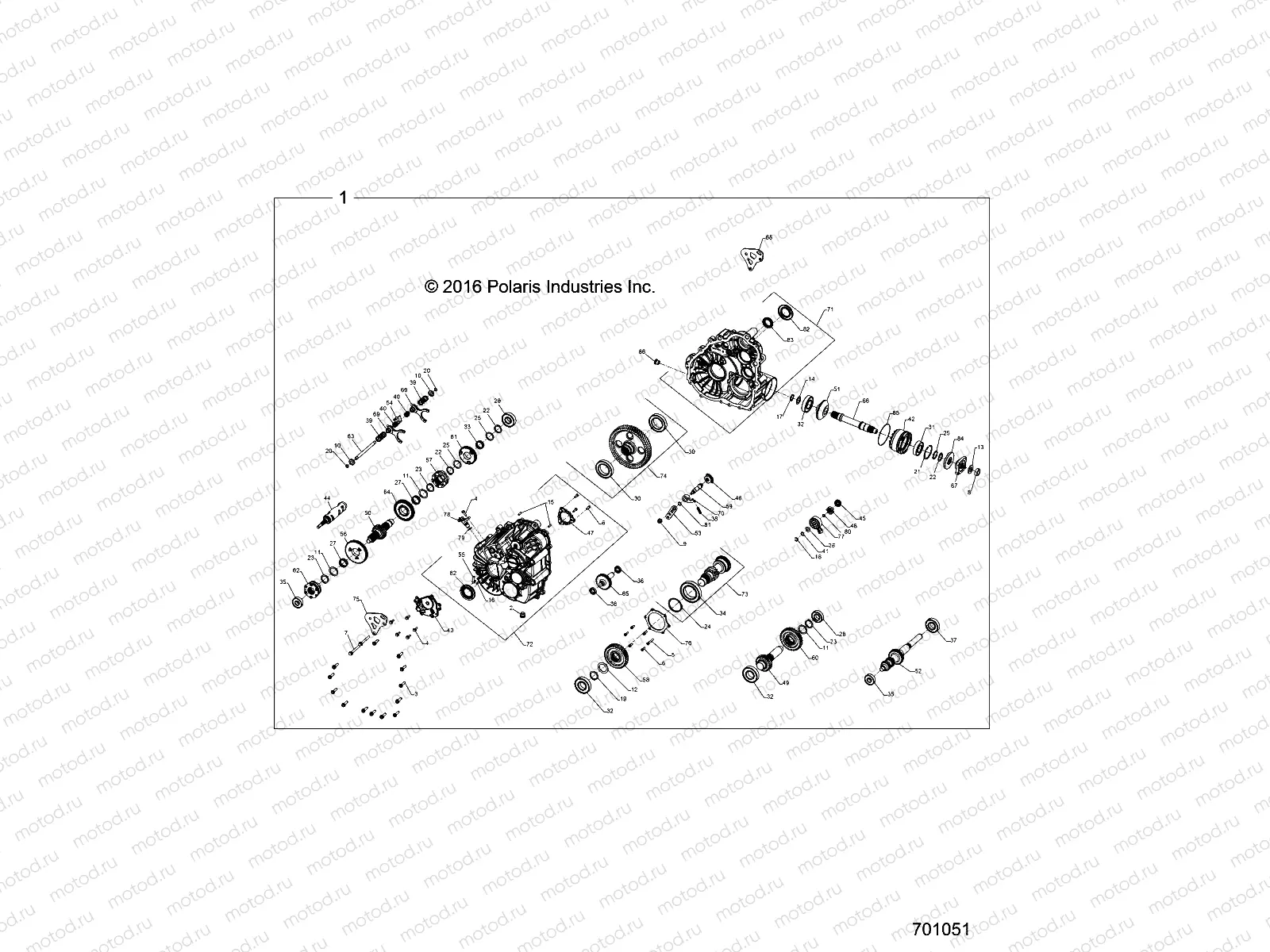

DRIVE TRAIN | DRIVE TRAIN, MAIN GEARCASE INTERNALS - Z16VFE92AE/AH/AS/AW (701051)

DRIVE TRAIN | DRIVE TRAIN, MAIN GEARCASE INTERNALS - Z16VFE92AE/AH/AS/AW (701051)
Например: 1333610
1
1333610
ASM-GEARCASE COMPLETE
2
3234756
PLUG-SOCKET HEAD W/MAG M18X1.5
3
3234898
SCREW-HEXFLANGEHEAD M8X1.25X30
4
3235206
Vis
5
3235208
SCR-M6X1.0X40 SOC/CAP(105344)
6
3235332
SCR-SCKT HD CP M6X1X18(105355)
7
3235802
SCR-HXFL-M8X1.25X70 8.8
8
3235803
NUT-HEX-M20X1.5 JAM-RH
9
3235210
NUT-M8X1.25 HXFLG NYLN(110093)
10
3234091
WASHER-CUP
11
3235211
Rondelle
12
3235212
Rondelle
13
3235804
WSHR-21.4X39X3.4 LOCKING
14
3235805
WASHER-26.26X34X2
15
3234330
Dowel pin
16
7043746
SPRING-SLOTTED PIN 6MM
17
3233106
RING SNAP
18
3233834
RING-RETAINING
19
3233364
RING RETAINING
20
3234090
RING-RETAINING
21
3234741
RING RETAINING INTERNAL
22
3234205
RING RETAINING
23
3235214
RING RETAINING EXTERNAL
24
3235216
RING RETAINING
25
3233378
WASHER THRUST
26
3234642
WASHER THRUST .446X.88X.025
27
3233014
BEARING NEEDLE
28
3233019
Roulement
29
3233020
Roulement
30
3233268
BEARING BALL
31
3233790
BEARING-BALL (FB)
32
3234065
BEARING-BALL
33
3233384
BEARING NEEDLE
34
3235218
BEARING BALL
35
3234652
BEARING BALL
36
3235807
BEARING BALL 6903 17X30X7
37
3235496
BEARING-6206RSH2(180630)
38
3235942
SPRING-COMPRESSION
39
3234078
SPRING-COMPRESSION
40
3234089
SPRING-COMPRESSION
41
3235327
WASHER-SPRING 210393
42
3235947
TUBE SNORKLE MACH
43
3235809
COVER-SECTOR GEARS MACH
44
3235463
DRUM-SHIFT MACH.(255289)
45
3233839
GEAR-SECTOR 16T
46
3233832
GEAR-SECTOR 31T-CUT TO 11T
47
3235456
PARK PLATE (270509)
48
3235603
DETENT STAR
49
3235223
SHAFT IDLER 29T
50
3235380
SHAFT-REVERSE 25T(285878)
51
3235812
GEAR-19T SNORKLE
52
3235846
SHAFT-INPUT
53
3235227
BELLCRANK
54
3234073
COLLAR-SHIFT
55
3234230
TUBE-VENT 90-1/4 HOSE
56
3235232
GEAR-LOW 67T(352856)
57
3235233
DOG ENGAGEMENT 6-FACE
58
3235236
GEAR 46T STAGE 3
59
3235238
SHAFT SHIFT
60
3235381
GEAR-48T STAGE 3(353115)
61
3235411
GEAR-52T(353081)
62
3235457
SHIFT DOG PARK/LOW (353357)
63
3235542
RAIL-SHIFT SHAFT(353622)
64
3235813
GEAR-REVERSE 61T
65
3235814
GEAR-INDLER 43T
66
3235815
SHAFT-FRONT OUTPUT
67
3235816
COUPLER
68
3235817
WELD-REAR MNT BRKT
69
3235454
SHIFT FORK SUBASSEMBLY
70
3235452
ROLLER PAWL
71
3235949
ASM-SUB LH CASE
72
3235950
ASM-SUB RH CASE
73
3235820
ASM-SUB PINION
74
3235847
ASM-SUB OUTPUT
75
3235822
BRKT-REAR MOUNT
76
3235823
COVER-BEARING CENTER DRIVE
77
7661999
PIN-GEAR POSITION SWITCH
78
4013908
SENSOR-SPEED TRANS
79
3234302
O-RING -113
80
3233836
O-Ring
81
3233828
O-Ring
82
3235052
SEAL-TRIPLE LIP VITON 40X70X7
83
3235848
SEAL-TRIPLE LIP
84
3235824
SEAL-TRI LIP 30X75X8
85
3235948
O-RING 3.609IDX.139
86
3234755
PLUG-SKT HD 1SO 6149 M18 X 1.5
