Главная Каталог товаров Polaris EPC 1992 Polaris ATV Polaris 1992 TRAIL BOSS 350L 4X4 (W928139) Polaris 1992 ATV DRIVE CLUTCH ASSEMBLY 350 4X4 / W928139 (4922832283025A) | DRIVE CLUTCH ASSEMBLY 350 4X4 / W928139 (4922832283025A)

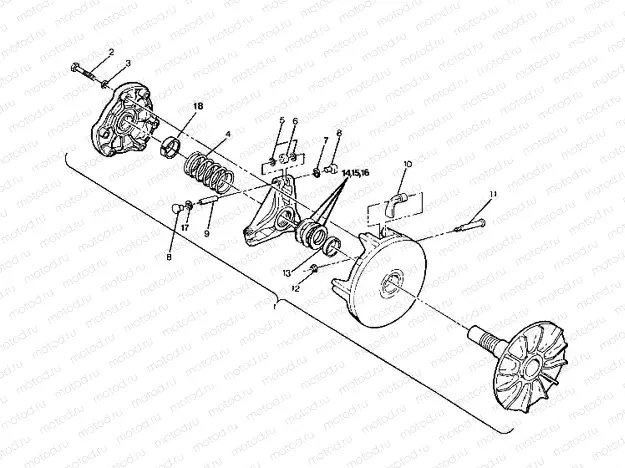

DRIVE CLUTCH ASSEMBLY 350 4X4 / W928139 (4922832283025A) | DRIVE CLUTCH ASSEMBLY 350 4X4 / W928139 (4922832283025A)

DRIVE CLUTCH ASSEMBLY 350 4X4 / W928139 (4922832283025A) | DRIVE CLUTCH ASSEMBLY 350 4X4 / W928139 (4922832283025A)

Например: 1321976

1

1321976

ASM-DRIVE CLUTCH WIDE

2

7512265

Vis

3

7552804

Rondelle (Lock)

4

7041157

SPRING CLUTCH BLU/GRN

5

5438247

WASHER-CLUTCH SPIDER ROLLER(10

6

1321457

ROLLER/BUSHING ASM.

7

5410610

O-Ring

8

5430768

BUTTON GUIDE

9

5020795

PIN SPIDER

10

5630095

WT,SHIFT,'S'(6) (16)

11

7512266

BOLT SHOULDER

12

7541906

NUT FLEXLOC

13

3576504

BUSHING MOVEABLE 1/2 INCH

14

5210752

SPACER .020

15

5210753

SPACER .032

16

5210754

SPACER .050

17

5410609

WASHER RUBBER

18

3576510

BEARING COVER

18

5630418

WT SHIFT H.A.(C)
