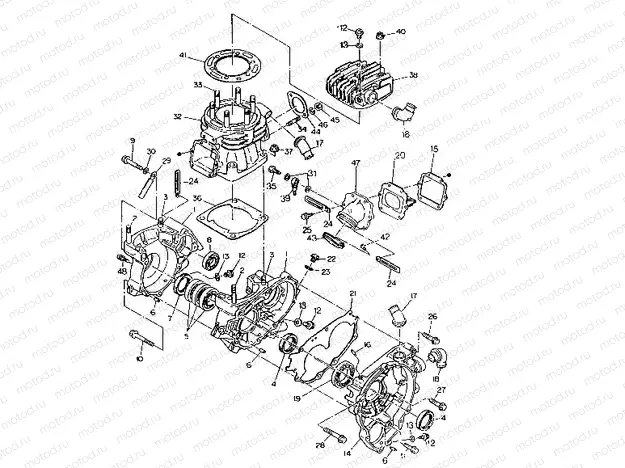

Главная Каталог товаров Polaris EPC 1992 Polaris ATV Polaris 1992 TRAIL BOSS 350L 4X4 (W928139) Polaris 1992 ATV CRANKCASE and CYLINDER 350 4X4 / W928139 (4922832283037A) | CRANKCASE and CYLINDER 350 4X4 / W928139 (4922832283037A)

CRANKCASE and CYLINDER 350 4X4 / W928139 (4922832283037A) | CRANKCASE and CYLINDER 350 4X4 / W928139 (4922832283037A)

CRANKCASE and CYLINDER 350 4X4 / W928139 (4922832283037A) | CRANKCASE and CYLINDER 350 4X4 / W928139 (4922832283037A)

Например: 3084117

1

3084117

CRANKCASE ASM.

2

3084118

STUD

3

3084119

STUD

4

3084120

SEAL OIL

5

3084121

BEARING BALL

6

3086838

Dowel pin

7

3084122

SEAL,OIL

8

3084123

BEARING BALL

9

3084124

BOLT, FLANGE

10

3086742

BOLT-FLANGE

11

3084126

BOLT, FLANGE

12

3083767

Vis de vidange d'huile

13

7555998

WASHER FLAT

14

3084127

CRANKCASE #3

15

3084148

GASKET, REED VALVE,(10) (reed valve)

16

3084128

PIPE, BREATHER (Breather)

17

3084129

PIPE, 1 ELBOW Substituted by 3086746 (Elbow)

18

3086747

PIPE-2 ELBOW

19

3084131

BEARING BALL

20

3084147

VALVE ASM. REED

21

3084133

GASKET, CASE 3 (Case 3)

22

3083453

PLUG

23

3082956

GASKET

24

3083590

Collier

25

3084877

Vis

26

3086751

Vis

27

3084134

Vis

28

3084135

Vis

29

3083384

Collier

30

3080142

Rondelle

31

7555998

WASHER FLAT

32

3084137

"""CYLINDER"""

33

3084138

STUD

34

3080016

STUD (10)

35

3083137

BOLT-BANJO

36

3084140

Joint d'embase cylindre

37

3082911

NUT-FLANGE.

38

3084141

HEAD CYLINDER

39

3083894

VALVE CHECK

40

3082910

NUT-FLANGE

41

3084517

GASKET,HEAD(350L) * (Head)

42

3081497

Vis

43

3084144

BAND ASM.

44

3083770

Exhaust gasket

45

3087199

Nut

46

3080530

Rondelle (Lock)

47

3084143

ADAPTER

48

3084205

ASM. SCREW & WASHER
