Главная Каталог товаров HUSQVARNA EPC 2012 HUSQVARNA SMR 511 HUSQVARNA 2012 CRANKCASE CARTER

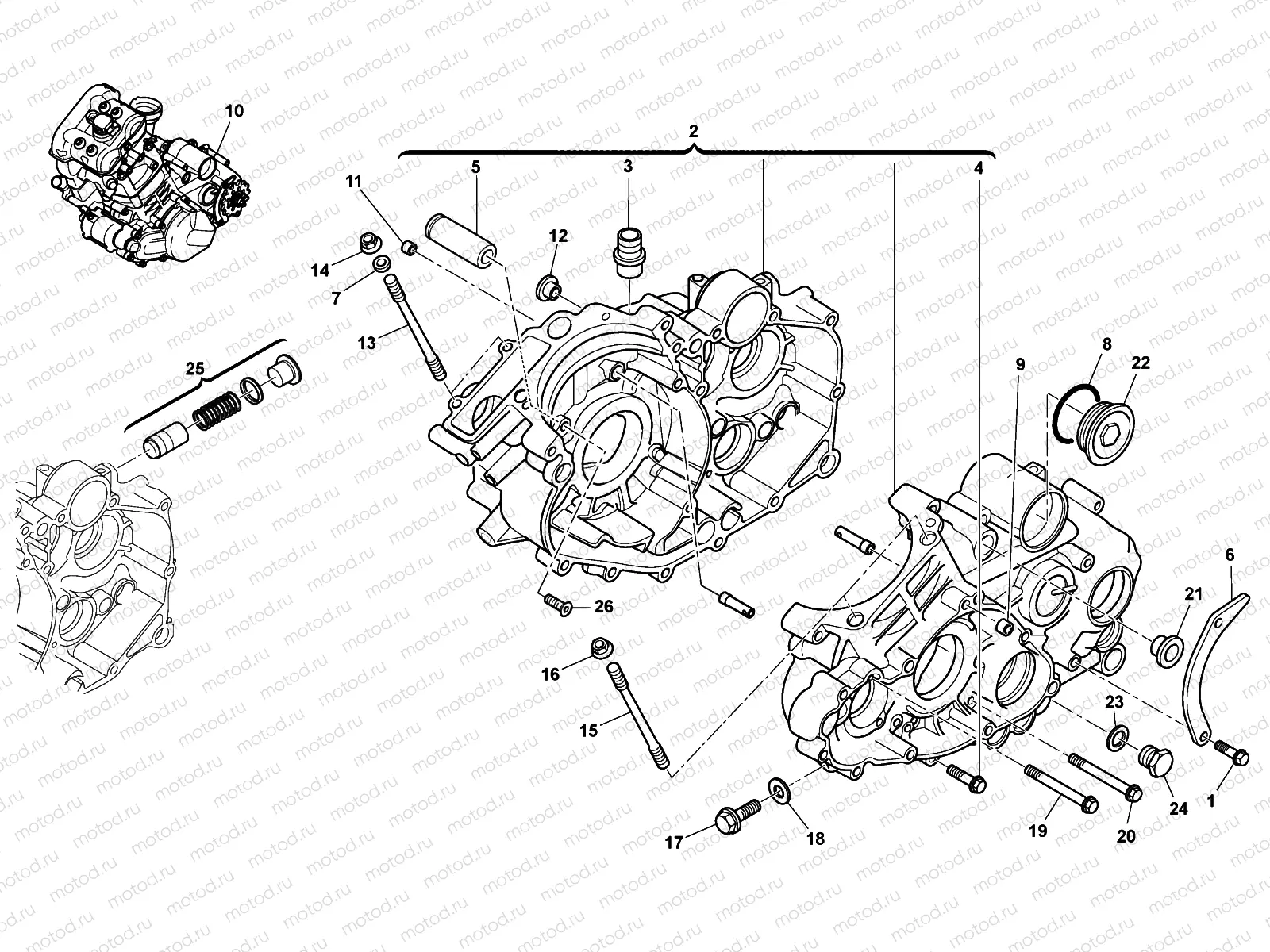

CRANKCASE CARTER

CRANKCASE CARTER
Например: Z00062727
1
Z00062727
Vis
1
Z00062727
Vis
2
8527735
ENGINE CRANKCASE KIT
2
8527735
ENGINE CRANKCASE KIT
3
7717725
INSERT ENGINE VENTILATION
3
7717725
INSERT ENGINE VENTILATION
4
7707165
S-SCREW M6X50X18-SW8-8.8-ZNS3
4
7707165
S-SCREW M6X50X18-SW8-8.8-ZNS3
5
8520263
AXIS
5
8520263
AXIS
6
8000H4771
PLATE
6
8000H4771
PLATE
7
9905990
WASHER DIN EN ISO 7089-6-200HV
7
9905990
WASHER DIN EN ISO 7089-6-200HV
8
9906611
O-Ring
8
9906611
O-Ring
9
7727538
REDUCTION JET D=2,5MM
9
7727538
REDUCTION JET D=2,5MM
10
8000H6715
ENGINE ASSY TE 511 R MY 12
10
8000H6715
ENGINE ASSY TE 511 R MY 12
11
7719441
OIL JET M5X0,9
11
7719441
OIL JET M5X0,9
12
8521139
COLLAR BUSHING LOWER ENGINE FI
12
8521139
COLLAR BUSHING LOWER ENGINE FI
13
7707008
STUD M6X87-10.9-MKL-10X3-ZNS3
13
7707008
STUD M6X87-10.9-MKL-10X3-ZNS3
14
9904882
HEX NUT GS 92012-M6-8 ZNS3
14
9904882
HEX NUT GS 92012-M6-8 ZNS3
15
7707006
STUD M10X150-10.9-MKL-15X5-ZNS
15
7707006
STUD M10X150-10.9-MKL-15X5-ZNS
16
7707007
HEX NUT M10
16
7707007
HEX NUT M10
17
7706412
S-SCREW M8X16X15,5-SW11-8.8-ZN
17
7706412
S-SCREW M8X16X15,5-SW11-8.8-ZN
18
7707109
WASHER 8X16X1,6-AL
18
7707109
WASHER 8X16X1,6-AL
19
7707167
S-SCREW M6X75X22-SW8-8.8-ZNS3
19
7707167
S-SCREW M6X75X22-SW8-8.8-ZNS3
20
7707166
S-SCREW M6X70X22-SW8-8.8-ZNS3
20
7707166
S-SCREW M6X70X22-SW8-8.8-ZNS3
21
7713164
COLLAR BUSHING HIGHER ENGINE F
21
7713164
COLLAR BUSHING HIGHER ENGINE F
22
7707101
COVER OILFILTER
22
7707101
COVER OILFILTER
23
9963252
Rondelle (16x20)
23
9963252
Rondelle (16x20)
24
7717724
Vis de vidange d'huile
24
7717724
Vis de vidange d'huile
25
7707102
ASSY OIL PRESSURE VALVE
25
7707102
ASSY OIL PRESSURE VALVE
26
7719439
ISA COUNTERSUNK BOLT-M5X12-10.
26
7719439
ISA COUNTERSUNK BOLT-M5X12-10.
