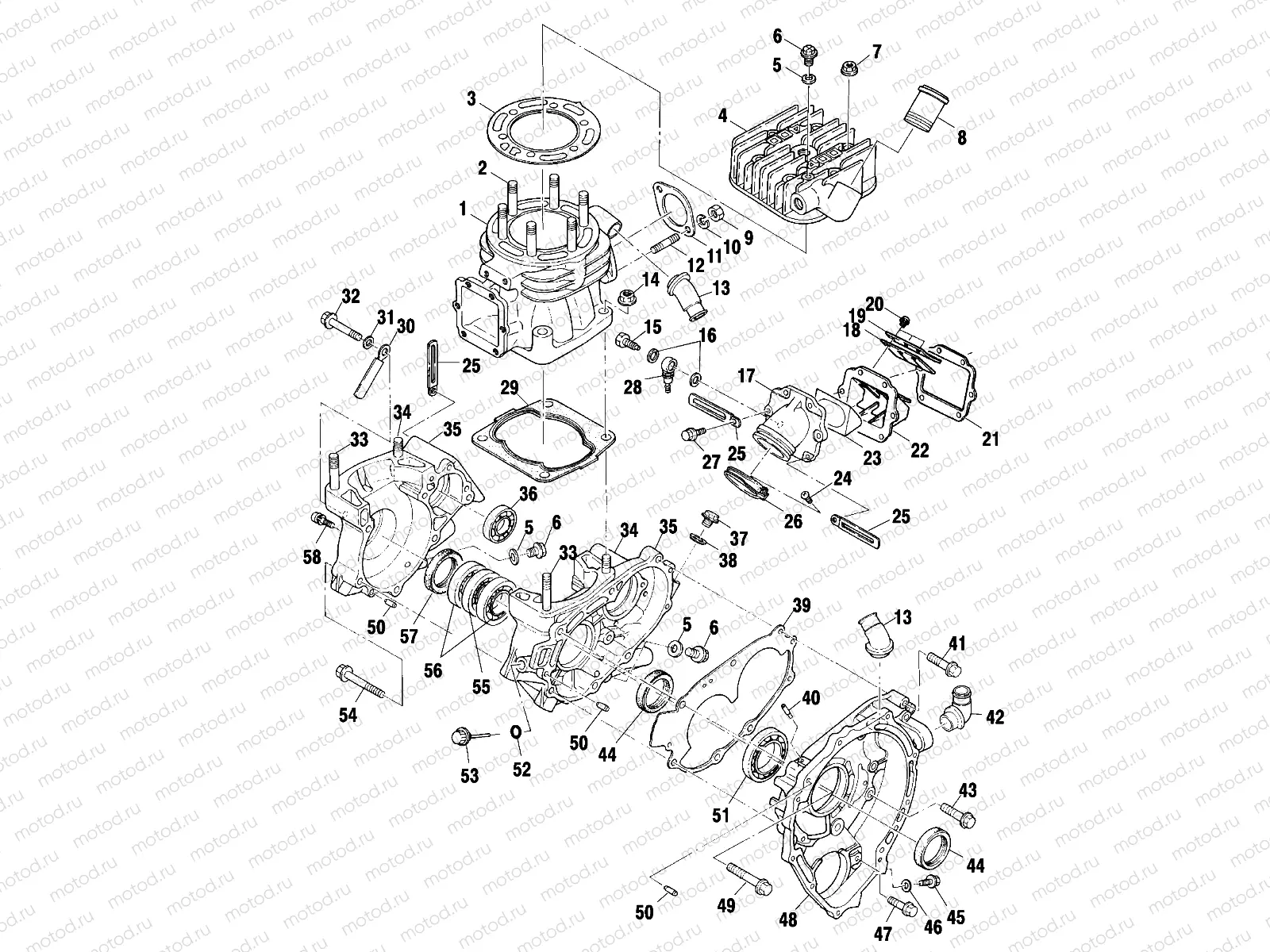

Главная Каталог товаров Polaris EPC 2000 Polaris ATV Polaris 2000 XPLORER 400 (A00CG38CA) Polaris 2000 ATV CRANKCASE and CYLINDER - A00CG38CA (4954875487D004) | CRANKCASE and CYLINDER - A00CG38CA (4954875487D004)

CRANKCASE and CYLINDER - A00CG38CA (4954875487D004) | CRANKCASE and CYLINDER - A00CG38CA (4954875487D004)

CRANKCASE and CYLINDER - A00CG38CA (4954875487D004) | CRANKCASE and CYLINDER - A00CG38CA (4954875487D004)

Например: 3086753

1

3086753

CYLINDER

2

3084138

STUD

3

3084731

Joint culasse

4

3086755

HEAD CYLINDER

5

7555998

WASHER FLAT

6

3083767

Vis de vidange d'huile

7

3082910

NUT-FLANGE

8

3083452

PIPE WATER

9

3087199

Nut

10

3080530

Rondelle (Lock)

11

3086757

Exhaust gasket

12

3085326

STUD

13

3086746

PIPE-1,ELBOW

14

3082911

NUT-FLANGE.

15

3083137

BOLT-BANJO

16

7555998

WASHER FLAT

17

3085277

ADAPTER CARB.

18

3240064

VALVE REED

19

3240065

STOPPER

20

3084565

SCREW REED

21

3086760

GASKET-REED,VALVE Substituted by 3084148

22

3084147

VALVE ASM. REED

23

3240164

STUFFER,(REED VALVE ASM.)

24

3081497

Vis

25

3083590

Collier

26

3084144

BAND ASM.

27

3084877

Vis

28

3083894

VALVE CHECK

29

3084729

Joint d'embase cylindre

30

3083384

Collier

31

3080142

Rondelle

32

3084124

BOLT, FLANGE

33

3084118

STUD

34

3084119

STUD

35

3086740

ASM-CRANKCASE (Incl. 3,4,34,37,40,44-47,49-52,56)

36

3084123

BEARING BALL

37

3083453

PLUG

38

3082956

GASKET

39

3086748

GASKET-CASE 3

40

3084128

PIPE, BREATHER (Breather)

41

3086751

Vis

42

3086747

PIPE-2 ELBOW

43

3086752

BOLT-FLANGE Substituted by 3084435

44

3084120

SEAL OIL

45

3086750

"""PLUG"""

46

3083482

GASKET ALUMINUM

47

3086743

BOLT-FLANGE Substituted by 3084126

48

3086745

CRANKCASE 3 (Incl. 11,30,32,34,35,36,40,41)

49

3084134

Vis

50

3086838

Dowel pin

51

3084131

BEARING BALL

52

3084733

O-Ring

53

3086761

GAUGE-OIL

54

3086742

BOLT-FLANGE

55

3084775

BEARING BALL

56

3084121

BEARING BALL

57

3084725

SEAL OIL

58

3084205

ASM. SCREW & WASHER
