Главная Каталог товаров DUCATI EPC 1999 DUCATI Monster 750 Dark City DUCATI 1999 CLUTCH » CLUTCH

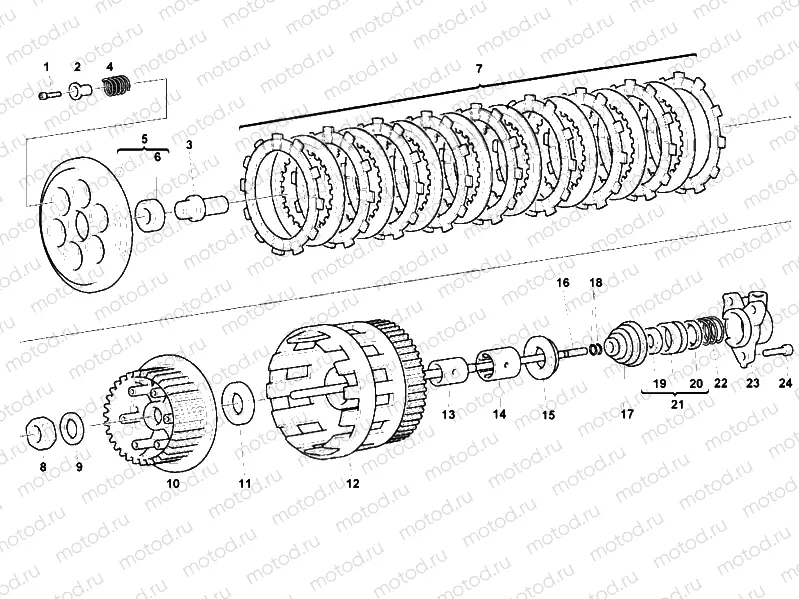

CLUTCH » CLUTCH

CLUTCH » CLUTCH
Например: 77150438B
1
77150438B
pc - Vis
2
84110241A
.RETAINER
3
81810101B
PIECE, CLUTCH PUSH
4
79912531A
pc - Clutch spring
5
19420161A
PLATE PRESSURE
6
70250081A
Roulement
7
19020092B
Jeu de disques d'embrayage
8
75010071A
Nut (M25x1,5)
9
85110041A
Rondelle (Lock)
10
19610163A
CLUTCH DRUM
11
85610141A
Rondelle (THRUST)
12
17020312A
PRIMARY DRIVEN GEAR COMP.
13
88110261A
.BEARING INNER RING
14
70250151A
Needle bearing
15
71311191A
Entretoise
16
11720051A
CLUTCH CONTROL ROD
17
67210061A
pc - .ROD GUARD COVER
18
88641731A
O-Ring
19
937850822
Joint
20
93040091A
.OIL SEAL
21
19590023B
PISTON ASSEMBLY
22
79910121A
Spring
23
23610104A
CLUTCH CONTROL CYLINDER
24
77150658B
Vis
