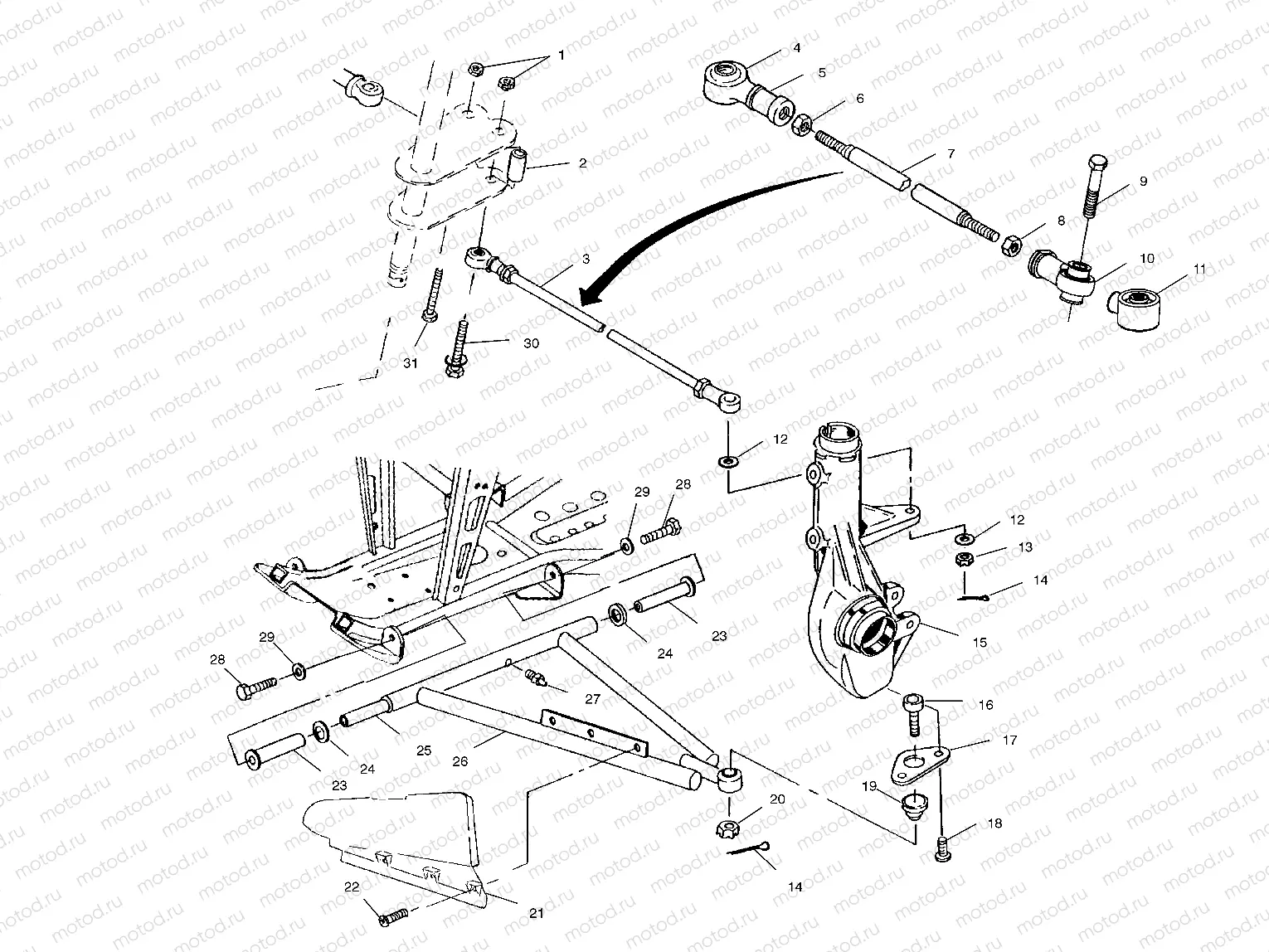

Главная Каталог товаров Polaris EPC 2000 Polaris ATV Polaris 2000 SPORTSMAN 335 (A00CH33AE) Polaris 2000 ATV A-ARM/STRUT MOUNTING - A00CH33AC (4959905990C003) | A-ARM/STRUT MOUNTING - A00CH33AC (4959905990C003)

A-ARM/STRUT MOUNTING - A00CH33AC (4959905990C003) | A-ARM/STRUT MOUNTING - A00CH33AC (4959905990C003)

A-ARM/STRUT MOUNTING - A00CH33AC (4959905990C003) | A-ARM/STRUT MOUNTING - A00CH33AC (4959905990C003)

Например: 7542403

1

7542403

NUT LOCK

2

5333367

BUSHING

3

1822852

ASM-TIE ROD 1/2-20X13.4

4

5412928

BOOT-SEAL ROD END 1/2 IN

5

7061139

ROD-END 3/8 1/2-20RH 44DEG

6

7542711

NUT-JAM

7

5020926

ROD TIE

8

7547028

NUT JAM LH

9

7517909

BOLT-M10X1.25X65 HX WASH HD

10

7061138

ROD-END 10MM 1/2-20LH 42 DEG

11

5412929

BOOT-SEAL ROD END 10MM

12

7556099

WASHER

13

7546904

NUT CASTLE

14

7661203

PIN COTTER

15

LR--

CALIPER, BRAKE, RH

16

7061158

BALL-JOINT GREASELESS STRUT

17

5211121

BRKT BALL JOINT

18

7512284

BOLT SOCKET

19

5412658

BOOT-BALLJOINT GREASELESS STRT

20

7542438

NUT CASTLE

21

5431837

SHIELD LH.CV BLK.

21

5431838

SHIELD RH.CV BLK.

22

7512084

Vis

23

5436973

BUSHING-A-ARM LONG 102.36MM(10

24

5020677

BUSHING A-ARM SPACER

25

5133806

SHAFT-A-ARM

26

2202280

KIT-A-FRAME LH(1541868)

26

2202281

KIT-A-FRAME RH(1541869)

27

7080433

FITTING LUBRICATION THREADED(1

28

7512492

Vis

29

7552603

Rondelle (Lock)

30

7517527

Vis

31

7515415

Vis
