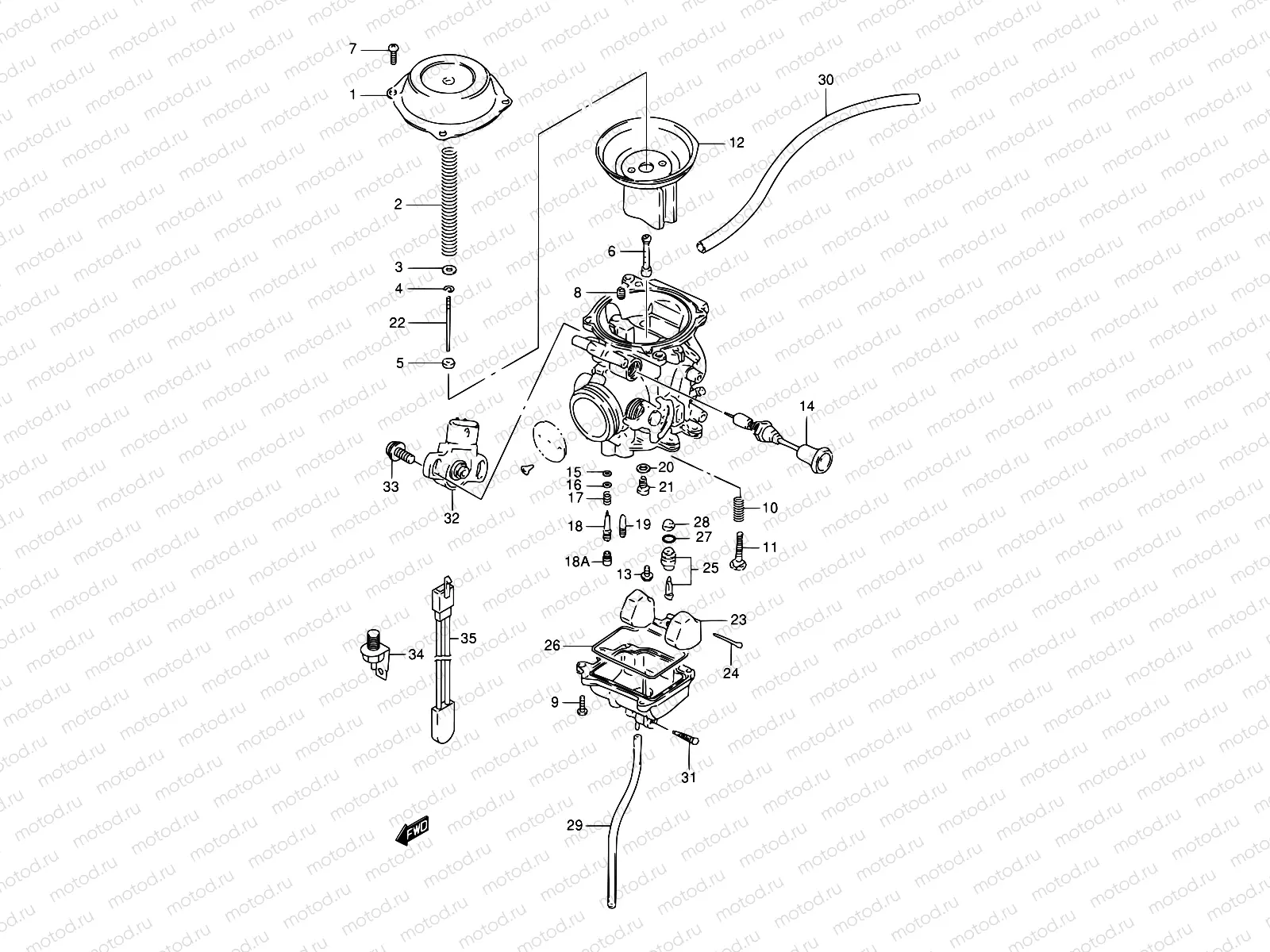

9A - CARBURETOR (MODEL V/W/X/Y)

9A - CARBURETOR (MODEL V/W/X/Y)
Например: 13200-44AF0
0
13200-44AF0
Карбюратор
63 954 ₽/шт
0
13200-44AN0
Carburettor
0
13200-44AM0
Carburettor
0
13200-44AG0
Carburetor dr12
0
13200-44AH0
Carburettor
1
13502-42A00
COVER,DIAPHRAGM
1 975 ₽/шт
2
13417-42A00
Пружина
595 ₽/шт
3
13382-42A00
RING
187 ₽/шт
4
13394-40D20
E RING
282 ₽/шт
5
13387-47010
RING
323 ₽/шт
6
09494-00908
Jet,needle
7
02112-0408B
Болт
940 ₽/шт
8
09493-30003
Жиклерпроводник воздуха
1 552 ₽/шт
8
09493-35001
.jet, air (175)
9
02112-0412A
Болт
85 ₽/шт
10
13268-37420
Пружина
289 ₽/шт
11
13267-25D00
Регулятор
708 ₽/шт
12
13500-28A00
Diaphragm assy
13
13602-43410
Болт
172 ₽/шт
14
13411-44AF0
PLUNGER ASSY
3 421 ₽/шт
15
13295-29901
O-Ring, Pilot Air Screw
210 ₽/шт
16
13291-29900
Шайба
162 ₽/шт
17
13268-47070
Пружина
272 ₽/шт
18
13279-47070
Винт топливный
884 ₽/шт
18
13281-05A00
PLUG
170 ₽/шт
19
09492-22016
Жиклер (40)
1 220 ₽/шт
20
13382-03110
Шайба
178 ₽/шт
21
09491-22016
JET,MAIN(110)
1 148 ₽/шт
21
09491-22015
JET,MAIN(112.5)
790 ₽/шт
22
13383-42A00
Жиклер
1 207 ₽/шт
23
13250-42A00
Поплавок
2 190 ₽/шт
24
13254-92311
PIN,FLOAT
162 ₽/шт
25
13370-44500
Запорная игла поплавковой камеры
3 655 ₽/шт
26
13251-42A00
Прокладка поплавковой камеры
629 ₽/шт
27
13374-35C00
КОЛЬЦО УПЛОТНИТЕЛЬНОЕ
275 ₽/шт
28
13376-19F00
Фильтр-сеточка
581 ₽/шт
29
13684-40A00
HOSE(3X5X650)
731 ₽/шт
30
09352-50005-600
ШЛАНГ
436 ₽/шт
31
13247-02340
Заглушка дренажная
258 ₽/шт
32
13550-13D61
Sensor Assy,throttle
10 710 ₽/шт
33
13605-20C00
Болт
204 ₽/шт
34
13650-34F00
Sensor,water te
35
13655-16F00
THERMO SWITCH,CARB HEATER
3 343 ₽/шт
