Главная Каталог товаров SUZUKI EPC 125 cm³ - 349 cm³ SUZUKI DR 125 SUZUKI DR125SE W SUZUKI (VIN: JS1SF44A) 24 - WIRING HARNESS

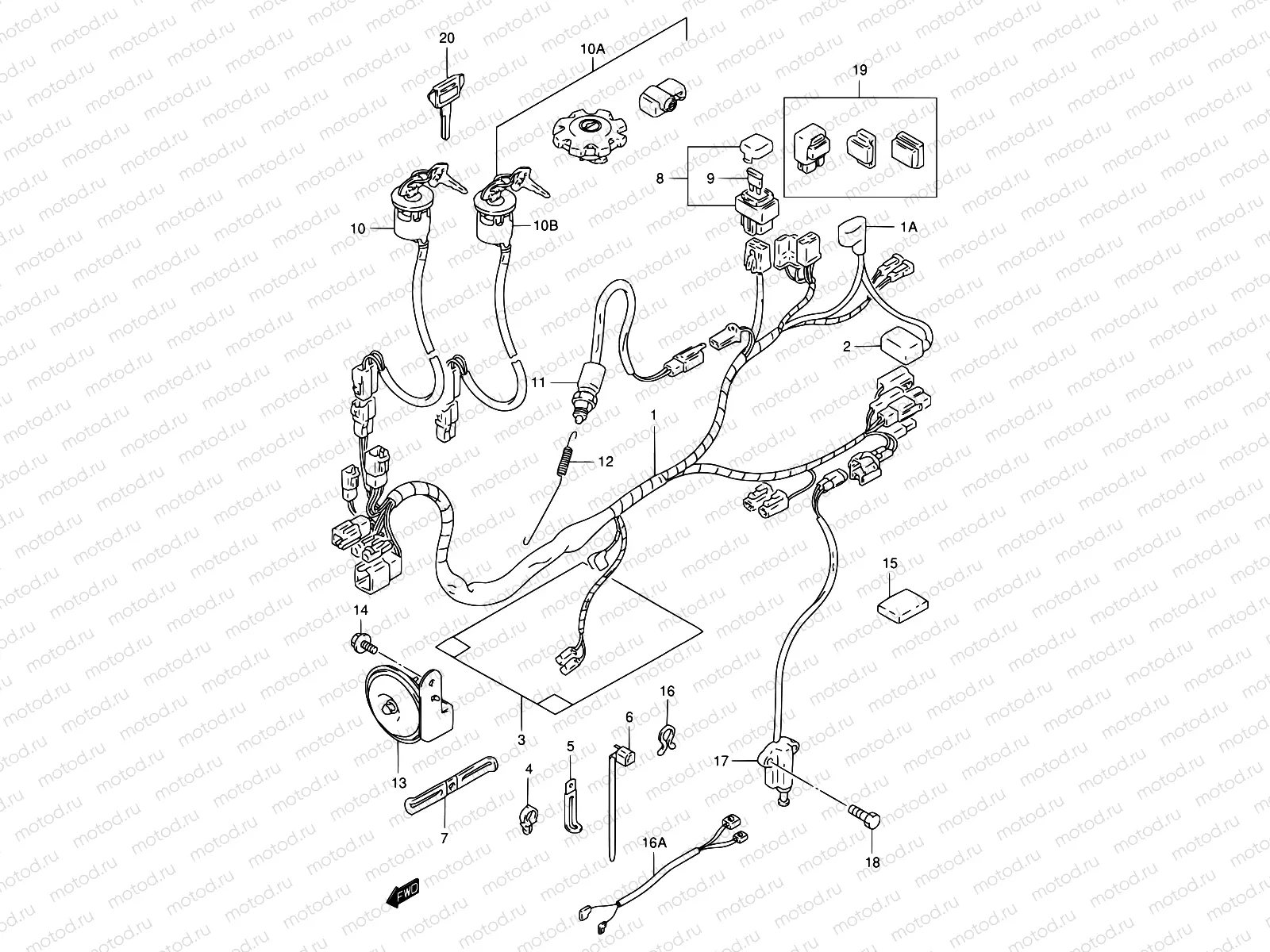

24 - WIRING HARNESS

24 - WIRING HARNESS
Например: 36610-42A01
1
36610-42A01
Harness, wiring
1
36610-42A50
Проводка
32 649 ₽/шт
1
36610-42AA1
Harness, wiring
1
31861-10D00
CAP,STARTER RELAY
446 ₽/шт
2
33624-10D00
CAP,BATTERY PLUS
328 ₽/шт
3
36618-15D21
Cover,wiring Harness
969 ₽/шт
4
09403-12404
CLAMP
980 ₽/шт
5
09404-06036
Clamp(L:80)
194 ₽/шт
5
09404-06039
Clamp(L:65)
194 ₽/шт
6
09407-14403
КЛЕММА
221 ₽/шт
6
09407-18402
Струбцина (L:165)
211 ₽/шт
6
09407-25402
CLAMP(L:250)
238 ₽/шт
6
09407-25401
Хомут
221 ₽/шт
7
36651-05301
Струбцина проводки
254 ₽/шт
8
36740-24B01
OX ASSY,FUSE
1 462 ₽/шт
9
09481-10020-025
Fusible (20A)
10
37000-44841
LOCK SET
23 460 ₽/шт
10
37110-44A20
Замок зажигания
12 709 ₽/шт
11
37740-45D00
SWITCH ASSY,STOP LAMP
1 224 ₽/шт
12
09443-06064
Пружина
2 540 ₽/шт
13
38500-44B00
Звуковой сигнал
4 457 ₽/шт
14
01550-0612B
БОЛТ
81 ₽/шт
15
36920-14D00
PROTECTOR,WIRING HARNESS
387 ₽/шт
16
09408-00012
Проводка
1 210 ₽/шт
16
36853-26F00
WIRE,CARB HEATER
1 263 ₽/шт
17
37840-44X51
Switch Assy,side Stand
6 334 ₽/шт
18
01550-0620B
БОЛТ
81 ₽/шт
19
38740-24X50
RELAY ASSY, HEAD LAMP
2 665 ₽/шт
20
37146-03A00
ЗАГОТОВКА КЛЮЧА (TYPE:C)
935 ₽/шт
20
37146-03A10
KEY,BLANK(TYPE:D)
888 ₽/шт
20
37146-03A20
KEY,BLANK(TYPE:E)
935 ₽/шт
20
37146-03A30
KEY,BLANK(TYPE:F)
626 ₽/шт
