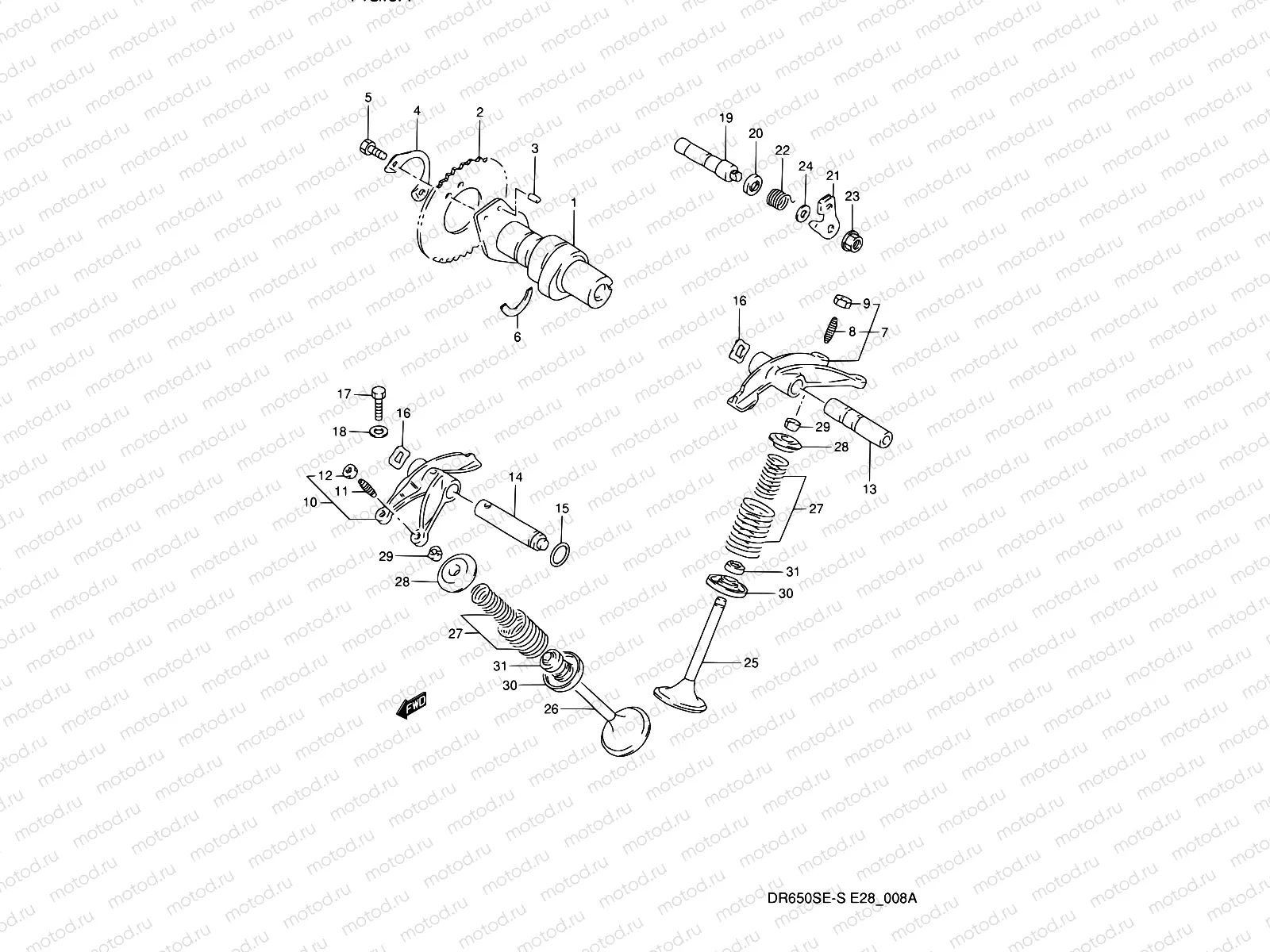

8A - CAM SHAFT - VALVE (MODEL R/S)

8A - CAM SHAFT - VALVE (MODEL R/S)
Например: 12711-12D00
1
12711-12D00
CAMSHAFT
43 458 ₽/шт
2
12741-37400
Звезда коленвала
2 805 ₽/шт
3
04221-05109
ШПОНКА РАСПРЕДВАЛА
85 ₽/шт
4
12747-44001
Шайба
258 ₽/шт
5
09111-06027
BOLT(6X12.5)
900 ₽/шт
6
09390-25003
C RING
210 ₽/шт
7
12840-12D00
Рычаг клапана
9 071 ₽/шт
8
12842-32411
Винт
510 ₽/шт
9
12843-32400
Гайка
170 ₽/шт
10
12850-37401
ARM,VALVE ROCKER EXHAUST
9 071 ₽/шт
11
12842-32411
Винт
510 ₽/шт
12
12843-32400
Гайка
170 ₽/шт
13
12861-12D00
SHAFT,VALVE ROCKER ARM INTAKE
1 458 ₽/шт
14
12871-14A00
SHAFT,EXHAUST VALVE ROCKER ARM
1 458 ₽/шт
15
09280-09005
КОЛЬЦО УПЛОТНИТЕЛЬНОЕ (D:1.9,ID:8.6)
170 ₽/шт
16
09164-12018
Шайба
102 ₽/шт
17
01550-0630A
БОЛТ
102 ₽/шт
18
09168-06023
ПРОКЛАДКА
162 ₽/шт
19
12941-12D10
Shaft,decomp
20
09282-10014
Сальник
485 ₽/шт
21
12942-12D11
Lever,decomp sh
22
09448-17029-XC0
Пружина
576 ₽/шт
23
08316-1008B
Гайка
81 ₽/шт
24
09160-08074
Шайба
215 ₽/шт
25
12911-12D00
Клапан впуска
9 095 ₽/шт
26
12912-37400
Клапан, выпуска
5 709 ₽/шт
27
12920-37402
SPRING SET,VALVE
899 ₽/шт
28
12931-45001
RETAINER,VALVE SPRING
422 ₽/шт
29
12932-45010
Сухарь
170 ₽/шт
30
12933-37401
Seat,valve Spring
352 ₽/шт
31
09289-07002
Маслосъемный колпачок
791 ₽/шт
