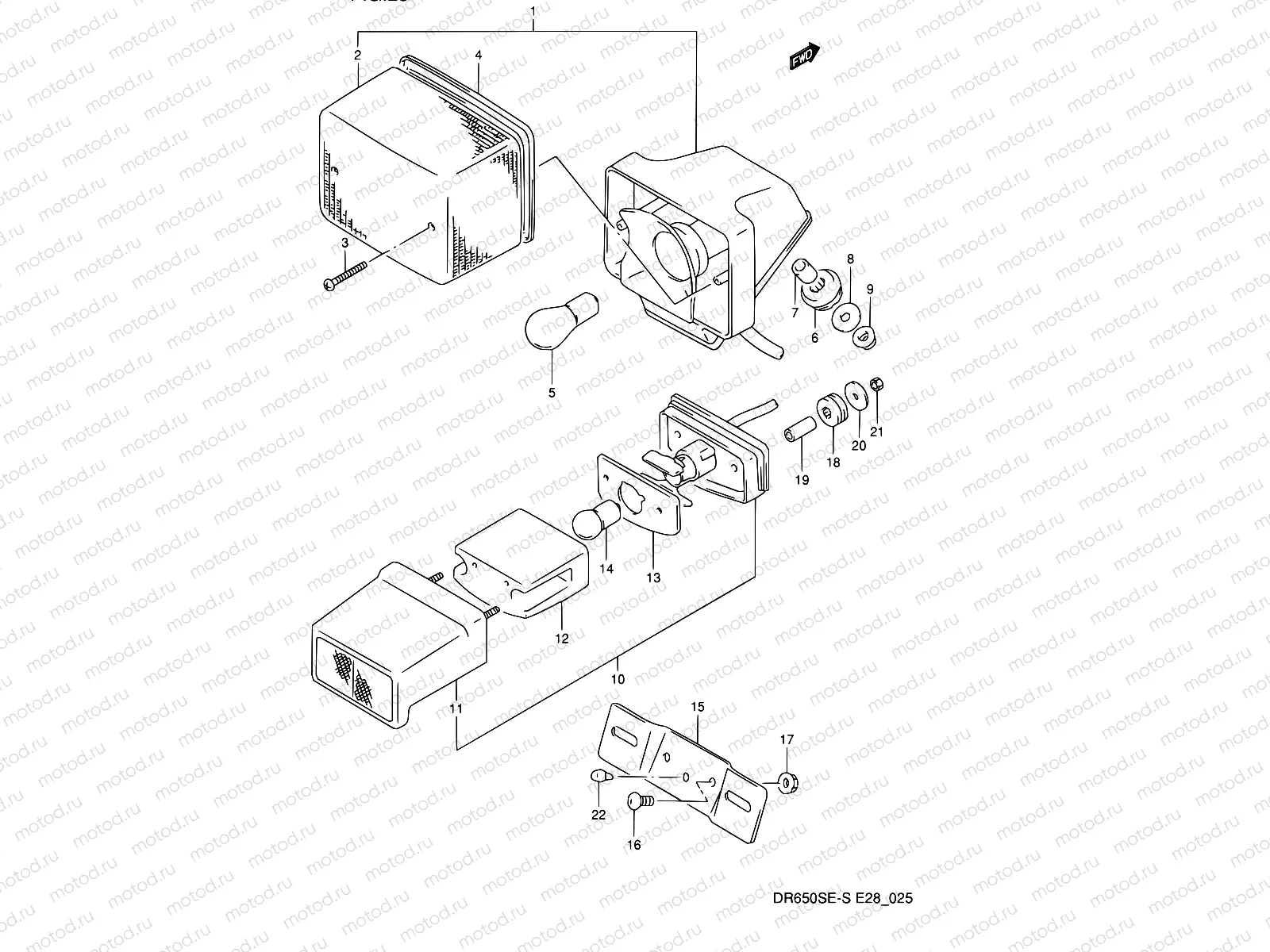

25 - TAIL LAMP

25 - TAIL LAMP
Например: 35710-14D30
1
35710-14D30
LAMP ASSY,RR COMBINATION
24 820 ₽/шт
2
35712-14D30
LENS
5 929 ₽/шт
3
09125-04501
SCREW(4X45)
1 840 ₽/шт
4
35713-14D30
Прокладка
407 ₽/шт
5
40503-00838-069
P21/5w,5w, bay1 (12V 21/5W BAY15d)
6
09320-09028
Damper
7
09180-06283
Кольцо/шайба
162 ₽/шт
8
09160-06088
ШАЙБА
97 ₽/шт
9
08319-31067
Гайка
153 ₽/шт
10
35910-14D00
Lamp assy, license
11
35917-14D00
.reflector & cover
12
35912-38A30
Линза
1 024 ₽/шт
13
35913-38A30
Прокладка
172 ₽/шт
14
09471-12140-LCP
Bulb
15
35927-14D30
Кронштейн
774 ₽/шт
16
02142-0616A
Болт
81 ₽/шт
17
08319-31067
Гайка
153 ₽/шт
18
09320-09009
РЕЗИНКА
187 ₽/шт
19
09180-05039
Spacer
20
09160-05501
Шайба (5.5X20X1.2)
81 ₽/шт
21
08310-0005B
Гайка
1 370 ₽/шт
22
09321-06030
CUSHION
188 ₽/шт
