Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI DL 1000 V-Strom SUZUKI DL1000A L4 V-Strom (E03,E28,E33) SUZUKI (VIN: JS1DD111) 84 - REAR MASTER CYLINDER

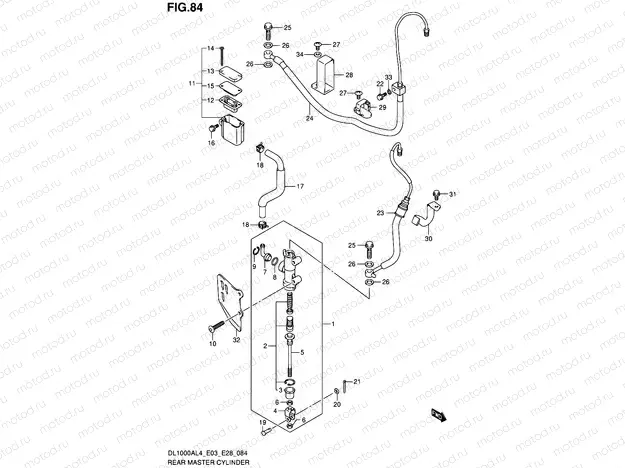

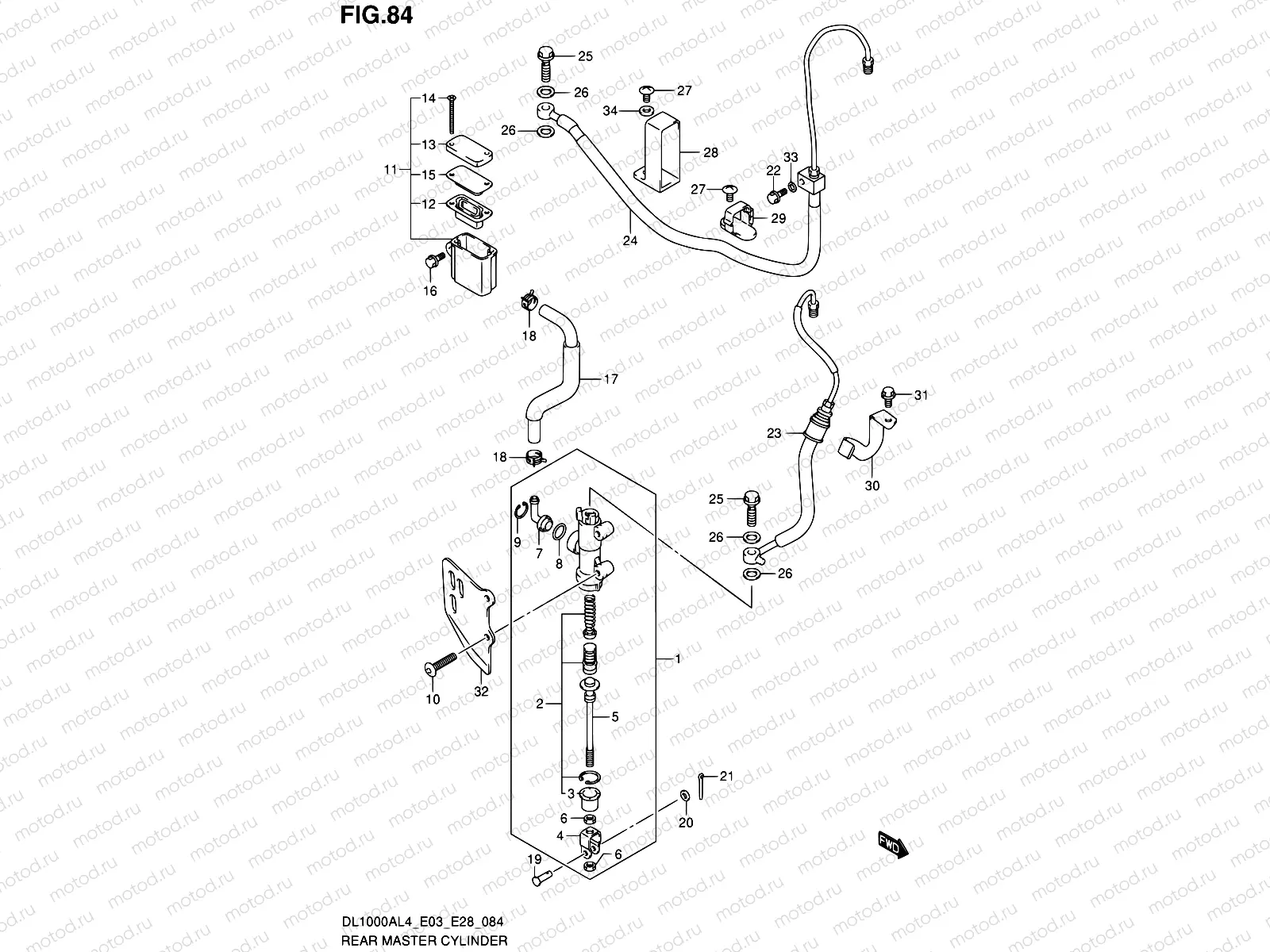

84 - REAR MASTER CYLINDER

84 - REAR MASTER CYLINDER

Например: 69600-31J00

1

69600-31J00

CYLINDER ASSY,REAR MASTER

13 685 ₽/шт

2

69600-34830

PISTON/CUP SET

1 924 ₽/шт

3

69691-00A00

Ботинок

275 ₽/шт

4

69692-44H00

Ботинок

845 ₽/шт

5

69670-31J00

ROD,PUSH

2 229 ₽/шт

6

69693-05A00

Гайка

162 ₽/шт

7

69672-00B20

Коннектор

816 ₽/шт

8

69686-34200

Кольцо уплотнительное

162 ₽/шт

9

69674-00B20

CIRCLIP

162 ₽/шт

10

09139-06029

Болт

178 ₽/шт

11

69740-18K00

TANK ASSY,RESERVOIR

4 684 ₽/шт

12

69667-01H00

ДИАФРАГМА БАЧКА ТОРМОЗНОЙ ЖИДКОСТИ

581 ₽/шт

13

69669-18K00

CAP

884 ₽/шт

14

69689-01H00

Болт

223 ₽/шт

15

69668-01H00

Пластина

297 ₽/шт

16

09111-06116

BOLT(6X16.5)

1 840 ₽/шт

17

69730-31J00

HOSE,RR RESERVOIR TANK

1 666 ₽/шт

18

09401-12404

Крепёж

162 ₽/шт

19

09200-06068

Вал ручки

226 ₽/шт

20

08322-0106A

Шайба

81 ₽/шт

21

04111-2015A

Штифт

81 ₽/шт

22

01547-0612A

БОЛТ

81 ₽/шт

23

69200-31J00

HOSE ASSY,RR MASTER TO UNIT

7 038 ₽/шт

24

69400-31J01

Hose

9 462 ₽/шт

25

09360-10062

Болт соединяющий

469 ₽/шт

26

09161-10009

Шайба

113 ₽/шт

27

02142-0616A

Болт

81 ₽/шт

28

69243-16G00

UIDE,RR BRAKE HOSE

1 028 ₽/шт

29

61196-44H00

GUIDE,RR BRAKE HOSE

321 ₽/шт

30

69261-31J00

CLAMP,RR BRAKE HOSE

504 ₽/шт

31

01547-0612A

БОЛТ

81 ₽/шт

32

69641-31J01

COVER,REAR MASTER CYLINDER

2 444 ₽/шт

33

69273-31J00

CUSHION,REAR BRAKE HOSE

152 ₽/шт

34

08322-0106A

Шайба

81 ₽/шт
