Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI DL 1000 V-Strom SUZUKI DL1000A L4 V-Strom (E03,E28,E33) SUZUKI (VIN: JS1DD111) 76 - FRONT CALIPER

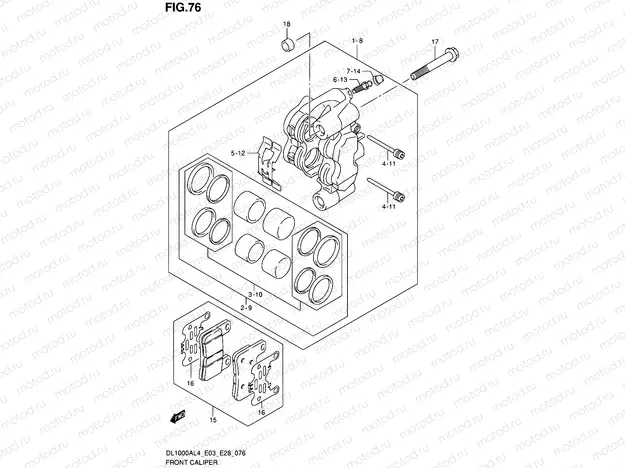

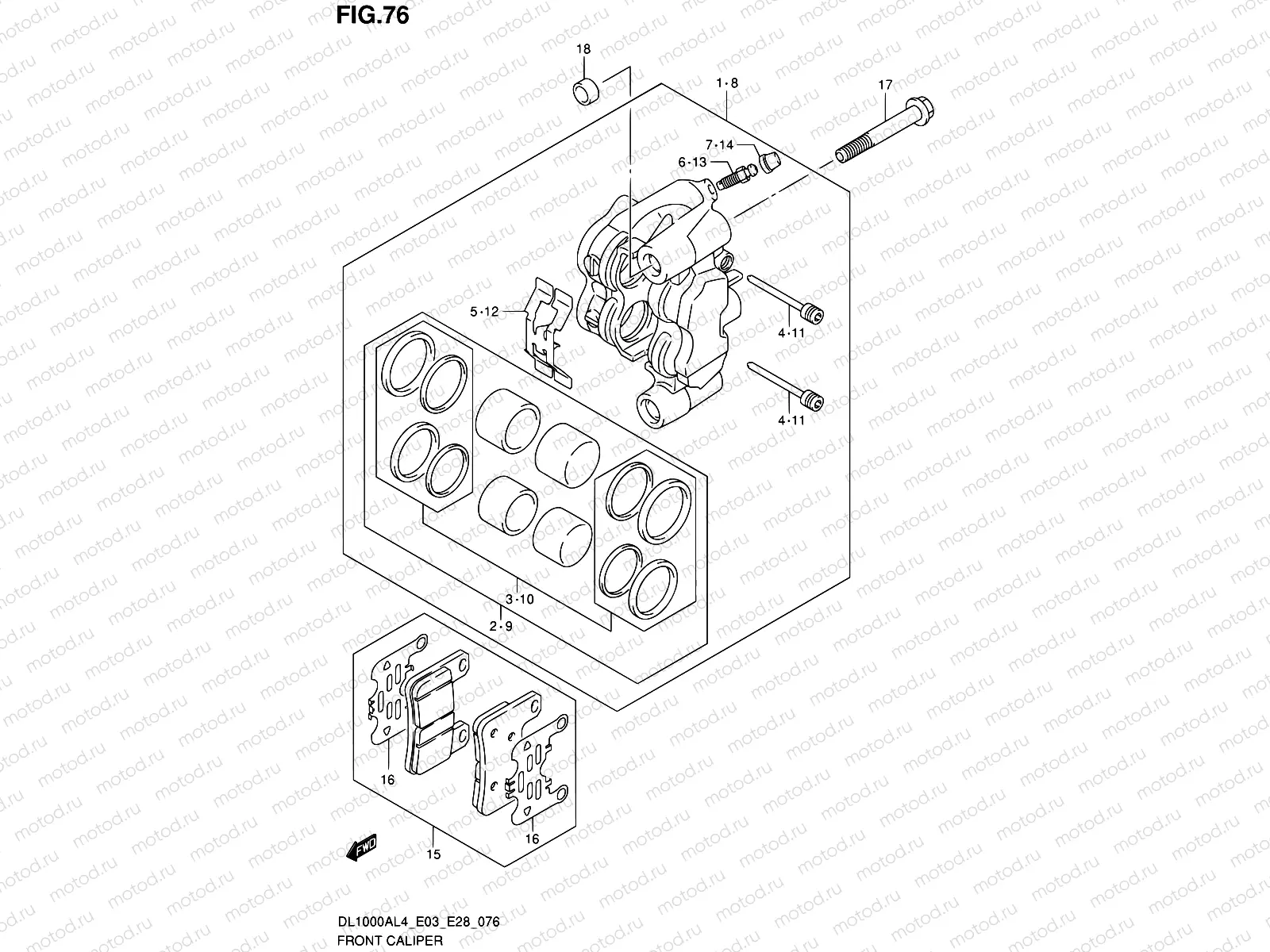

76 - FRONT CALIPER

76 - FRONT CALIPER

Например: 59100-31J00-999

1

59100-31J00-999

CALIPER ASSY,FR,R

35 386 ₽/шт

2

59100-31810

PISTON SET

8 133 ₽/шт

3

59101-47810

SEAL SET,PISTON

4 770 ₽/шт

4

59141-41G10

PIN

748 ₽/шт

5

59151-29G00

Пружина

867 ₽/шт

6

59121-18410

BLEEDER

759 ₽/шт

7

55156-66310

CAP,BLEEDER PLUG

221 ₽/шт

8

59300-31J00-999

CALIPER ASSY,FR,L

35 386 ₽/шт

9

59100-31810

PISTON SET

8 133 ₽/шт

10

59101-47810

SEAL SET,PISTON

4 770 ₽/шт

11

59141-41G10

PIN

748 ₽/шт

12

59151-29G00

Пружина

867 ₽/шт

13

59121-18410

BLEEDER

759 ₽/шт

14

55156-66310

CAP,BLEEDER PLUG

221 ₽/шт

15

59100-29860

PAD SET

5 904 ₽/шт

16

59171-31J00

SHIM

774 ₽/шт

17

09103-10392

BOLT(10X70)

308 ₽/шт

18

59151-41G00

PIN, CALIPER

735 ₽/шт
