Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI DR 350 SUZUKI DR350SE V SUZUKI (VIN: JS1SK42A) 8 - CAM SHAFT - VALVE

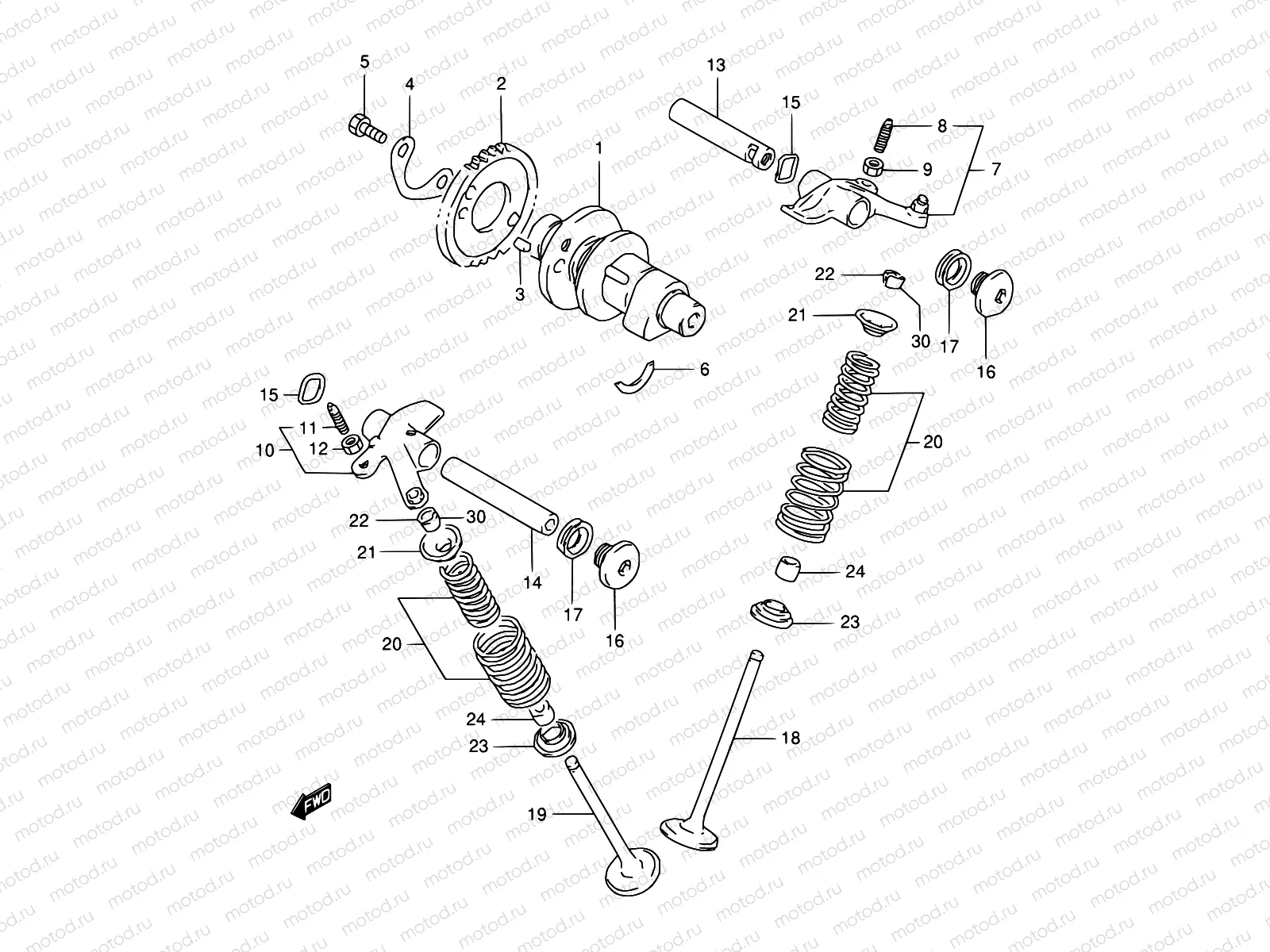

8 - CAM SHAFT - VALVE

8 - CAM SHAFT - VALVE
Например: 12710-14D70
1
12710-14D70
SHAFT,CAM
27 761 ₽/шт
2
12741-14D50
SPROCKET,CAMSHAFT
5 517 ₽/шт
3
09261-05005
ПАЛЕЦ РАСПРЕДВАЛА
81 ₽/шт
4
12747-44B00
Шайба
204 ₽/шт
5
09111-06032
BOLT(6X10.5)
1 250 ₽/шт
6
09390-22002
Кольцо стопорное
113 ₽/шт
7
12840-15G00
ARM,VALVE ROCKER INTAKE
6 256 ₽/шт
8
12842-17C50
Болт
1 099 ₽/шт
9
12843-27A00
Гайка
162 ₽/шт
10
12850-14D50
ARM,VALVE ROCKER EXHAUST
10 965 ₽/шт
11
12842-17C50
Болт
1 099 ₽/шт
12
12843-27A00
Гайка
162 ₽/шт
13
12861-14D50
ТОЛКАТЕЛЬ КЛАПАНА
1 603 ₽/шт
14
12871-14D50
ТОЛКАТЕЛЬ КЛАПАНА
1 462 ₽/шт
15
09164-12018
Шайба
102 ₽/шт
16
09248-14011
PLUG
226 ₽/шт
17
09168-14004
Прокладка
129 ₽/шт
18
12911-14D10
Клапан впуска
3 485 ₽/шт
19
12912-14D01
Клапан, выпуска
4 522 ₽/шт
20
12920-06B00
SPRING SET,VALVE
1 394 ₽/шт
21
12931-27A01
Стопор клапана
420 ₽/шт
22
12932-27A00
Сухарь
162 ₽/шт
23
12933-81400
Пружина
291 ₽/шт
24
09289-05011
Сальник
565 ₽/шт
