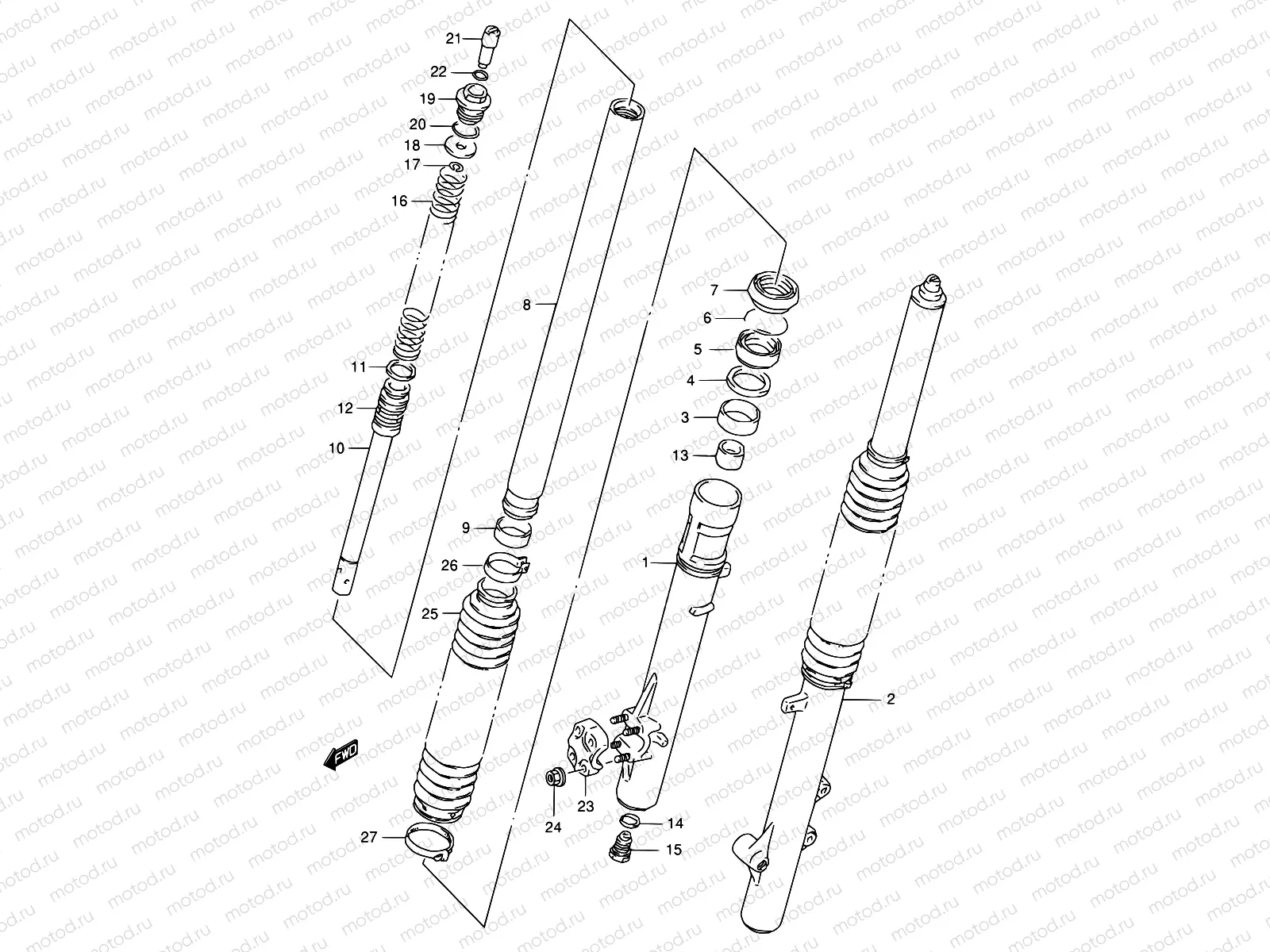

45A - FRONT DAMPER (MODEL V/W/X)

45A - FRONT DAMPER (MODEL V/W/X)
Например: 51103-14EA0
0
51103-14EA0
Damper assy, front fork rh
0
51104-14EA0
Damper assy, front fork lh
1
51130-14EA0
.tube, outer rh
2
51140-14EA0
.tube, outer lh
3
51152-29E00
Bush,guide
4
51168-17C00
SPACER,SEAL
505 ₽/шт
5
51153-14D00
Сальник
1 486 ₽/шт
6
51556-38B00
Кольцо
243 ₽/шт
7
51173-14D00
Уплотнение
1 534 ₽/шт
8
51110-14D40
TUBE,INNER
29 912 ₽/шт
9
51121-14D00
Bush,slide
10
51190-14D40
.rod, front damper
11
51196-14D00
RING,PISTON
287 ₽/шт
12
51177-14D00
Пружина
306 ₽/шт
13
51195-14D00
.piece, oil lock
14
51148-14D00
Прокладка
438 ₽/шт
15
51170-14D40
.bolt, pipce
16
51171-14D40
Spring,main
17
51788-11420
E RING
211 ₽/шт
18
51186-12C00
Пружина
272 ₽/шт
19
51189-14D00
BOLT,FORK
4 145 ₽/шт
20
51117-17C00
O RING
436 ₽/шт
21
51185-14D00
ADJUSTER,SPRING
3 578 ₽/шт
22
51187-14D00
O RING
239 ₽/шт
23
51132-15D40
HOLDER,AXLE
2 620 ₽/шт
24
51168-14D00
MOER,AS
25
51571-14D01-163
Boot
6 530 ₽/шт
26
51575-14D00
BAND,BOOT UPR
719 ₽/шт
27
51576-42AA0
BAND,BOOT LWR
669 ₽/шт
