Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI GSX 550 SUZUKI GSX550E F SUZUKI 76 - COWLING (GSX550EFH)

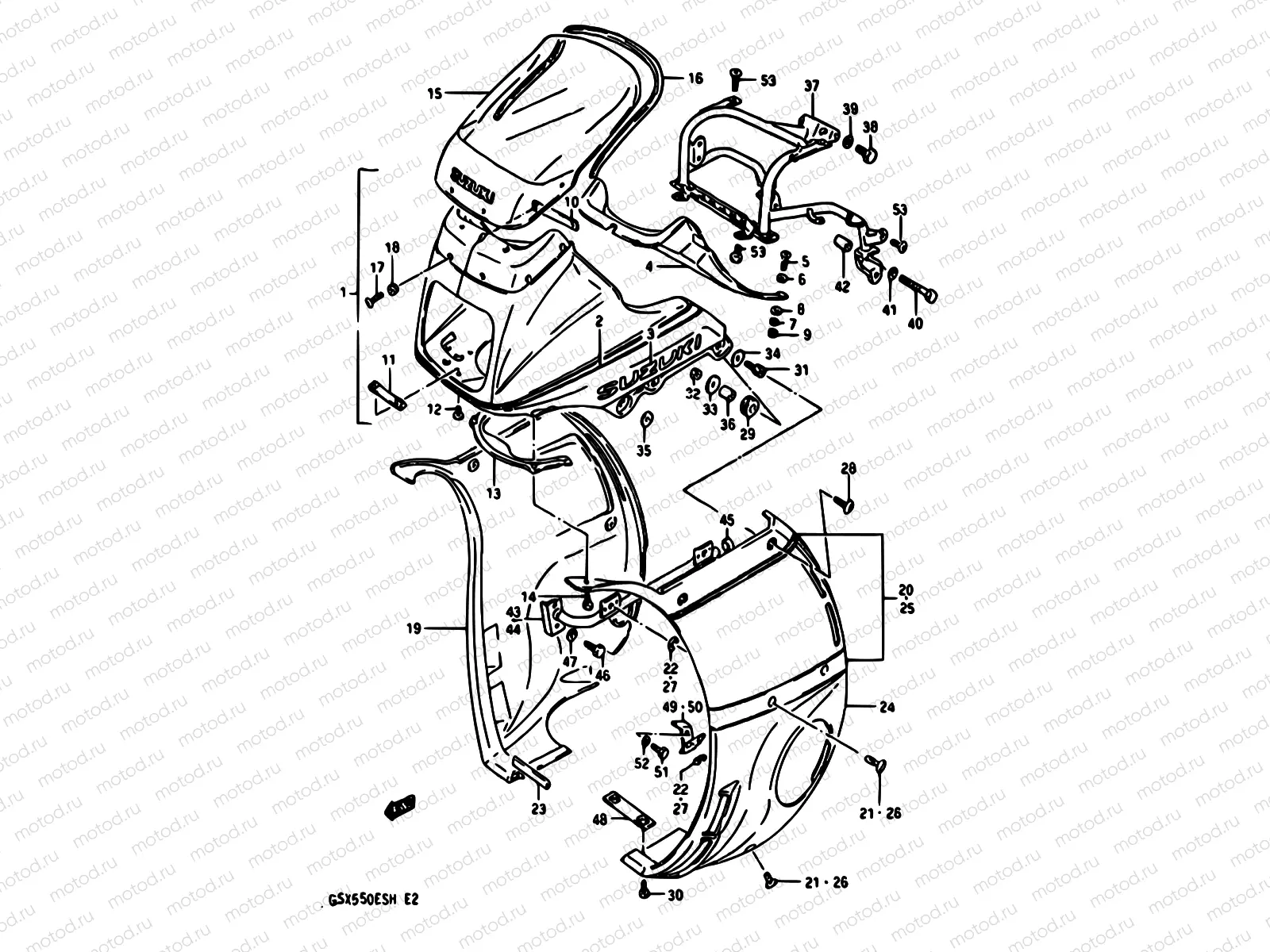

76 - COWLING (GSX550EFH)

76 - COWLING (GSX550EFH)

Например: 94700-43600-8ZP

1

94700-43600-8ZP

Cowling assy (white/red)

1

94700-43600-7JH

Cowling assy (white/blue)

2

68190-43460-7JF

.tape set

2

68190-43460-9AP

.tape set

3

68111-32B10-064

Emblem,fuel tan

4

94422-43400

.panel,upper

5

02142-0516B

Болт

85 ₽/шт

6

08322-0105B

Шайба

81 ₽/шт

7

08321-0105A

Пластина замка

81 ₽/шт

8

08322-0105B

Шайба

81 ₽/шт

9

08310-0005B

Гайка

1 370 ₽/шт

10

94416-43400

.brace,upper

11

94420-43400

.brace

12

02142-05127

Болт

85 ₽/шт

13

94480-43410

Cover,lower

14

02142-0516B

Болт

85 ₽/шт

15

94611-43431

Window

16

94631-49310

MOLD,COWLING

8 835 ₽/шт

16

94631-44110

MOLD,COWLING

4 845 ₽/шт

17

02142-0516B

Болт

85 ₽/шт

18

09320-05021

Cushion(5.5X11X4.5)

194 ₽/шт

19

94450-43450-7JH

Cover,rh (white/blue)

19

94430-43410

Cover,cowling

20

68680-43480-7JF

.tape set

20

68680-43480-9AP

.tape set

21

94491-43400

Fastener,cowl s

22

08332-1107A

СТОПОРНОЕ КОЛЬЦО

102 ₽/шт

23

94631-43450

.molding

24

94460-43450-7JH

Cover,lh (white/blue)

24

94460-43450-8ZP

Cover,lh (white/red)

25

68690-43480-7JF

.tape set

25

68690-43480-9AP

.tape set

26

94491-43400

Fastener,cowl s

27

08332-1107A

СТОПОРНОЕ КОЛЬЦО

102 ₽/шт

28

94439-43400

Screw

29

09320-08527

Cushion

1 640 ₽/шт

30

02142-06127

Винт 6X12

81 ₽/шт

31

94475-43400

Boss

32

08310-0006B

Гайка

81 ₽/шт

33

09160-06134

Шайба

102 ₽/шт

34

09160-06133

Шайба

1 520 ₽/шт

35

09160-06028

Шайба

102 ₽/шт

36

09180-06258

SPACER(6.5X9X6.7)

1 410 ₽/шт

37

94510-43400

Brace

38

01500-0816B

Болт

85 ₽/шт

39

08321-0108B

Пластина замка

81 ₽/шт

40

01500-08453

Болт

129 ₽/шт

41

08321-0108B

Пластина замка

81 ₽/шт

42

09180-08227

ВТУЛКА КРЕПЛЕНИЯ ГЛУШИТЕЛЯ

204 ₽/шт

43

94520-43400

Brace,rh

44

94560-43400

Brace,lh

45

09329-12004

Damper

46

01500-0612B

Болт

1 210 ₽/шт

47

08321-0106A

Шайба

81 ₽/шт

48

94570-43400

Brace,lower front

49

94580-43400

Brace,rh

50

94590-43400

BRACKET,COWL SI

51

01500-0612B

Болт

1 210 ₽/шт

52

08321-0106A

Шайба

81 ₽/шт

53

02142-06127

Винт 6X12

81 ₽/шт
