Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI GSX 550 SUZUKI GSX550E F SUZUKI 34 - FOOTREST

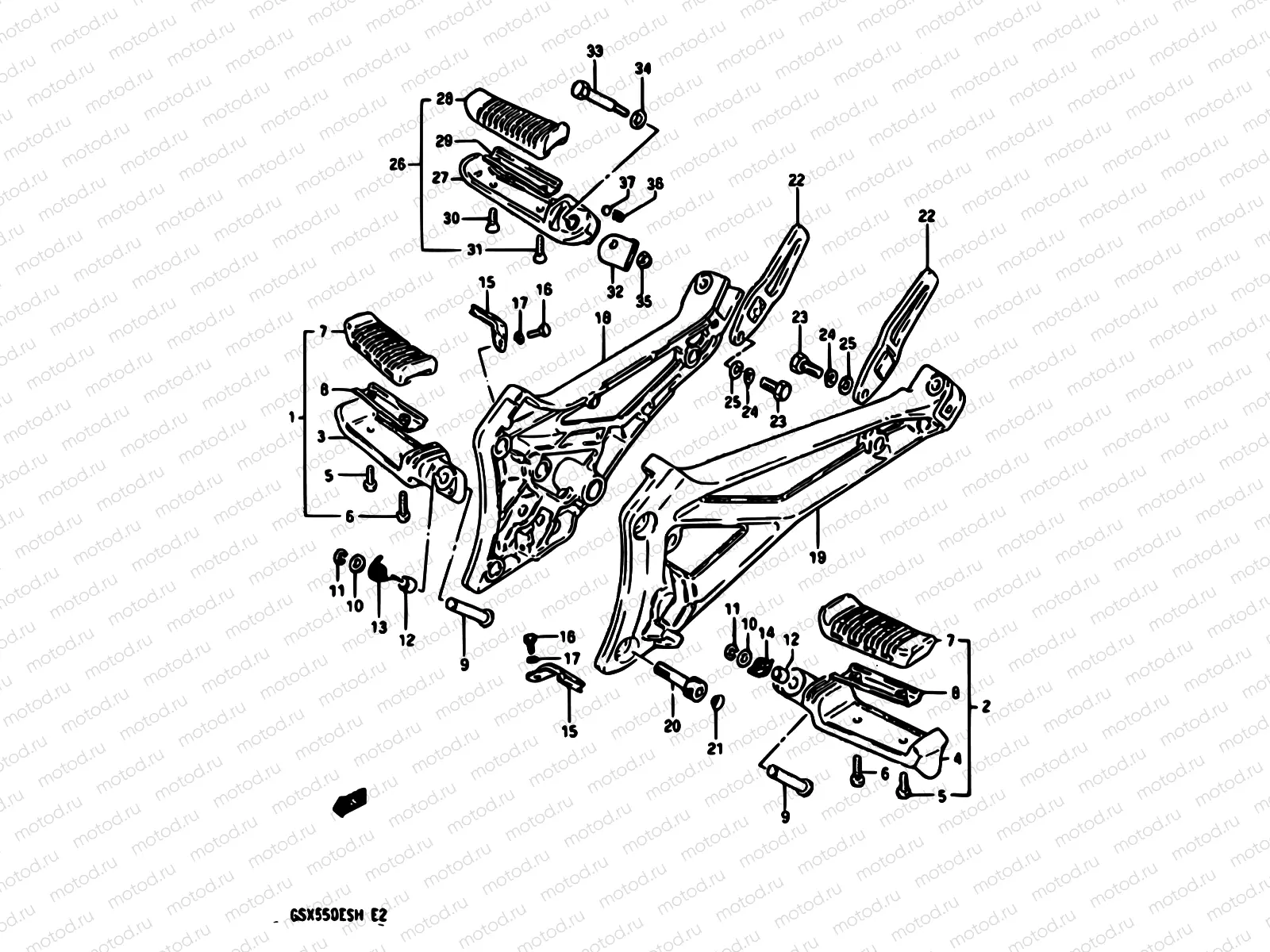

34 - FOOTREST

34 - FOOTREST

Например: 43510-48B51

1

43510-48B51

Repose pieds (Front, RH)

2

02112-05127

Болт

81 ₽/шт

3

02112-05127

Болт

81 ₽/шт

4

43520-48B51

ar, front footrest lh

5

02112-05127

Болт

81 ₽/шт

6

02112-05167

Болт

81 ₽/шт

7

43550-31300

RUBBER,FOOTREST

1 736 ₽/шт

8

43580-33301

Plate,fr footre

9

09208-08005

Pin

10

09181-08139

SHIM ( 8.8X14X1.0 )

162 ₽/шт

11

08332-1106B

СТОПОРНОЕ КОЛЬЦО

102 ₽/шт

12

09306-08013

Entretoise

13

09448-14030

Spring

14

09448-14031

Spring (LH)

15

43570-43400

Cushion,fr foot

16

01500-0510B

Болт

85 ₽/шт

17

08321-0105A

Пластина замка

81 ₽/шт

18

43810-43403

Bracket,muffler rh

19

43820-43403

Bracket,muffler lh

20

09106-10017

Bolt

21

43575-34500

CAP

170 ₽/шт

22

43671-31300

Foot guard,rear

23

01500-0816B

Болт

85 ₽/шт

24

08321-01087

Пластина замка

81 ₽/шт

25

08322-01087

Шайба

81 ₽/шт

26

43600-31300

FOOTREST ASSY,PILLION,R

3 324 ₽/шт

26

43700-31300

Footrest assy,pillion lh

27

43710-45501

.bar,pillion footrest lh

27

43610-45501

.bar,pillion footrest rh

28

43612-31300

Резина

864 ₽/шт

29

43632-45501

PLATE,RUBBER STOPPER

203 ₽/шт

30

02122-05127

Болт

1 090 ₽/шт

31

02122-05167

Болт

82 ₽/шт

32

43635-43400

PLATE,SPRING STOP,R

196 ₽/шт

32

43735-43400

PLATE,SPRING ST

33

09111-06035

Vis

34

08322-01087

Шайба

81 ₽/шт

35

08319-31067

Гайка

153 ₽/шт

36

09440-05028

Spring

37

06111-08003

Шарик стальной

82 ₽/шт
