Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI GSX-R 1000 SUZUKI GSX-R1000 K4 (E02,E19,E24,E37) SUZUKI (VIN: JS1BZ111, JS1BZ121) 7 - CRANKSHAFT

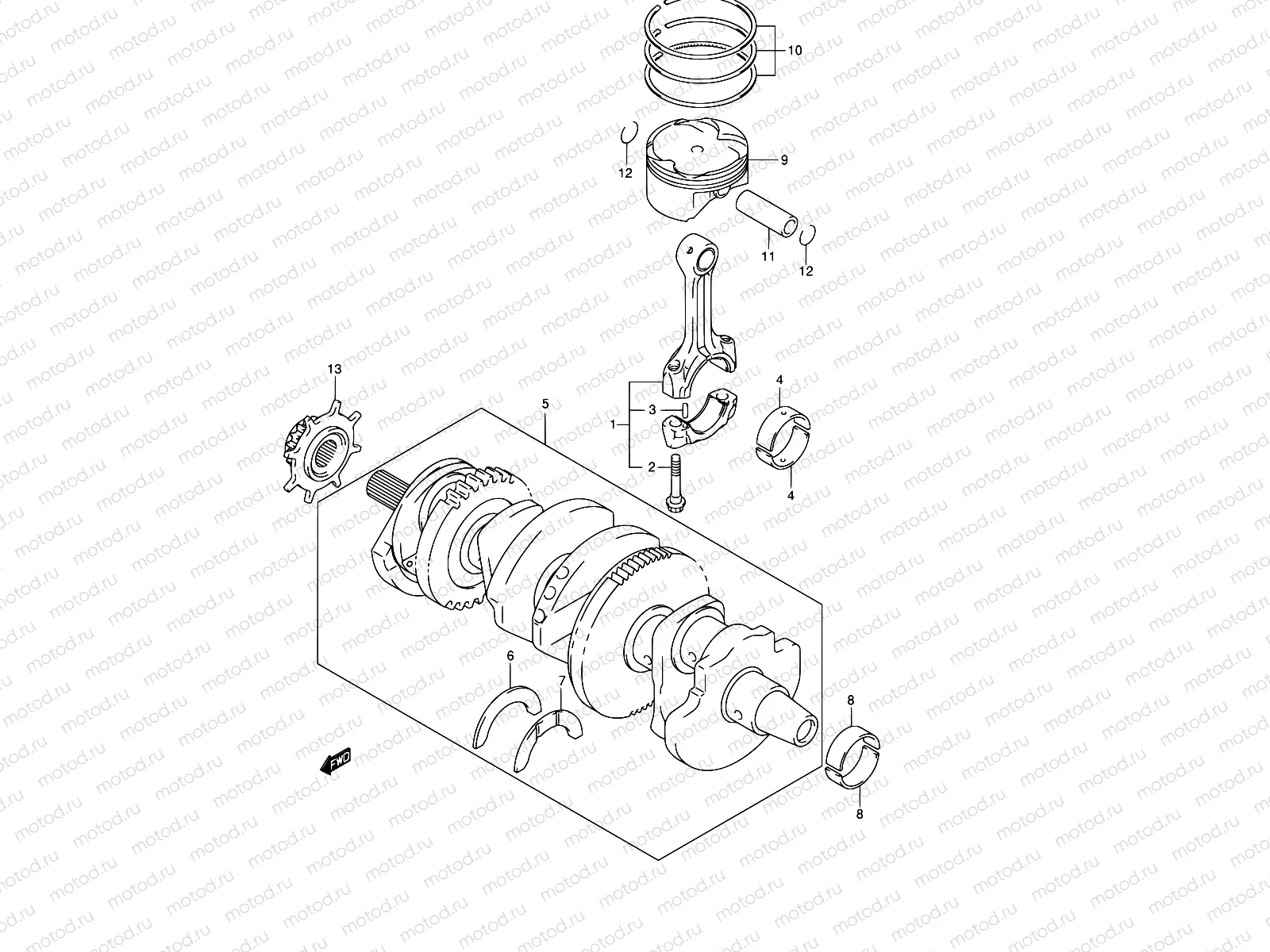

7 - CRANKSHAFT

7 - CRANKSHAFT

Например: 12160-40F00

1

12160-40F00

Шатун

16 305 ₽/шт

2

12163-24F00

BOLT

1 376 ₽/шт

3

12165-27A50

PIN, CONN ROD

90 ₽/шт

4

12164-40F00-0A0

BEARING,CRANK PIN

2 096 ₽/шт

4

12164-40F00-0B0

EARING, CRANK PIN

2 635 ₽/шт

4

12164-40F00-0C0

ВКЛАДЫШ КОЛЕНВАЛА

2 096 ₽/шт

4

12164-40F00-0D0

ПОДШИПНИК

2 096 ₽/шт

5

12000-40830

Crankshaft assy

6

12228-48B00-0E0

ARING,CRANK THRUST(GREEN)

565 ₽/шт

7

12228-48B00-0B0

ВКЛАДЫШ ОПОРНЫЙ КОЛЕНВАЛА

655 ₽/шт

7

12228-48B00-0C0

EARING,CRANK THRUST(RED)

595 ₽/шт

7

12228-48B00-0D0

EARING,CRANK THRUST(YELLOW)

595 ₽/шт

7

12228-48B00-0E0

ARING,CRANK THRUST(GREEN)

565 ₽/шт

7

12228-48B00-0F0

EARING,CRANK THRUST(BLUE)

590 ₽/шт

7

12228-48B00-0G0

EARING,CRANK THRUST(ORANGE)

590 ₽/шт

7

12228-48B00-0H0

ВКЛАДЫШ ОПОРНЫЙ КОЛЕНВАЛА

590 ₽/шт

8

12229-40F00-0A0

ПОДШИПНИК

1 498 ₽/шт

8

12229-40F00-0B0

Подшипник коленвала

2 584 ₽/шт

8

12229-40F00-0C0

Подшипник коленвала

2 584 ₽/шт

8

12229-40F00-0D0

BEARING,CRANKSHAFT

1 498 ₽/шт

9

12111-40F00-0F0

PISTON

16 305 ₽/шт

10

12140-40F00

Кольца поршневые

7 976 ₽/шт

11

12151-40F00

Палец поршня

1 263 ₽/шт

12

09381-16001

Стопорное кольцо

113 ₽/шт

13

12731-18G00

Sprocket,cam ch
