Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI GSX-R 1000 SUZUKI GSX-R1000 K4 (E02,E19,E24,E37) SUZUKI (VIN: JS1BZ111, JS1BZ121) 20 - RADIATOR HOSE

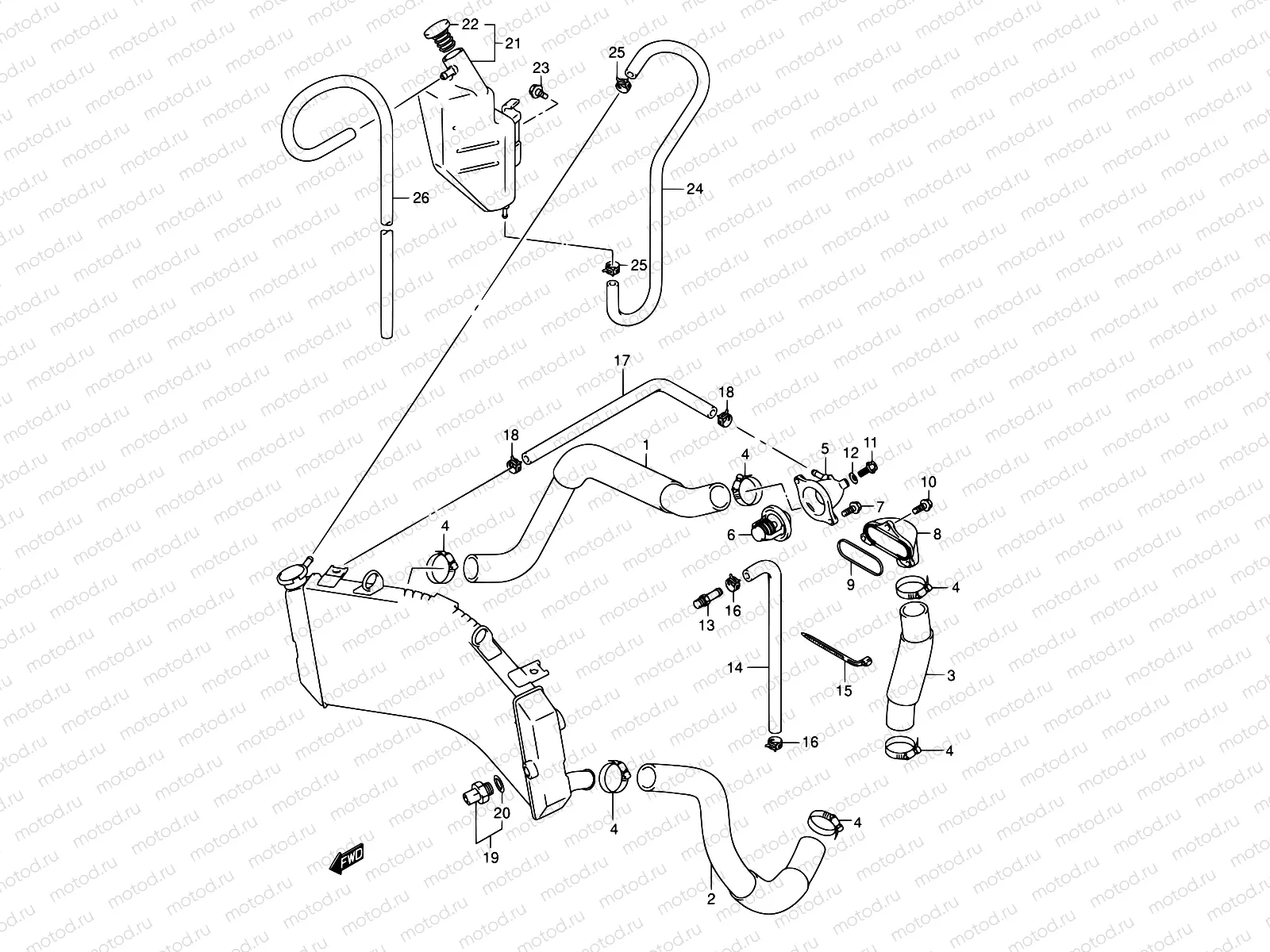

20 - RADIATOR HOSE

20 - RADIATOR HOSE

Например: 17851-40F00

1

17851-40F00

HOSE,RADIATOR INLET

4 066 ₽/шт

2

17852-40F10

HOSE,RADIATOR OUTLET

2 698 ₽/шт

3

17853-40F10

HOSE,CYLINDER INLET

1 478 ₽/шт

4

09402-38511

КОЛЬЦО

7 120 ₽/шт

5

17661-35F00

Крышка термостата

2 639 ₽/шт

6

17670-06G61

ТЕРМОСТАТ

3 400 ₽/шт

7

01547-0620B

БОЛТ

81 ₽/шт

8

17861-33E20

Коннектор

1 241 ₽/шт

9

17863-33E00

O-RING,CYL WATER CONNECTO

275 ₽/шт

10

01547-0620B

БОЛТ

81 ₽/шт

11

17568-50F00

Болт крышки термостата

221 ₽/шт

12

09168-06026

ШАЙБА ФОРСУНКИ

97 ₽/шт

13

09362-09011

Болт соединяющий

4 850 ₽/шт

14

17854-40F00

HOSE,WATER BYPASS

1 580 ₽/шт

15

09407-18402

Струбцина (L:165)

211 ₽/шт

16

09401-12414

CLIP

170 ₽/шт

17

09352-50111-600

ТРУБКА

1 341 ₽/шт

18

09401-10409

ХОМУТ МАЛЫЙ

119 ₽/шт

19

17680-33E01

Switch Comp,rdtr Fan

5 185 ₽/шт

20

17689-50F00

Кольцо уплотнительное

170 ₽/шт

21

17910-18G00

TANK ASSY,RESERVOIR

5 005 ₽/шт

22

17931-02FA0

КРЫШКА БАЧКА РАСШИРИТЕЛЬНОГО

630 ₽/шт

23

09111-06085

БОЛТ

255 ₽/шт

24

17981-18G00

HOSE,RESERVOIR TANK INLET

712 ₽/шт

25

09401-08413

Collier

26

17900-44810

HOSE SET,RESERVOIR TANK INLET

805 ₽/шт
