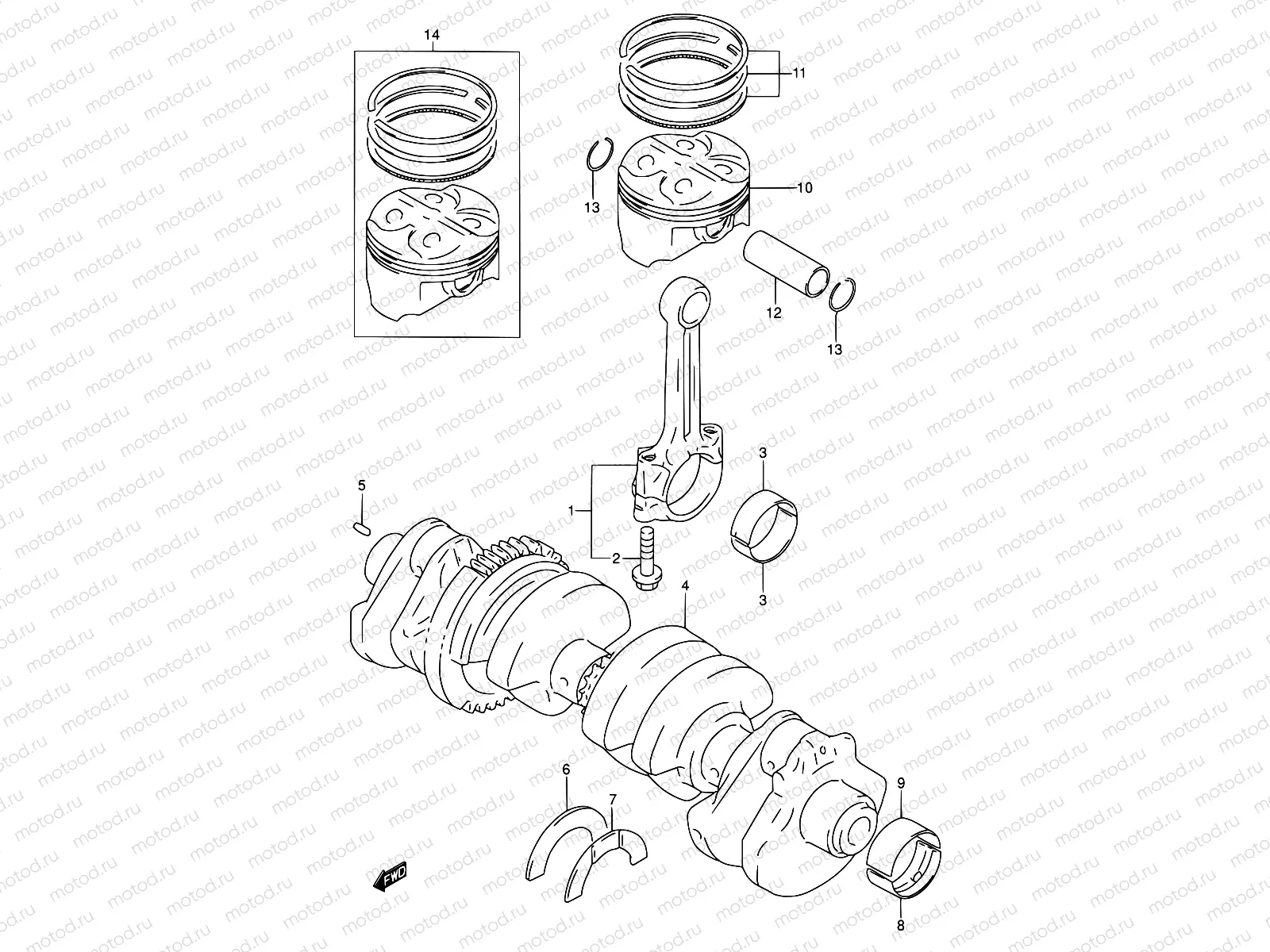

7 - CRANKSHAFT

7 - CRANKSHAFT

Например: 12160-18E02

1

12160-18E02

Connecting rod

2

12163-27A52

BOLT,CONNECTING ROD

2 502 ₽/шт

3

12164-18E00-0A0

Plane bearing - connecting rod (GREEN)

3

12164-18E00-0B0

ARING,CRANK PIN

2 166 ₽/шт

3

12164-18E00-0C0

Plane bearing - connecting rod (BROWN)

3

12164-18E00-0D0

Bearing, crank pin (yellow)

4

12000-18812

Crankshaft set

5

04221-04089

шпонка ведомой звездочки балансира

81 ₽/шт

6

12228-17E00-0D0

BEARING,CRANK THRUST(GREEN)

468 ₽/шт

7

12228-17E00-0A0

BEARING,CRANK THRUST(RED)

468 ₽/шт

7

12228-17E00-0B0

ARING,CRANK THRUST(BLACK)

468 ₽/шт

7

12228-17E00-0C0

BEARING,CRANK THRUST(BLUE)

468 ₽/шт

7

12228-17E00-0D0

BEARING,CRANK THRUST(GREEN)

468 ₽/шт

7

12228-17E00-0E0

BEARING,CRANK THRUST(YELLOW)

468 ₽/шт

7

12228-17E00-0F0

BEARING,CRANK THRUST(WHITE)

468 ₽/шт

8

12229-31E00-0A0

Bearing,cranksh (GREEN)

8

12229-31E00-0B0

ARING,CRANKSHAFT LWR

2 805 ₽/шт

8

12229-31E00-0C0

Bearing,cranksh (BROWN)

8

12229-17E00-0D0

Bearing c.shaft

9

12229-31E10-0A0

Bearing,cranksh (GREEN)

9

12229-31E10-0B0

ARING,CRANKSHAFT UPR

2 805 ₽/шт

9

12229-31E10-0C0

BEARING,CRANKSHAFT UPR

2 805 ₽/шт

9

12229-31E10-0D0

Bearing cranksh

10

12111-18E12-0F0

Piston

11

12140-18E10

Ring set,piston

12

12151-60D00

Палец поршня

1 309 ₽/шт

13

09381-16001

Стопорное кольцо

113 ₽/шт

14

12100-18E10-050

Piston kit (OS: 0.5)

14

12100-18E10-100

Piston kit (1,0)
